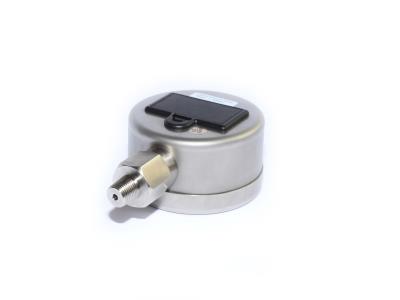

Digital Pressure Gauge
Inquire NowDescription
Introducing the Digital Pressure Gauge, a precision instrument designed for accurate pressure measurement in various applications. This versatile gauge allows you to switch between multiple pressure units—BAR, PSI, MPa, and Kgf/cm²—ensuring compatibility with different systems. With a high accuracy rating of 0.5% FS, it provides reliable readings that you can trust.
The gauge features a backlit display for easy reading in low-light conditions and includes a highest pressure record function along with zero clearing capability for added convenience. Constructed with durable materials, it is built to withstand challenging environments while maintaining long-term stability.
Specifications
| Feature | Details |
|---|---|
| Pressure Range | 0-10000 PSI / 700 BAR |
| Connection Thread | NPT1/4 male or BSP1/4 male |
| Display Unit | Bar, PSI, MPa, Kgf/cm² |
| Overload Capacity | 150% |
| Accuracy | 0.5% FS |
| Long-term Stability | 0.5% FS/year |
| Input Voltage | 3V (two 1.5V AAA batteries) |
| Working Temperature | -20°C to 70°C |
| Footer Material and Pressure Connection | 304 Stainless Steel |
| Protection Class | IP65 |
| Thickness | 46 mm (1.81 inch) |
| Outline Dimension | 80 mm (3.15 inch) |
| Length | 120 mm (4.72 inch) |
Additional Information
- Power Button: Press continuously for 3 seconds to turn on or off.
- Unit Button: Short press to change units; long press for maximum reading.
- ZERO Button: Press continuously for 3 seconds for zero clearing.
- LIGHT Button: Short press to toggle light on/off; will auto-off after 70 seconds.
Package Content:
- 1 x Digital Pressure Gauge
- 1 x Manual
