Description
The Dip Light Keel Roll Forming Machine is engineered for precision and efficiency in the manufacturing of light steel structures. This advanced machinery is designed to produce high-quality profiles with remarkable accuracy, making it an ideal choice for construction and building applications. Featuring a robust construction, this machine ensures durability and longevity while enhancing your production capabilities.

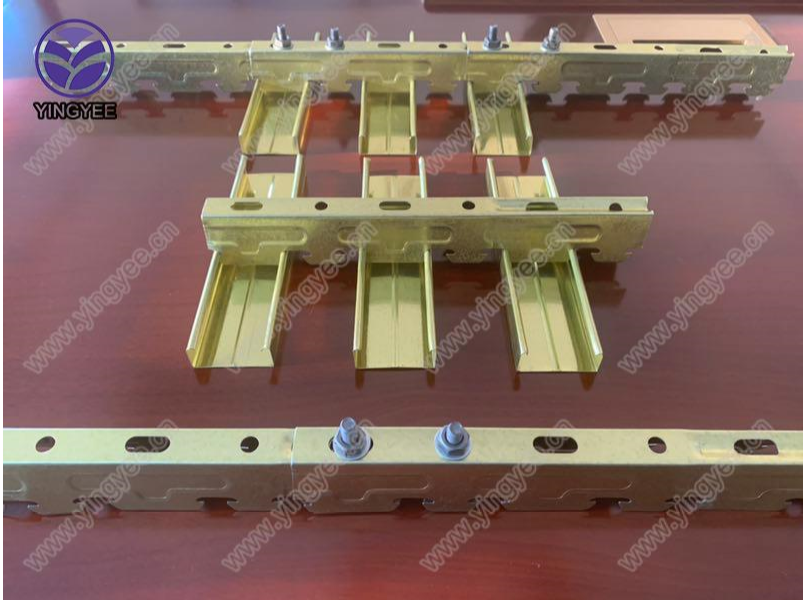

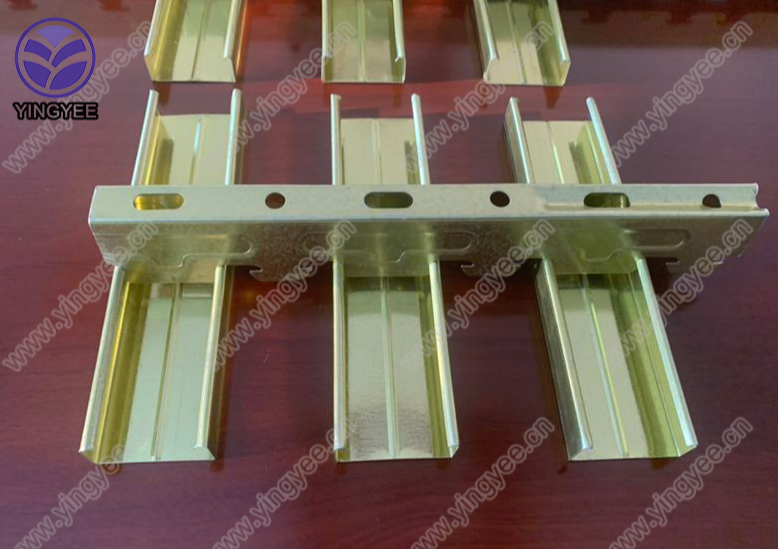

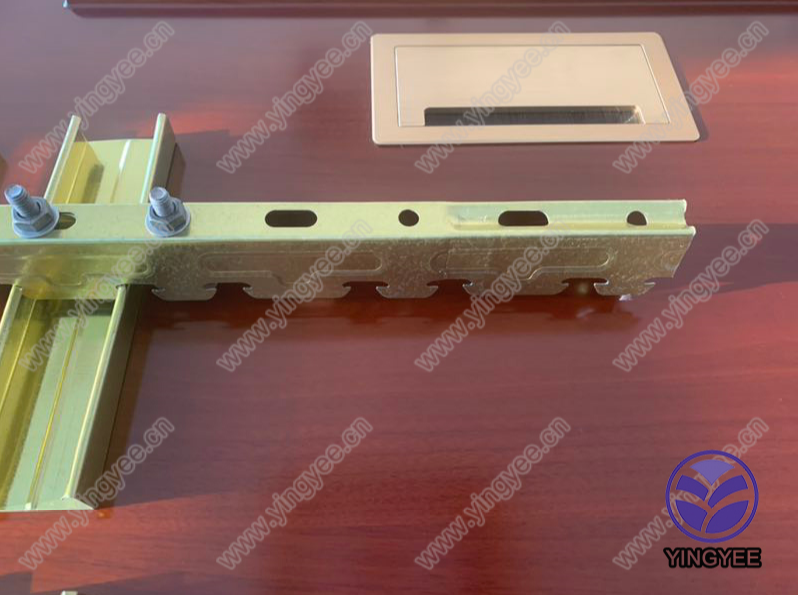

Final products:
 |
 |
 |

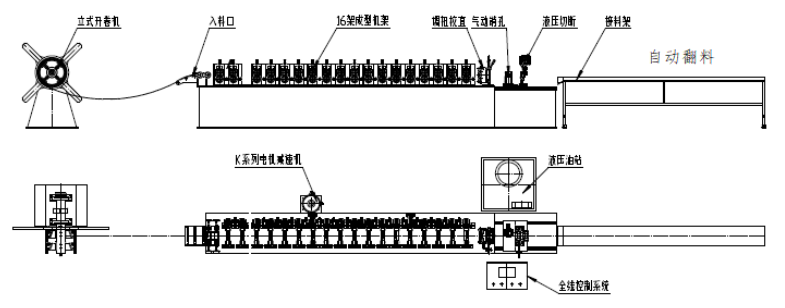

Technical process:
Specifications
| Component | Details |
|---|---|
| Manual Decoiler | 1 unit (Capacity: 3T) |
| Feeding System | Width adjustable |
| Main Forming Machine | 1 unit (Main Power: 5.5kw) |
| Cutter | 1 unit (No stop cutting) |
| Hydraulic Station | 1 unit with cooling fan |
| PLC | 1 unit |
| Automatic Collection Table | 1 unit |
| Wrench | Included |
Additional Information
Machine Parameters:
- Cutting System: Hydraulic cutting
- Cutting Material: Cr12
- Main Power of Cutter: 2.2kw
- Two sets of blades: Included
- Forming Station: 10-12 rollers
- Shaft Material and Diameter: 45# steel with chromed 50mm
- Roller Material: Cr12
