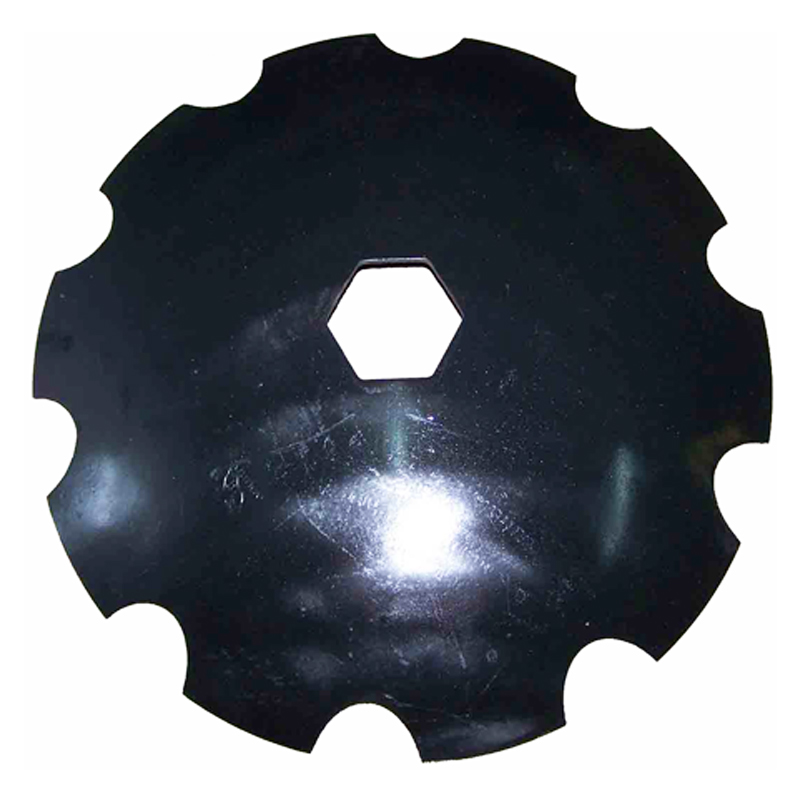

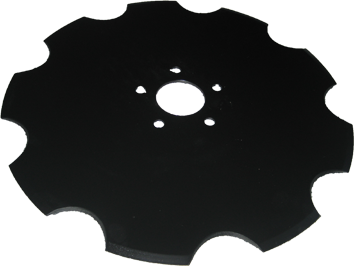

DISC BLADE
Inquire NowDescription
Introducing the Disc Blade from SHANDONG YUNTAI MACHINERY CO.LTD, a leading manufacturer specializing in the design and production of disc blades and spare parts. Our disc blades are crafted using 65Mn and Boron Steel, ensuring durability and longevity. With hardness ratings of HRC40-44 for 65Mn steel and HRC48-52 for Boron Steel, these blades are engineered to withstand rigorous agricultural tasks.

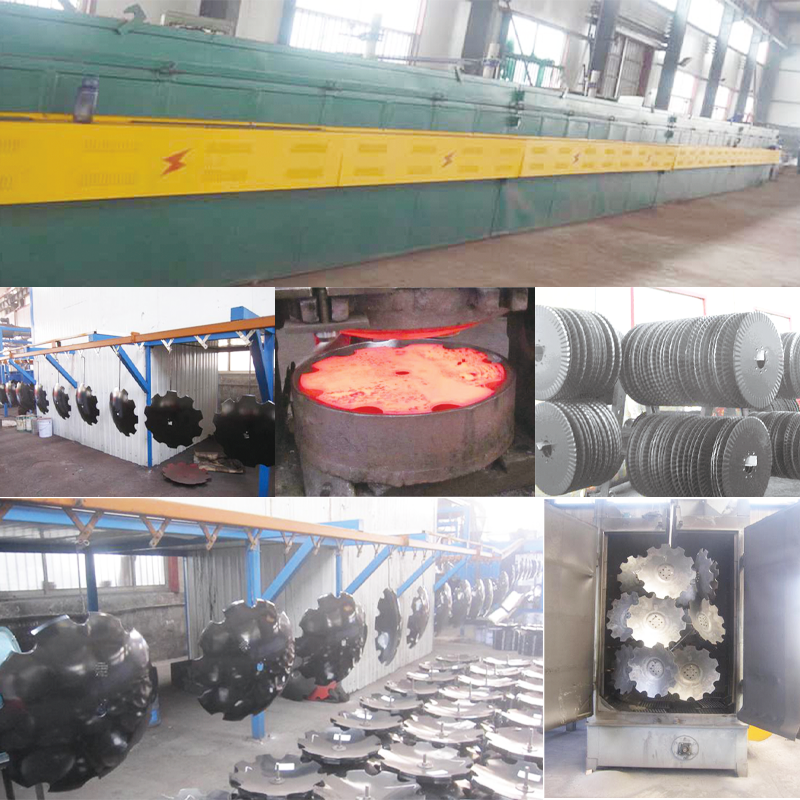

Yuntai boasts advanced production lines and utilizes cutting-edge technology, making us the largest manufacturer in China. Our extensive experience in the plough and harrow disc market spans over 15 years, allowing us to offer a diverse range of models and sizes tailored to your specific needs. Each blade is designed for optimal wear resistance and minimal breakage, providing exceptional performance in the field.
Whether you need standard sizes or customized options based on your drawings and samples, we are here to serve you with reliable, high-quality products.
Specifications
| Diameter (MM) | Diameter (Inch) | Thickness (MM) | Weight Plain (KG) | Weight Plain (LBS) | Weight Notched (KG) | Weight Notched (LBS) |
|---|---|---|---|---|---|---|
| 300 | 12″ | 3 | 1.6 | 3.5 | 1.1 | 2.4 |
| 330 | 13″ | 3 | 1.8 | 4 | 1.2 | 2.6 |
| 360 | 14″ | 3 | 2.3 | 4.9 | 1.9 | 4.1 |
| 410 | 16″ | 3 | 3.2 | 7 | 2.7 | 5.9 |
| 460 | 18″ | 3 | 4.3 | 9.5 | 3.8 | 8.4 |
| 510 | 20″ | 3.5 | 5.8 | 12.7 | 5.6 | 12.3 |
| 560 | 22″ | 4 | 8.1 | 18 | 7.5 | 16.5 |
Additional Information
For optimal product performance, it is recommended to regularly inspect and maintain the disc blades. Ensure they are sharpened appropriately and check for any signs of wear. Should you have any specific requirements or customizations, please feel free to reach out.
