DISC HARROW
Inquire NowDescription

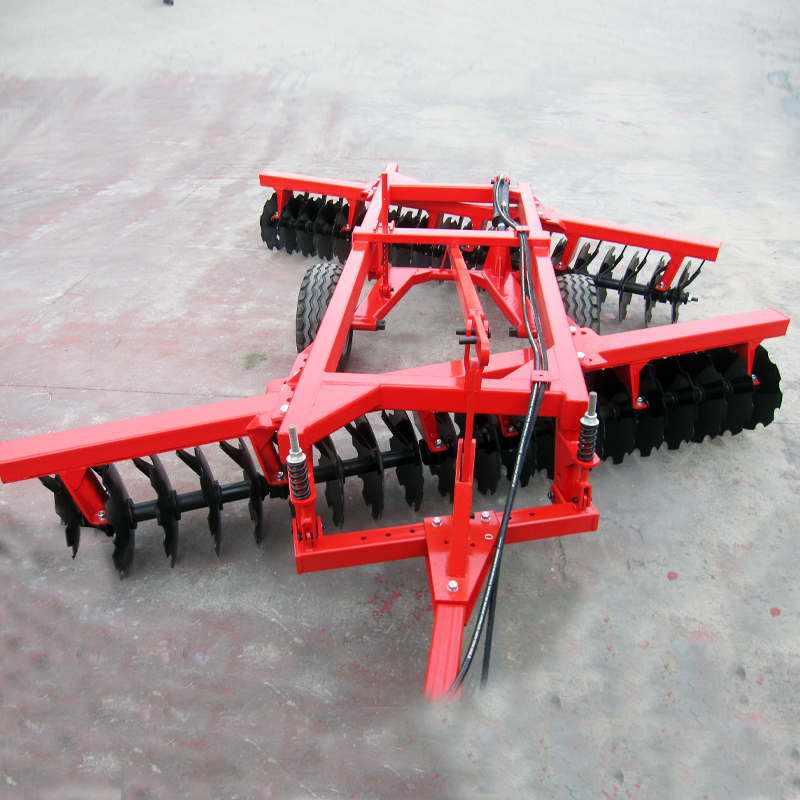

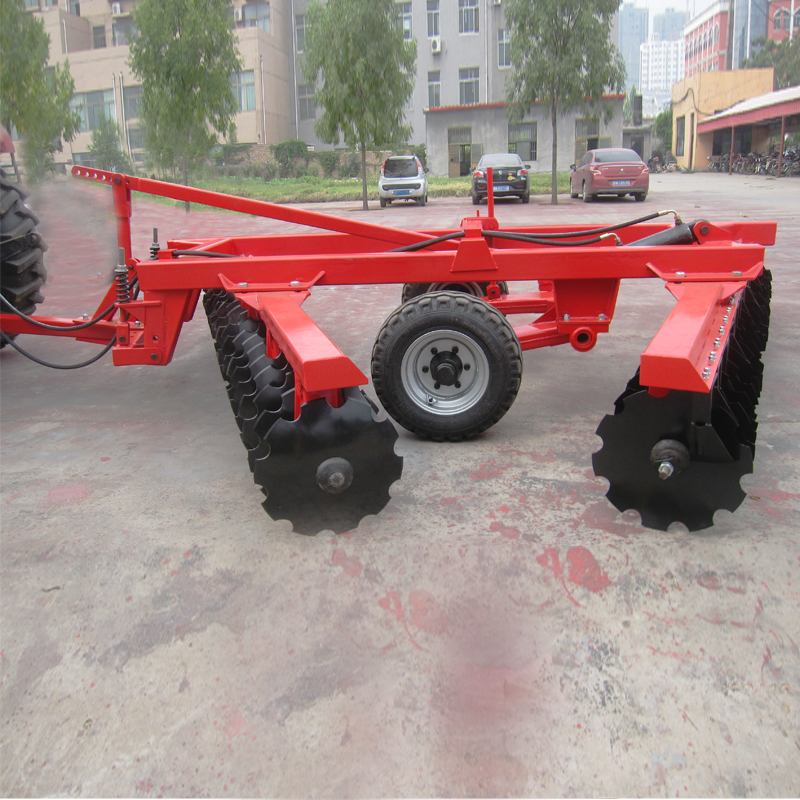

The 1BZY Hydraulic Pressure Offset Heavy Disc Harrow is engineered for exceptional performance and flexibility in challenging agricultural environments. This robust traction-type harrow excels at breaking up heavy soil, making it ideal for fields plagued with weeds or left fallow. With high work efficiency and rational power utilization, it ensures a smooth surface and loose soil after operation, promoting better crop growth. Its design makes it highly adaptable to a variety of terrains, ensuring farmers can tackle any challenge with confidence.
Specifications
| Model | Number of Discs | Size of Disc | Working Width (mm) | Working Depth (mm) | Weight (kg) | Matched Tractor (hp) | Note |
|---|---|---|---|---|---|---|---|
| 1BZY-1.8 | 16 | 610×6 | 1800 | 150-200 | 1420 | 70-85 | (Bearing Assembly) |
| 1BZY-2.0 | 18 | 660×6 | 2000 | 180-220 | 1580 | 85-100 | (Bearing Assembly) |
| 1BZY-2.2 | 20 | 660×6 | 2200 | 180-220 | 1660 | 100-120 | (Bearing Assembly) |
| 1BZY-2.5 | 24 | 660×6 | 2500 | 180-220 | 2100 | 125-150 | (Bearing Assembly) |
| 1BZY-3.0 | 28 | 660×6 | 3000 | 180-220 | 2300 | 150-180 | (Bearing Assembly) |
| 1BZY-3.5 | 32 | 660×6 | 3500 | 180-220 | 2850 | 150-180 | (Bearing Assembly) |
| 1BZY-4.0 | 36 | 660×6 | 4000 | 180-220 | 3100 | 180-200 | (Bearing Assembly) |
Additional Information
- Maintains a smooth surface post-operation
- Ideal for heavy soil, wasteland, and weed control
