DISC PLOUGH
Inquire NowDescription

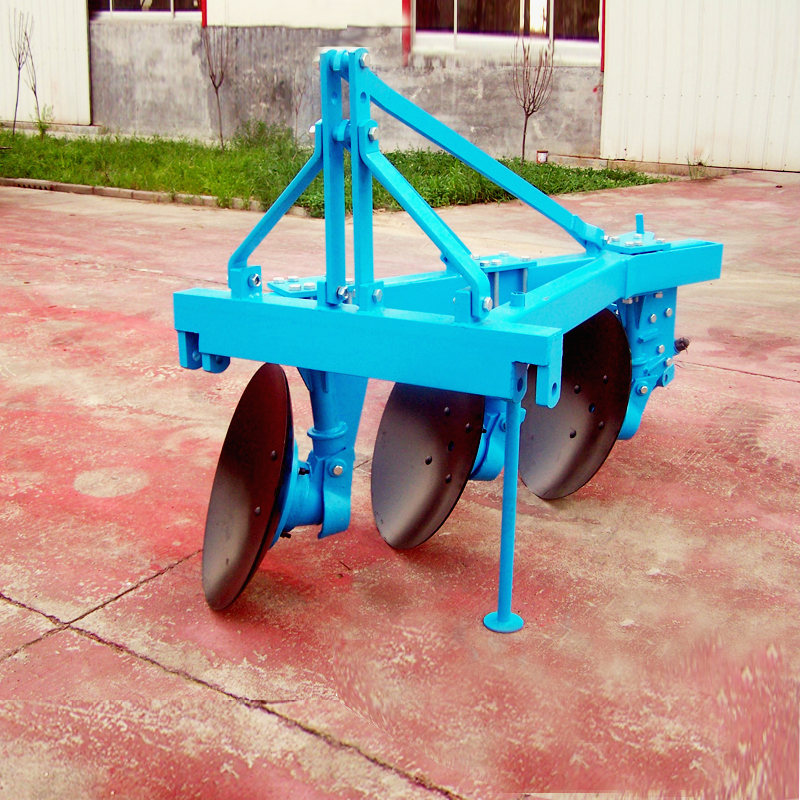

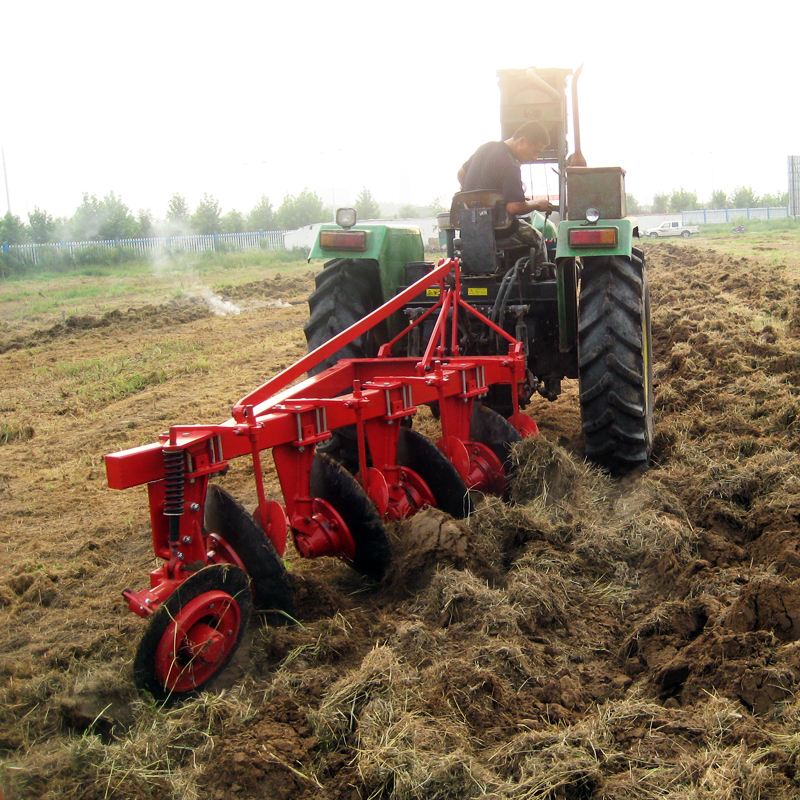

The 1LY Disc Plough is an essential tool for agricultural tasks, expertly designed to tackle the challenges of opening new fields and processing rocky areas. Its innovative structure allows for efficient operation in hard and dry, trashy land, making it an ideal choice for complex terrains, including weedy plots and farmland embedded with bricks and stones. This plough is compatible with tractors and effectively furrows soil as patches rotate, excelling in cutting off crop stems while avoiding entanglement with grass or other obstructions. With features such as high efficiency, quality work output, easy adjustability, and durability, the 1LY Disc Plough is built to endure the rigors of agricultural use.
Specifications
| Model | Number of Discs | Diameter of Disc (mm) | Working Width (mm) | Working Depth (mm) | Weight (kg) | Matched Tractor (hp) |
|---|---|---|---|---|---|---|
| 1LY-315 | 3 | 460 | 450 | 180 | 170 | 25-30 |
| 1LY-320 | 3 | 510 | 600 | 200 | 190 | 30-50 |
| 1LY-322 | 3 | 560 | 660 | 220 | 316 | 45-55 |
| 1LY-225 | 2 | 660/710 | 500 | 250-300 | 305-315 | 50-60 |
| 1LY-325 | 3 | 660/710 | 750 | 250-300 | 430-450 | 75-90 |
| 1LY-425 | 4 | 660/710 | 1000 | 250-300 | 500-525 | 90-100 |
| 1LY-525 | 5 | 660/710 | 1250 | 250-300 | 600-630 | 100-120 |
Additional Information
The 1LY Disc Plough is specifically crafted to meet the demands of diverse agricultural conditions, ensuring high productivity and effective soil management. Its user-friendly design and adaptable features make it a valuable asset for farmers looking to enhance their operational efficiency.
