DL25Y Sectional Directional Control Valve
Inquire NowDescription
The DL25Y Sectional Directional Control Valve is a versatile and compact hydraulic valve designed for optimal flow control in various applications. This sectional valve is available in configurations ranging from 1 to 8 sections, allowing for flexibility and adaptability in your hydraulic systems. Its compact design simplifies piping design and installation, making it an excellent choice for engineers and technicians alike.
Featuring a wide selection of spool functions, this valve is equipped with smoothly polished surfaces that facilitate precise control of fluid flow. The DL25Y model excels in managing fluid dynamics with excellent flow characteristics. Additionally, it comes with essential safety features, including a safety valve, overload valve, charge valve, and check valve, ensuring reliable operation and easy maintenance. The valve can be actuated either mechanically or hydraulically and supports various loop types, such as parallel circuits, series-parallel circuits, or dual circuits, meeting the diverse needs of your hydraulic systems.

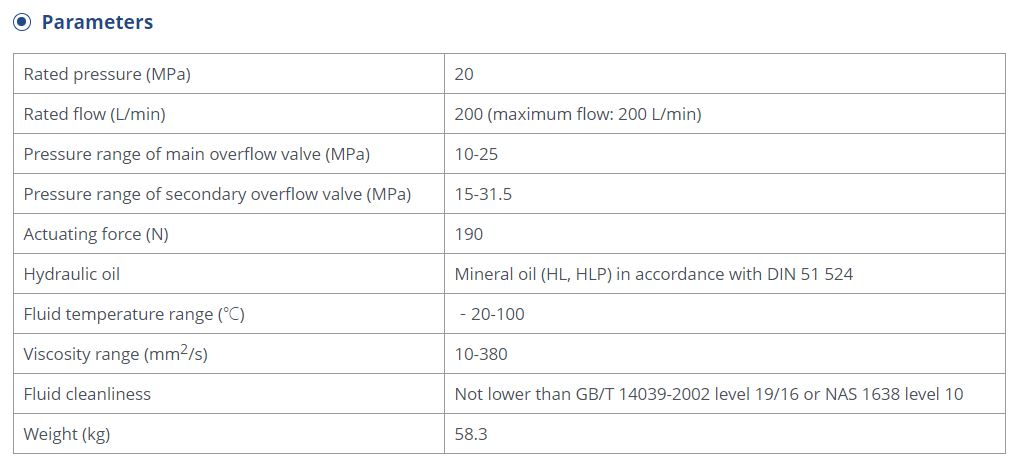

Specifications
| Feature | Details |
|---|---|
| Sections Available | 1 to 8 |
| Design | Compact |
| Spool Functions | Wide choice |
| Actuating Method | Mechanically operated, Hydraulically operated |
| Loop Type | Parallel circuit, Series-parallel circuit, Dual circuit |
| Included Valves | Safety valve, Overload valve, Charge valve, Check valve |
Additional Information
- Easy maintenance

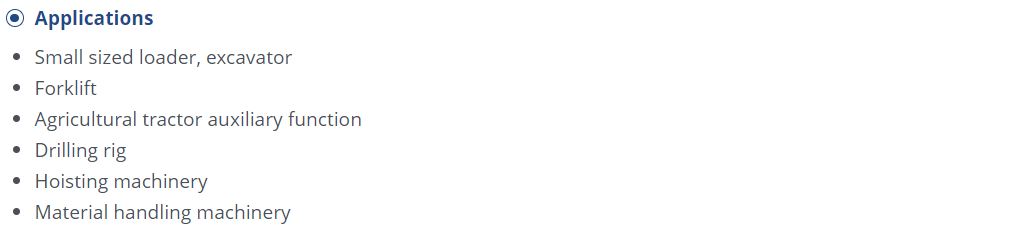

- Suitable for a wide range of applications
