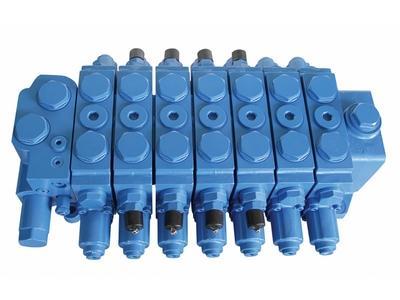

DLV20 Sectional Directional Control Valve
Inquire NowDescription
The DLV20 Sectional Directional Control Valve is engineered to deliver exceptional performance in fluid control applications. This versatile valve is available in configurations from 1 to 8 sections, allowing for tailored solutions to meet specific operational needs. Designed with advanced load sensing control, it ensures a consistent flow regardless of fluctuations in load pressure, leading to significant energy savings.
The hydraulic valve features pressure-compensated flow control that maintains efficiency, even under varying load conditions. Its spool is crafted with smoothly polished surfaces, providing precise fluid flow control with minimal leakage. The valve’s layout is optimized for piping, resulting in a low pressure drop that enhances system efficiency.
Moreover, the DLV20 is equipped with a range of safety features including a safety valve, overload valve, charge valve, and check valve, making it suitable for diverse applications and ensuring ease of maintenance. With a loop type of parallel circuit design, this valve proves to be a reliable choice for complex hydraulic systems.

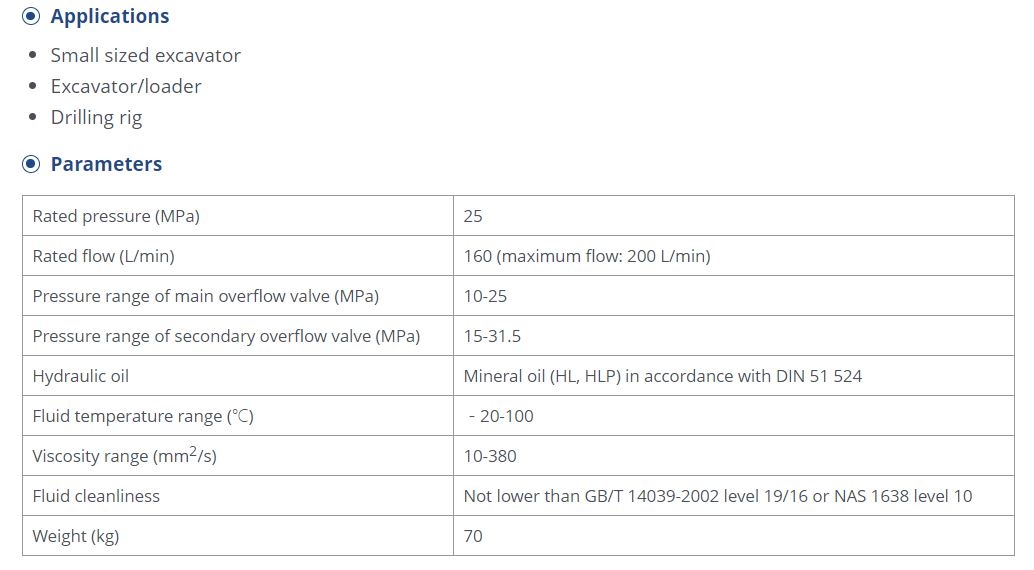

Specifications
| Attribute | Details |
|---|---|
| Type | Sectional Directional Control Valve |
| Sections | 1 to 8 |
| Spool Functions | Various options available |
| Control Type | Load Sensing Control |
| Flow Control | Pressure-Compensated |
| Leakage | Low |
| Piping Layout | Optimized for Low Pressure Drop |
| Safety Features | Safety Valve, Overload Valve, Charge Valve, Check Valve |
| Loop Type | Parallel Circuit |
Additional Information
- Suitable for a wide range of applications
- Easy maintenance for long-term reliability
