door frame roll forming machine shutter door forming machine metal roofing roll forming
Inquire NowDescription

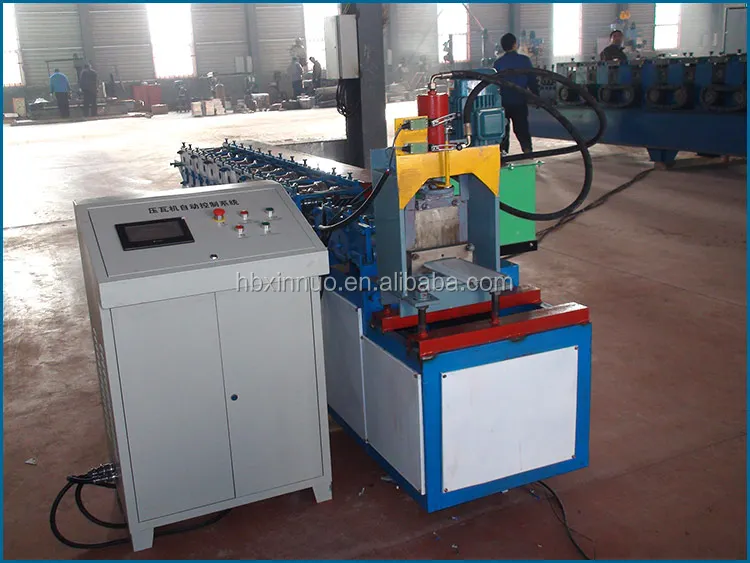

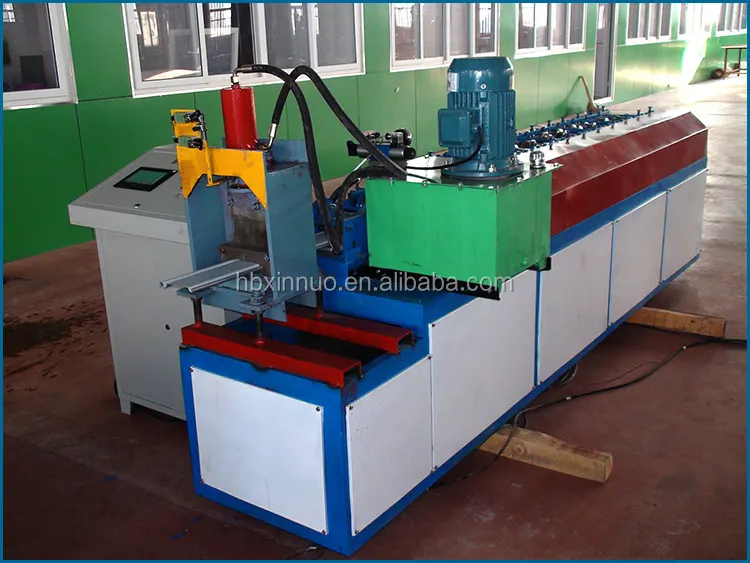

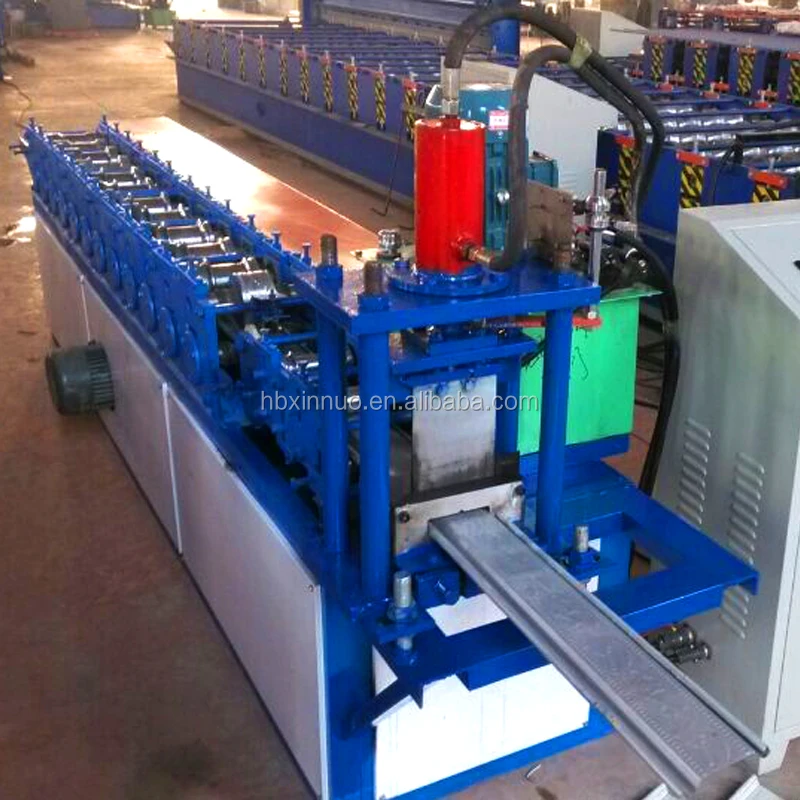

The door frame roll forming machine is an essential tool designed for the efficient production of shutter doors and metal roofing components. This machine boasts a reasonable structure and an aesthetically pleasing appearance, making it not only functional but also a valuable addition to any workspace. Its compact design saves space and is particularly favored by customers operating in limited areas. The machine is easy to operate, ensuring that users can achieve optimal results with minimal effort.
Engineered to meet user requirements, this machine is customizable in terms of its technical parameters, allowing for adjustments based on specific needs. The shutter door bottom forming machine is built to deliver high productivity and reliability.
Specifications
| Feature | Specification |
|---|---|
| Main Motor Power | 3kw, 3 phases |
| Hydraulic Motor Power | 3kw |
| Hydraulic Pressure | 18-20 Mpa |
| Voltage | 380V / 3phase / 50 HZ (or as per requirement) |
| Control System | PLC Delta Inverter |
| Main Frame | 300MM H-Beam |
| Backboard Thickness | 14MM |
| Chain Size | 20MM |
| Feeding Material Thickness | 2.0MM |
| Overall Size | 4500×800×1300mm |
| Total Weight | 2T |
Additional Information
Hebei Xinnuo Roll Forming Machine Co., Ltd. specializes in manufacturing various types of professional roll forming machines, including intelligent automatic roll forming production lines for C&Z shape purline machines, highway guardrail machines, sandwich panel production lines, and more. The company’s sales network spans across China, ensuring extensive support and service for its customers.
