door frame roll forming machine shutter door forming machine metal roofing roll forming

Inquire Now

Description

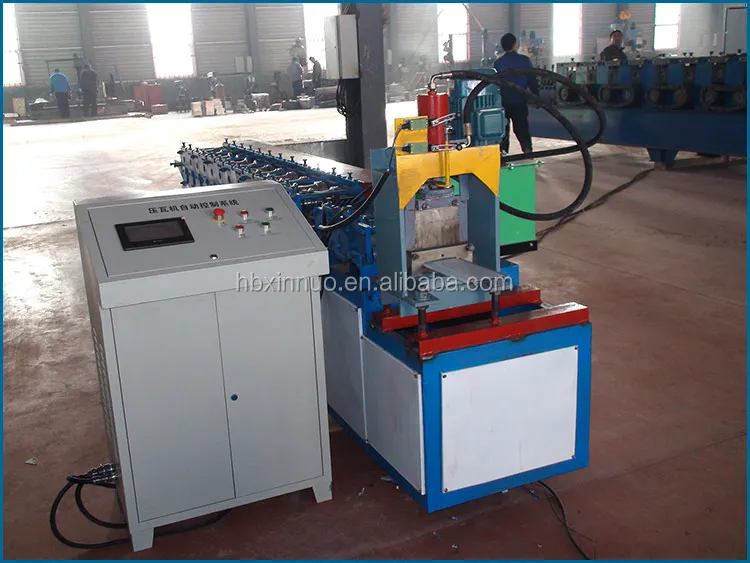

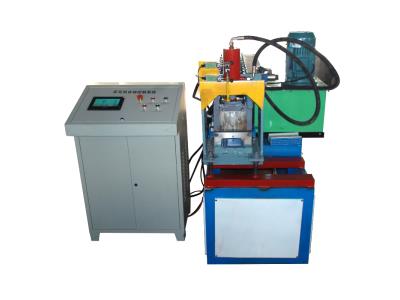

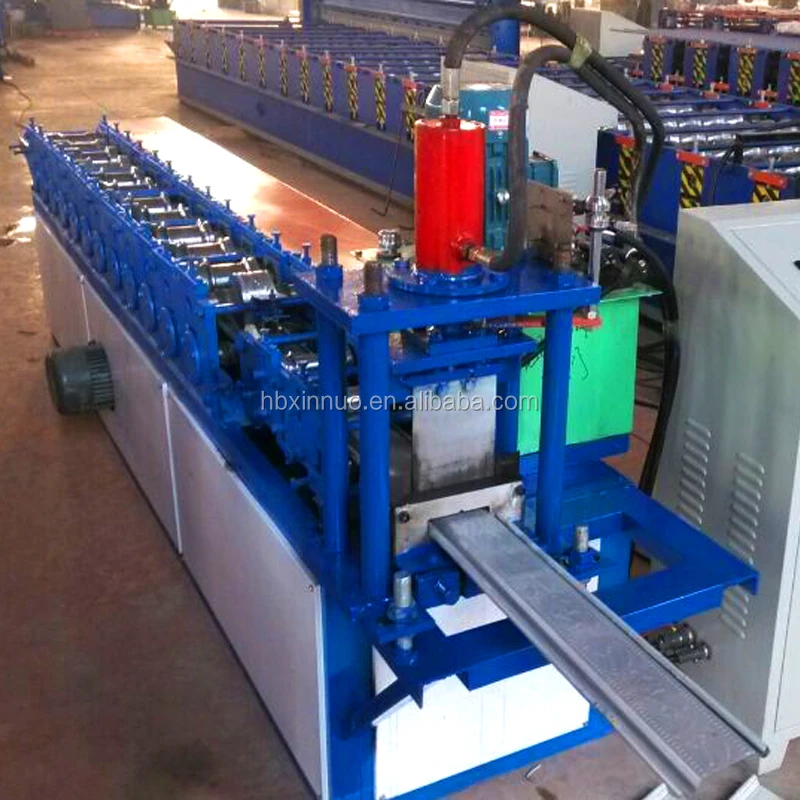

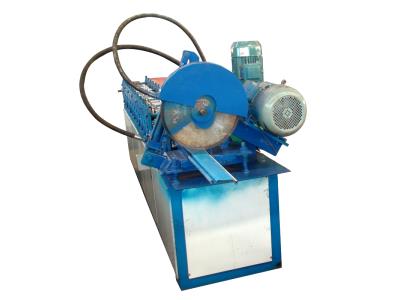

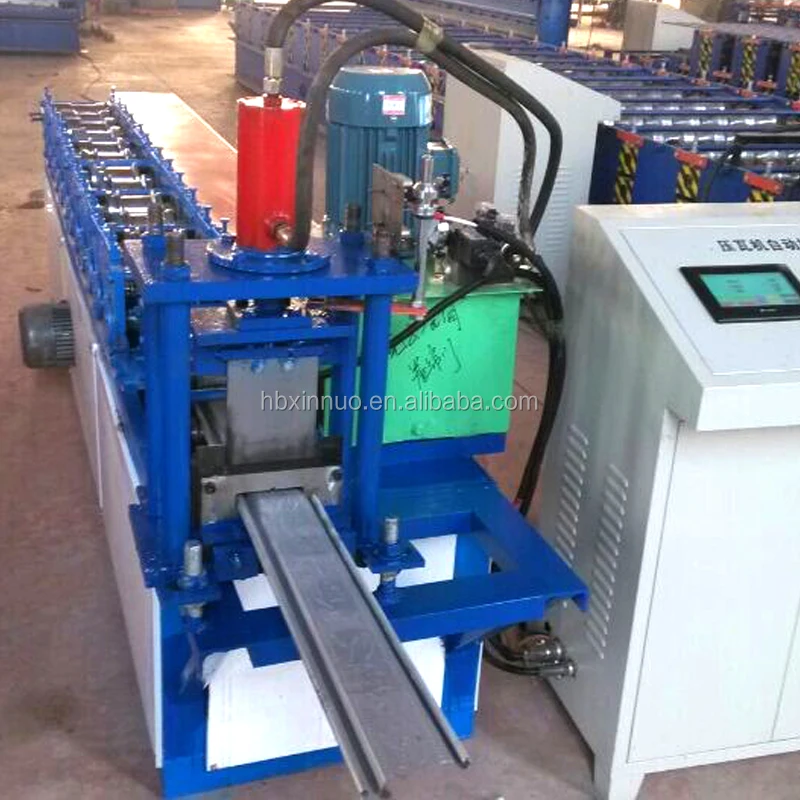

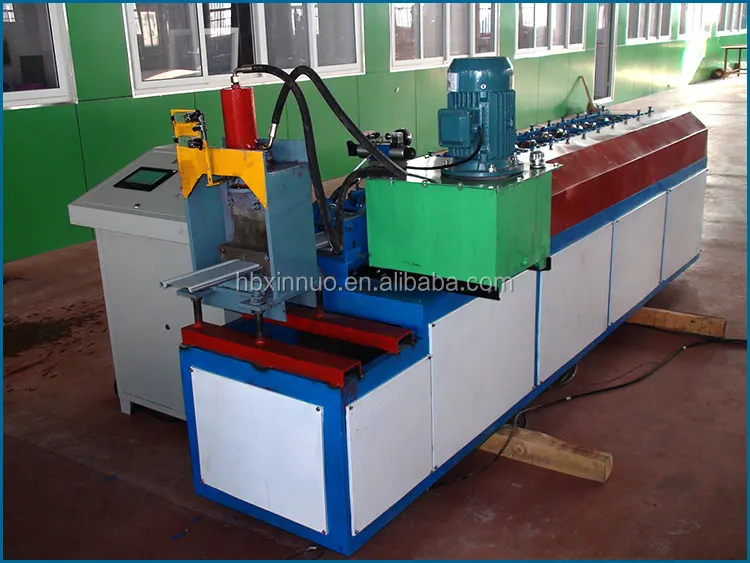

The door frame roll forming machine is a versatile and efficient solution designed for the production of shutter doors and metal roofing. This machine features a reasonable structure and an aesthetically pleasing appearance, making it a preferred choice for customers with space constraints. Its user-friendly operation and compact design ensure it fits seamlessly into various manufacturing environments, enhancing productivity and reducing operational challenges.

Specifications

Parameter Specification
Main Motor Power 3kw, 3 phases
Hydraulic Motor Power 3kw
Hydraulic Pressure 18-20Mpa
Voltage 380V /3phase/ 50 HZ (or as your requirement)
Control System PLC Delta Inverter
Main Frame 300MM H-Beam
Backboard Thickness 14MM
Chain Size 20MM
Feeding Material 2.0MM
Feeding Thickness 2.0MM
Overall Size 4500×800×1300mm
Total Weight 2T

Additional Information

The machine is designed to cater to user requirements, with the ability to adjust technical parameters as needed. Its productivity ranges from 8 to 12 meters per minute, making it efficient for various production needs.
