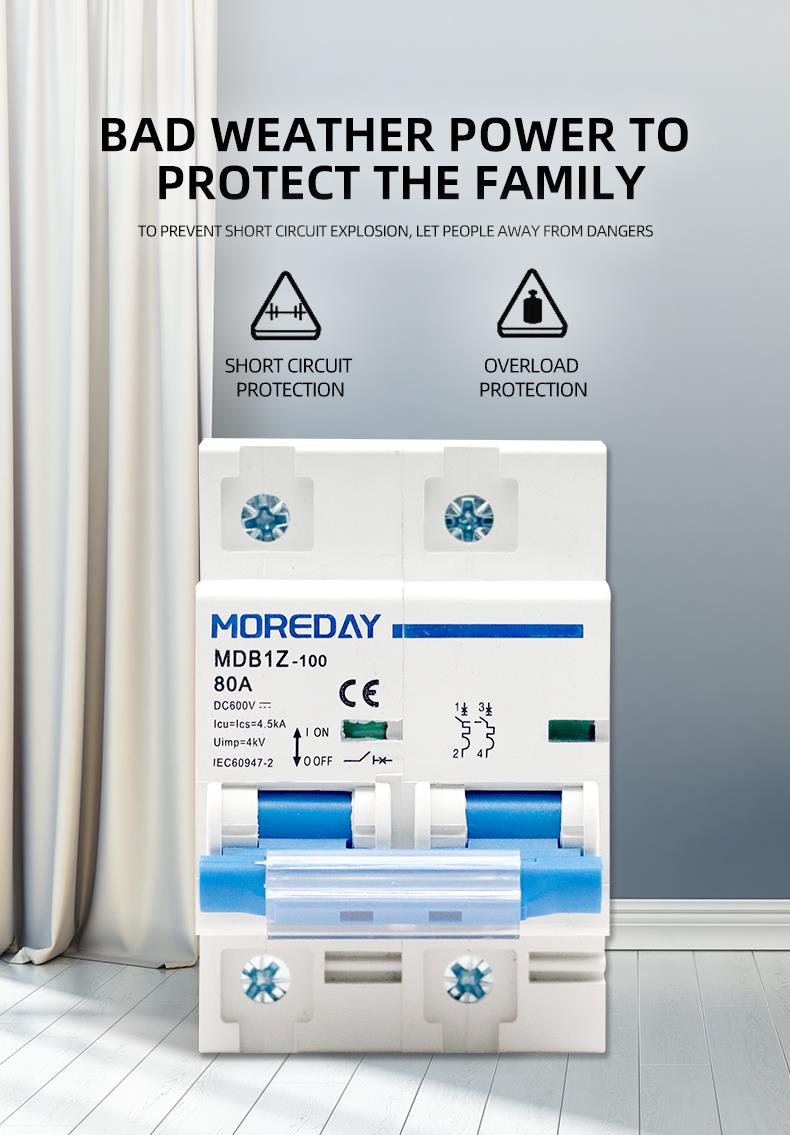

Double 2 Poles DC 500V Mdb1z-125 80A 100A 125A MCB Household Air Switch Machine 10ka
Inquire NowDescription

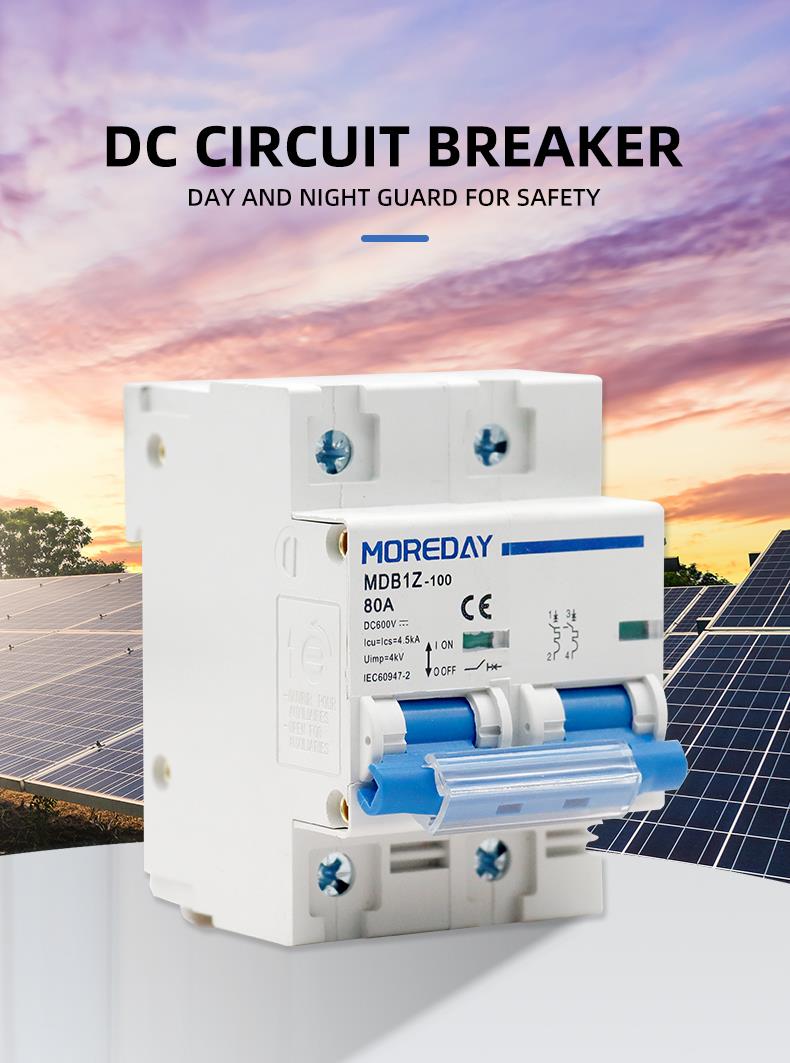

The Double 2 Poles DC 500V Mdb1z-125 MCB is an essential electrical protection device designed to safeguard circuits from overcurrent and short circuit conditions. This Miniature Circuit Breaker (MCB) is specifically rated to interrupt electrical currents up to 125A in direct current (DC) systems, making it ideal for applications such as solar power systems, electric vehicles, and various industrial processes. With a robust design and reliable performance, the MCB ensures that electrical circuits are protected effectively, tripping to shut off the circuit when the maximum current threshold is reached.
The unit features a breaking capacity of 10KA and is available in multiple current ratings including 80A and 100A. Its compact dimensions and compatibility with standard 35MM DIN rail installations make it a convenient choice for both residential and commercial electrical installations.
Specifications
| Item | DC MINI CIRCUIT BREAKER |
|---|---|
| Code | FPV-125 |
| Pole | 1P/2P/3P/4P |
| Voltage | DC 250V/600V/1000V |
| Current | 1A, 3A, 6A, 10A, 16A, 20A, 32A, 40A, 50A, 63A |
| Standard | IEC/EN60947-2 |
| Breaking Capacity | 6KA, 10KA |
| Characteristic Curve | B, C, D |

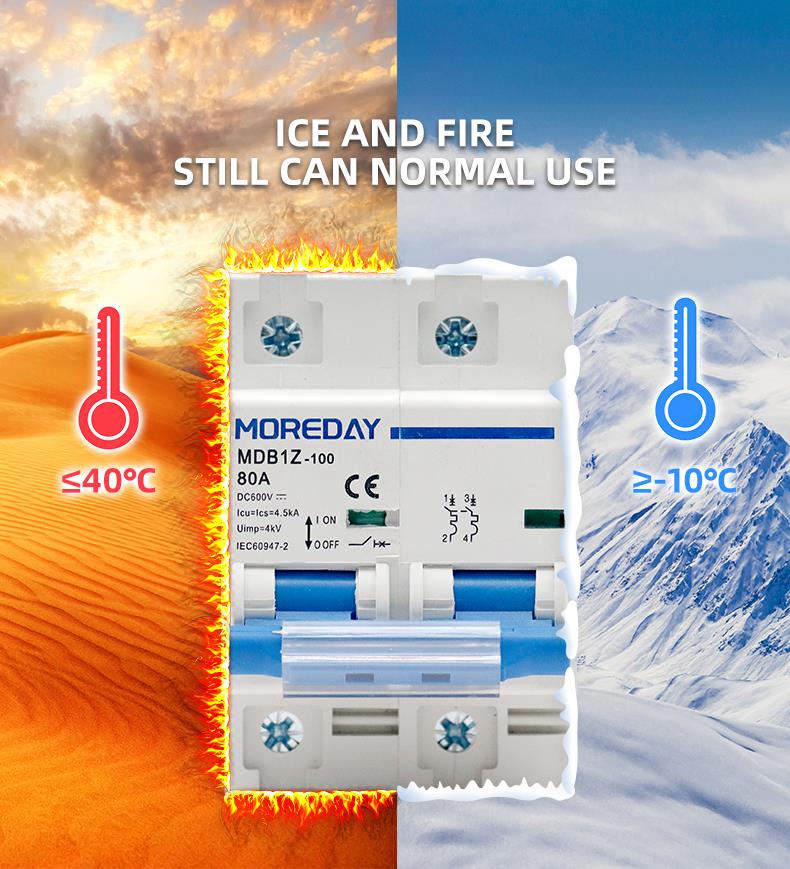

| Working Temperature | -5°C to +40°C |
| Protection Degree | IP20 |
| Electrical Life | More than 8000 times |
| Mechanical Life | More than 2000 times |

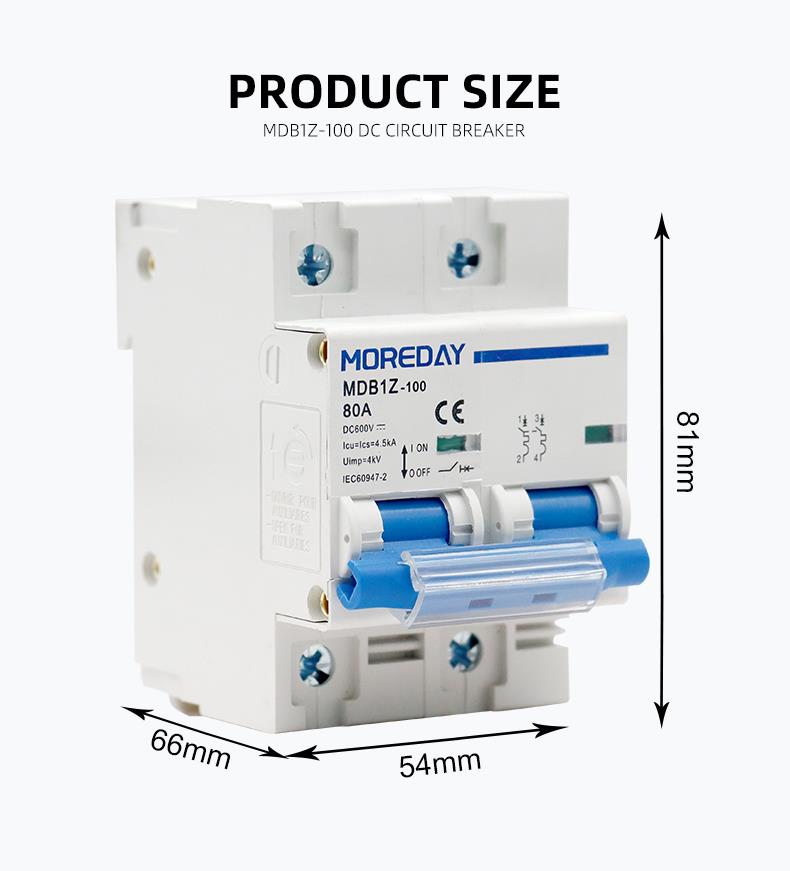

| Dimension (W x H x D) | 18 x 80 x 71 mm |
| Installation | 35MM DIN RAIL |
| Accessory | Yes |
| Installation Altitude | ≤ 2000M |
Additional Information
The MCB is designed for easy installation and offers a reliable solution for protecting electrical circuits in various applications. It provides a long electrical life and is backed by various certifications including CE and TüV, ensuring compliance with international safety standards.
