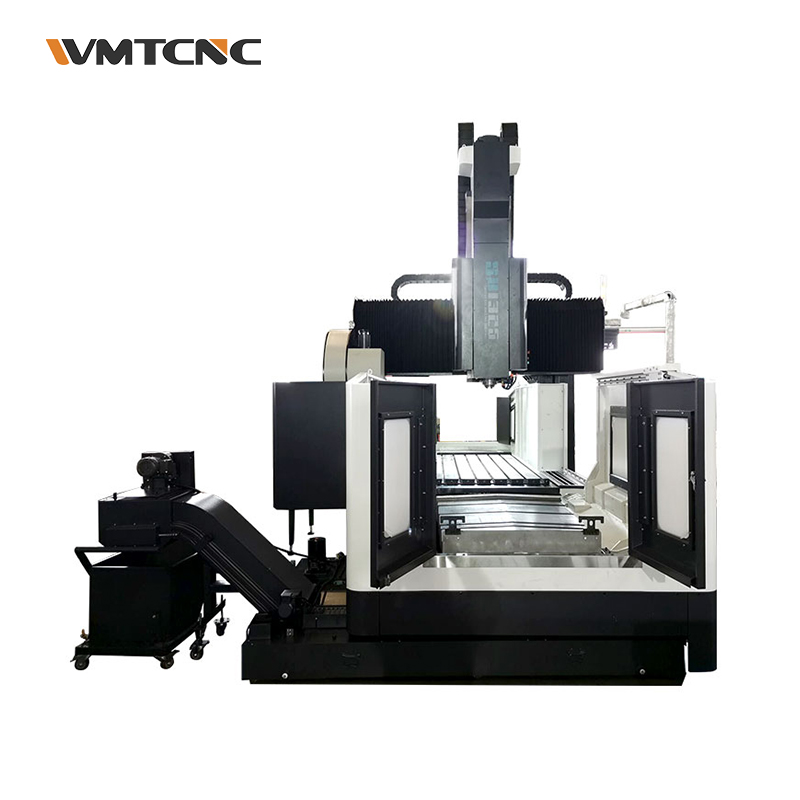

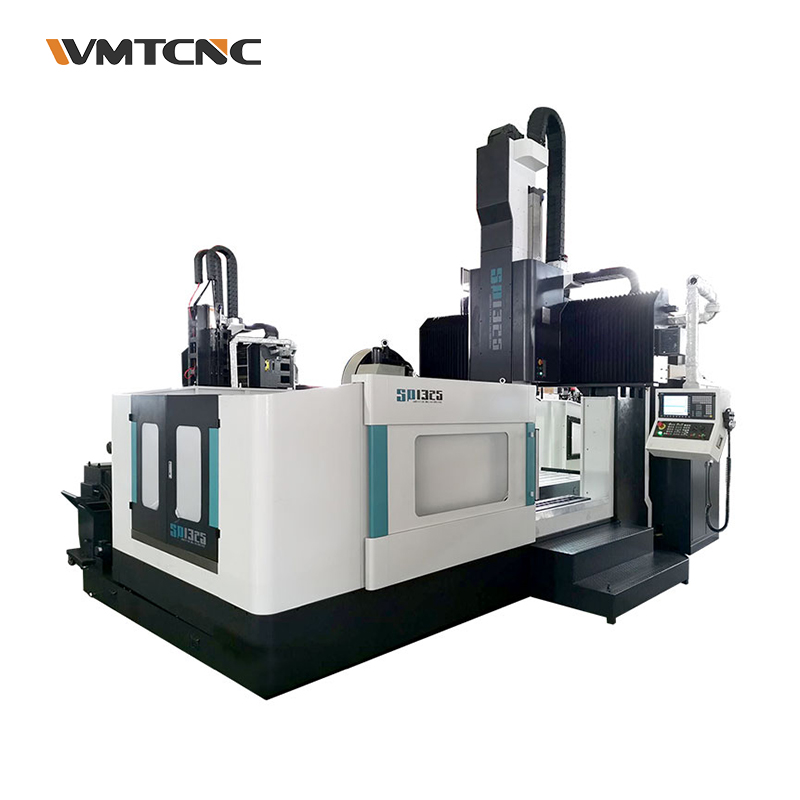

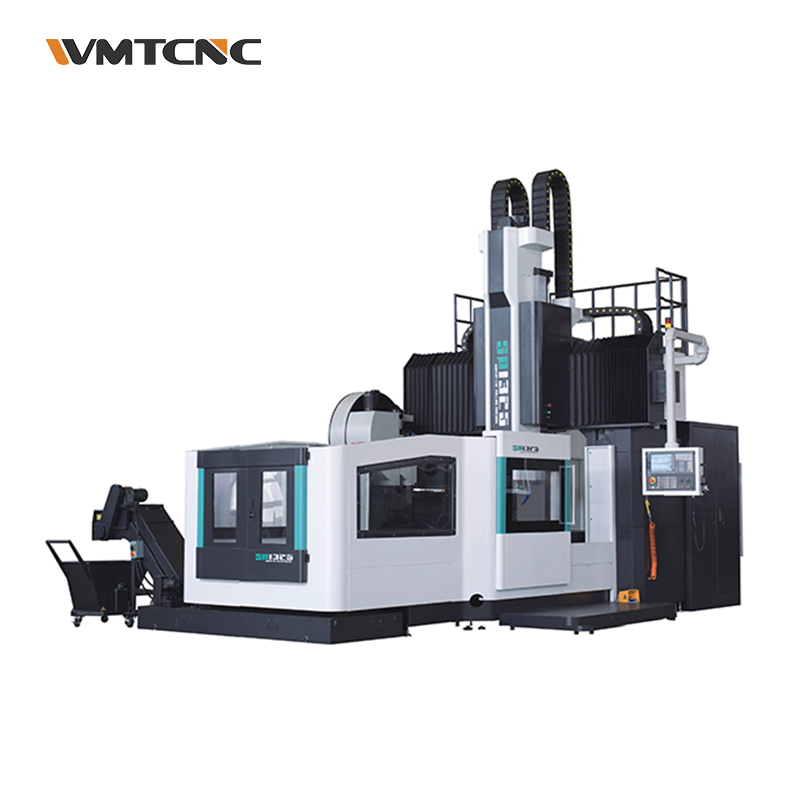

Double Column Machining Center
Inquire NowDescription
The Double Column Machining Center is engineered for high performance and exceptional precision, providing a remarkable balance of efficiency and reliability. This advanced machining center is designed to optimize productivity while minimizing energy consumption, boasting a 20% reduction in energy use without compromising stability. The exclusive user interface ensures ease of operation, programming, and maintenance, making it suitable for various industrial applications.
Its innovative design places the center of gravity at the core of its operation, supported by a double balance counterweight system. This configuration allows for an equalized ram guide-way allocation, effectively eliminating bending during operations, and ensuring high stability and accuracy while machining. The machine is equipped with a robust oil chiller and hydraulic station, providing cycle cooling for spindle units and tool clamping operations.
Specifications
| Specification | Details |
|---|---|
| Model | SP1325 |
| Worktable Size (LxW) | 2500 x 1100 mm |
| T-slots Size (NxWxD) | 7 x 22 x 160 mm |
| X/Y/Z Axis Travel | 2600/1400/800 mm |
| Distance from Spindle Nose to Worktable Surface | 150-950 mm |
| Spindle Taper | BT50 |
| Spindle Power | 15/18.5 kW |
| Max. Spindle Speed | 6000 RPM (Direct Drive) |
| Rapid Feed Speed (X/Y/Z) | 12/12/10 m/min |
| X/Y/Z Axis Ball Screw | 6316/5016/5016 |
| X/Y/Z Guideway Type | X/Y: Roller linear guideways; Z: Box guideway |
| Tool Magazine Capacity | 24T |
| Max. Length of Tool | 350 mm |
| Tool Change Time (T-T) | 3 s |
| Positioning Accuracy | 0.02/1000 mm |
| Re-Positioning Accuracy | 0.012 mm |
| Machine Dimensions (LxWxH) | 7800 x 5500 x 5000 mm |
| Max. Loading of Worktable | 4T |
| Net Weight | 21T |
Additional Information
- Supports direct connection of the main motor for enhanced performance.
- Includes a lubrication station controlled by a CNC system with automatic testing and alarm features.
