DOUBLE GIRDER OVERHEAD CRANE
Inquire NowDOUBLE GIRDER OVERHEAD CRANE
There are two girder beams that make up the bridge, and they are supported by an
end truck on each side. The electric hoist trolley run on a rail installed above the bridge
girders.
Double girder crane is recommended for heavier-duty applications where the crane has
to handle heavier capacities and longer spans. It is used for either manufacturing or
maintenance applications.
Almost all paper mills use bridge crane for regular maintenance needing removal of
heavy press rolls and other equipment.
It is widely used in Steel Plant, Cement Plant,Power Plant ,Mine Industry,Food Industry,
Chemical Industry,Ship yard,Stone Yard,and Warehouses,ect
Reference Pictures of Main Components
|

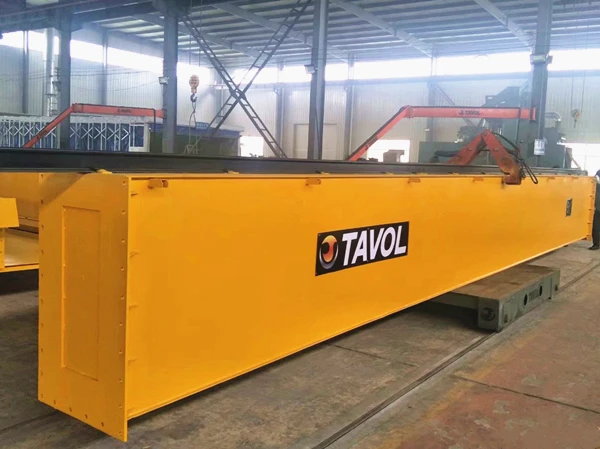

Main Girder |

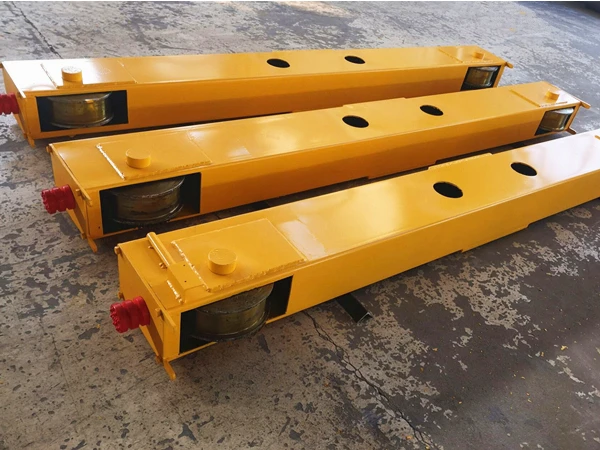

End Truck |

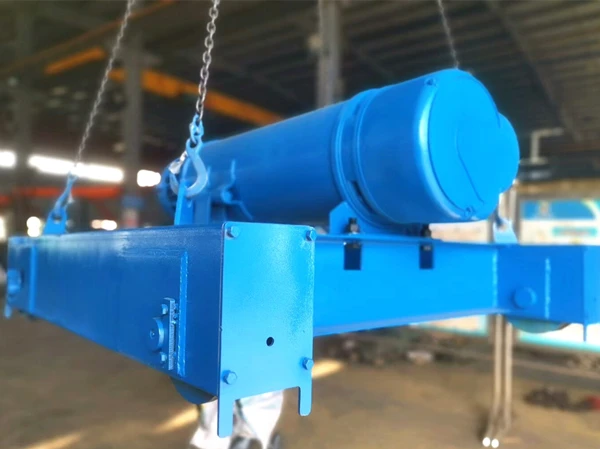

Electric Hoist |
|
Maintenance Platform |

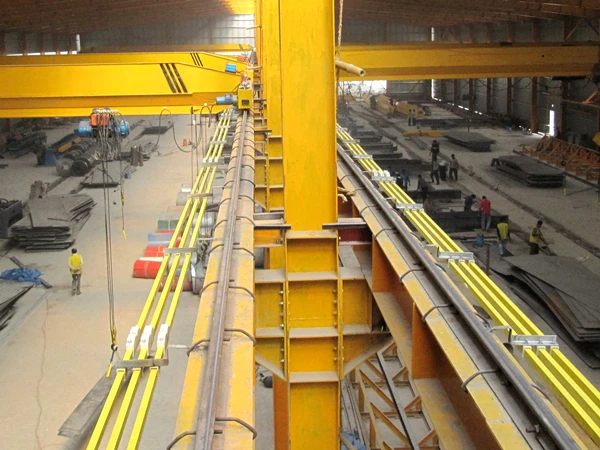

Bus Bar and Runway |

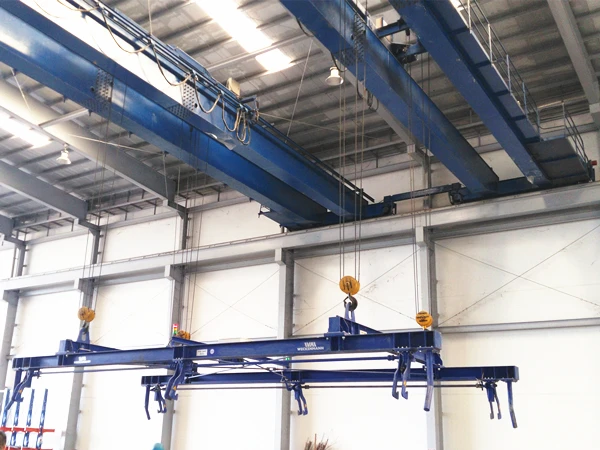

Working with Sling |
Business Terms
| 1 | Payment Term | TT or L/C. |
| 2 | Delivery Term | Within 15 working days after the seller get the deposit or original L/C. |
| 3 | Packing Term | Standard container packing, 40 feet container |
| 4 | Warranty Term |
24 months from the Test run date or 26 months from B/L date which one comes earlier, once any spare parts broken down during this period, the seller should send the broken-down parts with free charges. Steel structure is Five Years and electrical parts is Two Year. |
Free Spare Parts as Backup
| SI | Description | Quantity |
| 1 | Rope guide | 1 PCS |
| 2 | Brake block | 1 PCS |
| 3 | AC contactor | 2 PCS |
| 4 | Travel switch | 1 PCS |
| 5 | Fire limit switch | 1 PCS |
| 6 | Warning alarm | 1 PCS |
| 7 | Buffer | 2 PCS |
| 8 | Pendent handle | 1 PCS |
Overseas Project of Single Girder Overhead Crane
|
New Zealand |
Chile |
|
Bangladesh |
Philippines |
|
USA |
Oman |
Company information
Tavol Cranes Group is a professional and experienced manufacturer of Overhead
Crane, Bridge Crane, Gantry Crane, Jib Crane and Electric Hoist. Since we have
been in the field of crane for more than 20 years, we have confidence in solving different
kinds of material handling problems.
RFQ:
If you want to get a price of our double girder overhead crane,please help to confirm the
details as below:
1) Lift capacity? 5ton, 10ton ,15ton or others?
2) Span? 10 meters, 16 meters ,19.5 meters or others?
3) Lift height? 6 meters, 8 meters ,9 meters or others?
4) Travel length?
5) Power supply in your local? Is 380V/50Hz/3P or others?
