TECHNICAL DESCRIPTION

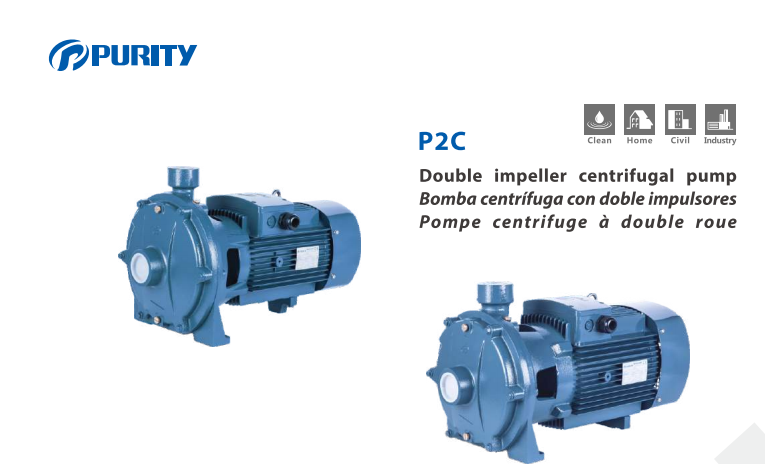

· New double impeller centrifugal pump
· Original design by PURITY
· Both square motor & round motor available
· YE3 high efficient motor, with protection IP55 class F
· Pump case with anti-corrosive coating
· Double impeller in brass
· Shaft in stainless steel AISI 304 or galvanized iron
· Suction and discharge port in G20 thread
· Quality NSK bearing, wear resistance mechanical seal

USING LIMITS
· Liquid temperature between -10℃ and +120℃
· Ambient temperature up to +50℃
· Max. working pressure 16 bar
· Continuous service S1

APPLICATIONS
· Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
· The high efficiency and adaptability of these pumps to even the most unusual of applications, makes them ideal for use in the domestic,

civil and industrial sectors; in particular for the distribution of water in combination with pressure sets, for pressure boosting and in fire-fighting sets.
