double layer color steel tile machine color steel double layer roll forming machine iron
Inquire NowDescription

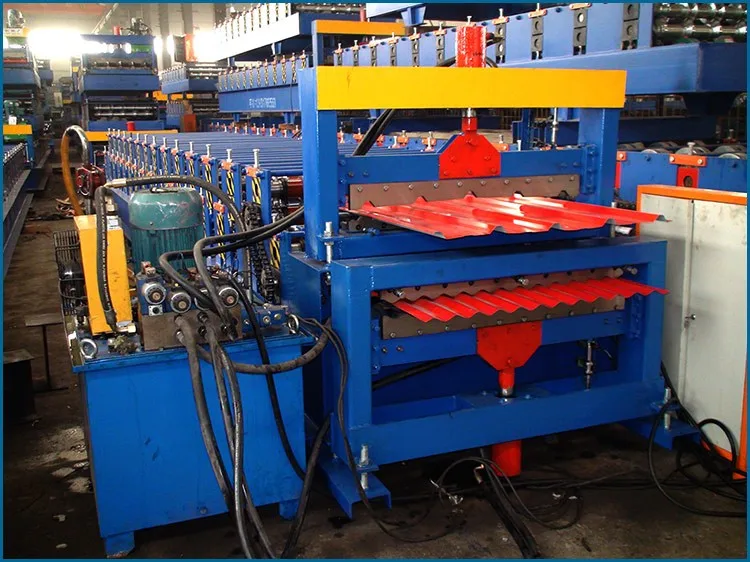

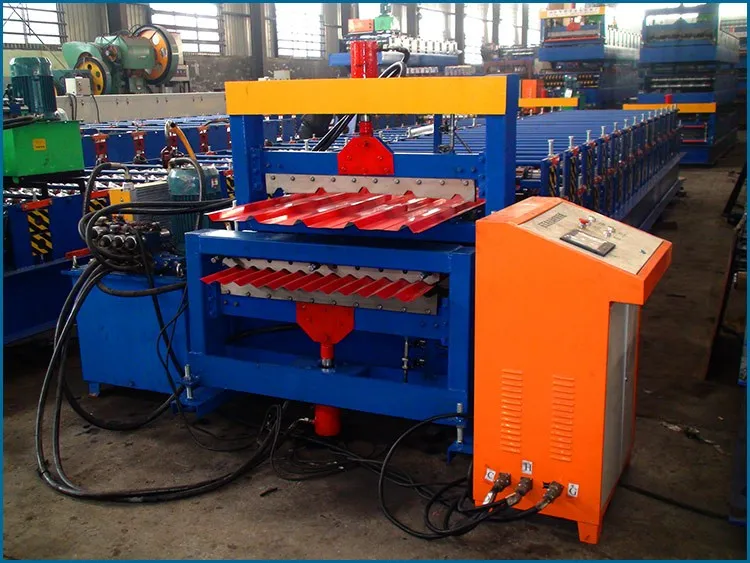

The double layer roof panel double decker roll forming machine is designed for efficient production of metal roofing sheets. This robust machine is capable of processing various materials, including color steel plates, galvanized sheets, and aluminum coils. With the ability to produce two-layer roofing panels, it maximizes productivity while maintaining high quality. The machine is equipped with advanced technology to ensure precision and durability, making it an ideal choice for manufacturers in the construction industry.
Specifications
| Feature | Specification |
|---|---|
| Suitable to process | Color steel plate, galvanized sheet, aluminum coils, etc. |
| Width of the feeding material | 914-1250mm |
| Roller station | 11-18 rows or custom as customer’s requirements |
| Thickness of feeding material | 0.3-0.8mm |
| Productivity | 8-12m/min |
| Rollers’ material | 45# steel |
| Diameter of shaft | 70-80mm |
| Voltage | 380V 50Hz 3 phases |
| Wall thickness of main forming machine | 12-18mm steel plate |
| Main forming machine body | 300-400 mm H steel |
| Motor power | 4-7.5 kw |
| Weight | About 5-15T |
| Custom | According to customer’s requirements |
Additional Information
Guarantee: 12 months guarantee. If any part of the machine is broken, we will supply the best part. However, if the damage is due to operational error, the buyer will pay for the shipping fee.
After-sale service: We will send a technician to your country to fix the machine. The buyer should bear all costs including visa, roundtrip ticket, suitable accommodation, and a salary of $100/day.
Product Pictures
