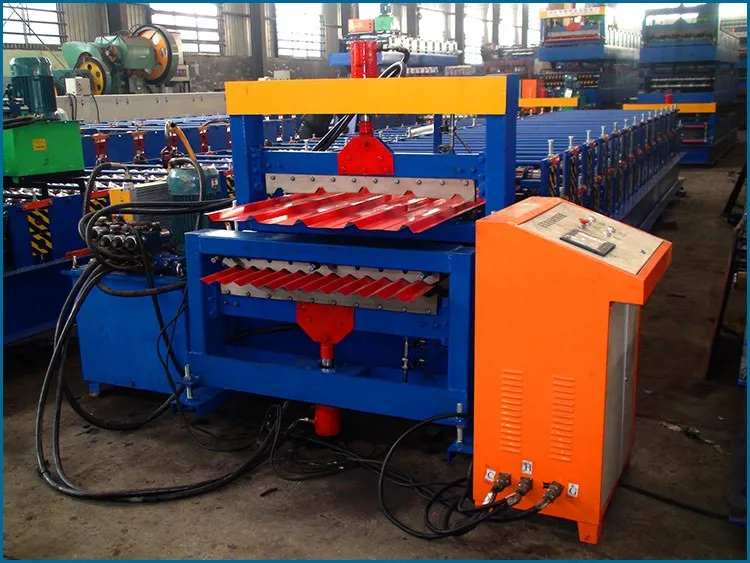

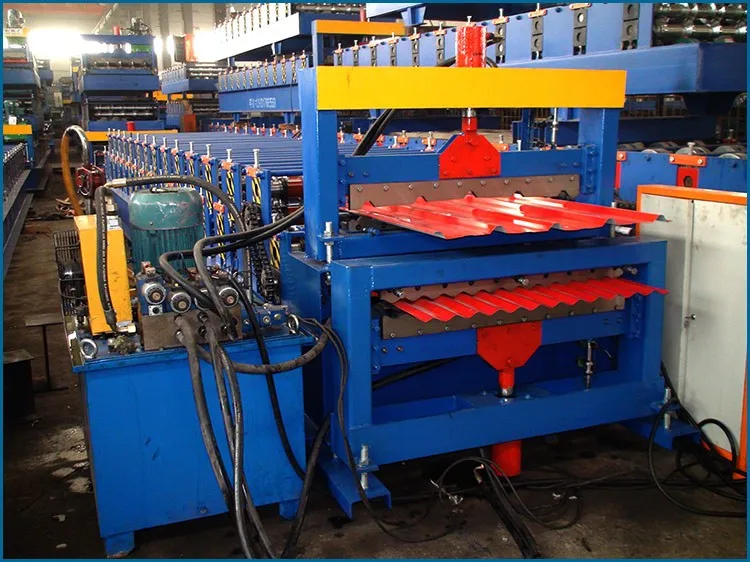

Double Layer Corrugated Metal Roofing Sheet Roll Forming Machine IBR Roofing panel double
Inquire NowDescription
The Double Layer Corrugated Metal Roofing Sheet Roll Forming Machine is an innovative solution designed for producing IBR roofing panels. This robust machine is capable of processing various materials including color steel plates, galvanized sheets, and aluminum coils, making it versatile for different construction needs. It features a dual-layer design allowing for efficient production of roofing sheets, which enhances productivity while maintaining high-quality output.
With parameters customizable to meet specific requirements, this machine ensures that users can achieve optimal performance tailored to their production goals. The high-speed operation and durable construction make it an ideal investment for manufacturers looking to enhance their production capabilities in the roofing sector.
Specifications
| Feature | Details |
|---|---|
| Suitable to process | Color steel plate, galvanized sheet, aluminum coils, etc. |
| Width of feeding material | 914-1250mm |
| Roller station | 11-18 rows or custom as customer’s requirements |
| Thickness of feeding material | 0.3-0.8mm |
| Productivity | 8-12m/min |
| Rollers’ material | 45# steel |
| Diameter of shaft | 70-80mm |
| Voltage | 380V 50Hz 3 phases |
| Wall thickness of main forming machine | 12-18mm steel plate |
| Main forming machine body | 300-400 mm H steel |
| Motor power | 4-7.5 kw |
| Weight | About 5-15T |
| Custom | According to customer’s requirements |
Additional Information
Guarantee: 12 months guarantee. If any part of the machine is damaged, we will supply the best part. However, if the damage is due to operator error, the buyer will bear the shipping costs.
After-sale service: Technicians can be sent to your location to fix the machine. The buyer is responsible for all costs including visa, round-trip tickets, suitable accommodation, and a salary of $100 per day for the technician.
