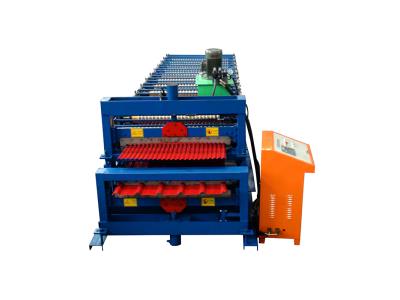

Double Layer Corrugated Metal Roofing Sheet Roll Forming Machine IBR Roofing panel double
Inquire NowDescription
The Double Layer Corrugated Metal Roofing Sheet Roll Forming Machine is expertly designed for producing IBR roofing panels with double-layer capabilities. This high-performance machine is suitable for processing various materials including color steel plates, galvanized sheets, and aluminum coils, making it an essential asset for any metalworking facility. With a robust construction and customizable features, it caters to the diverse needs of roofing production.
Specifications
| Parameter | Description |
|---|---|
| Suitable to process | Color steel plate, galvanized sheet, aluminum coils, etc. |
| Width of the feeding material | 914-1250mm |
| Roller station | 11-18 rows or custom as per customer’s requirements |
| Thickness of feeding material | 0.3-0.8mm |
| Productivity | 8-12m/min |
| Rollers’ material | 45# steel |
| Diameter of shaft | 70-80mm |
| Voltage | 380V 50Hz 3phases |
| Wall thickness of main forming machine | 12-18mm steel plate |
| Main forming machine body | 300-400 mm H steel |
| Motor power | 4-7.5 kw |
| Weight | About 5-15T |
| Custom | According to customer’s requirements |
Additional Information
Guarantee: 12 Months guarantee. If any part of the machine is broken, we will supply the best part. However, if the damaged parts are due to operational error, the buyer will pay for the shipping fee.
After-sale service: We send technicians to your country to fix the machine. The buyer should bear all costs including visa, round-trip ticket, suitable accommodation, and a salary of $100 per day.
Product Pictures
