Double Layer Corrugated Metal Roofing Sheet Roll Forming Machine IBR Roofing panel double
Inquire NowDescription
The Double Layer Corrugated Metal Roofing Sheet Roll Forming Machine is designed for the efficient production of IBR roofing panels. This advanced machine facilitates the processing of various materials including color steel plates, galvanized sheets, and aluminum coils, making it highly versatile for different construction needs. With its dual-layer capability, this machine optimizes production efficiency, allowing for the simultaneous creation of multiple roofing profiles.
Specifications
| Parameter | Description |
|---|---|
| Suitable to process | Color steel plate, galvanized sheet, aluminum coils, etc. |
| Width of feeding material | 914-1250mm |
| Roller station | 11-18 rows or custom as customer’s requirements |
| Thickness of feeding material | 0.3-0.8mm |
| Productivity | 8-12m/min |
| Rollers’ material | 45# steel |
| Diameter of shaft | 70-80mm |
| Voltage | 380V 50Hz 3phases |
| Wall thickness of main forming machine | 12-18mm steel plate |
| Main forming machine body | 300-400 mm H steel |
| Motor power | 4-7.5 kw |
| Weight | About 5-15T |
| Custom | According to customer’s requirements |
Additional Information
Guarantee: 12 months guarantee. If any part of the machine is broken, we will supply the best part. However, if the damaged parts are due to operational error, the buyer will need to pay for the shipping fee.
After-sale service: We send a technician to your country to fix the machine. The buyer will bear all costs including visa, round-trip ticket, suitable accommodation, and a salary of $100/day.

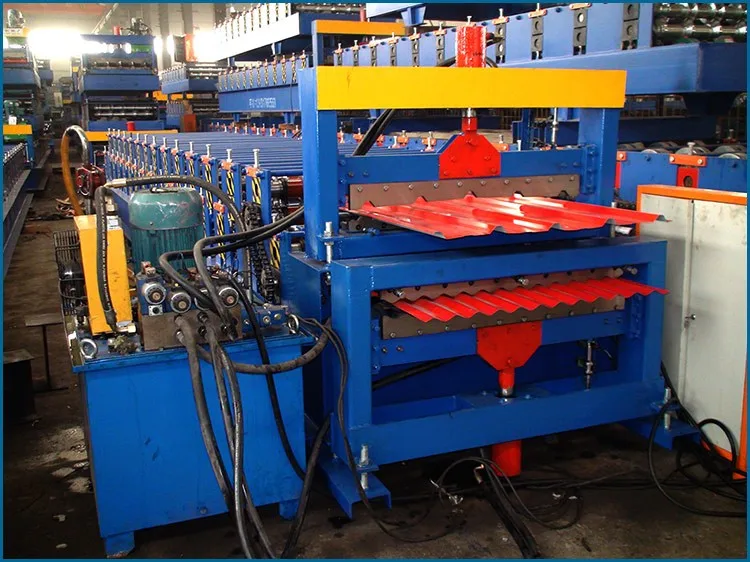

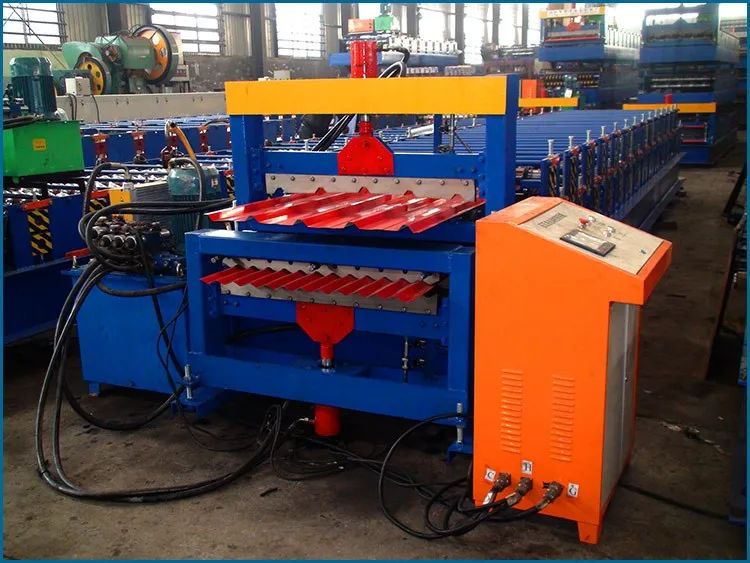

Product Pictures
