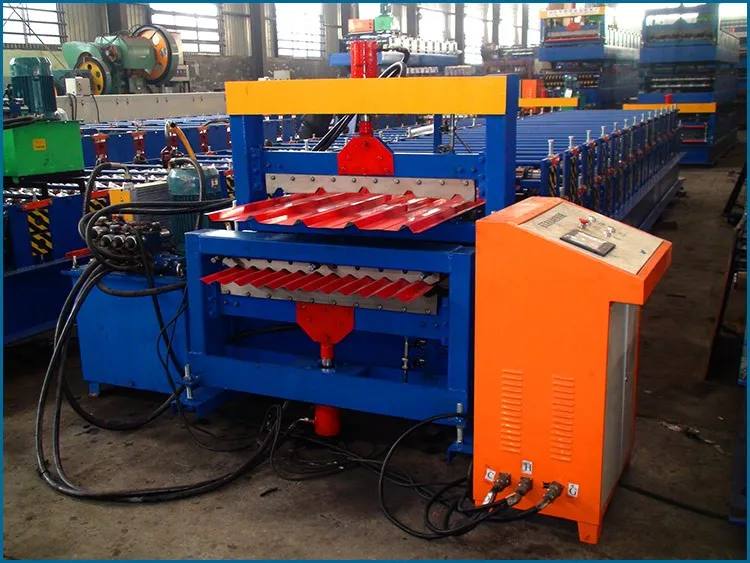

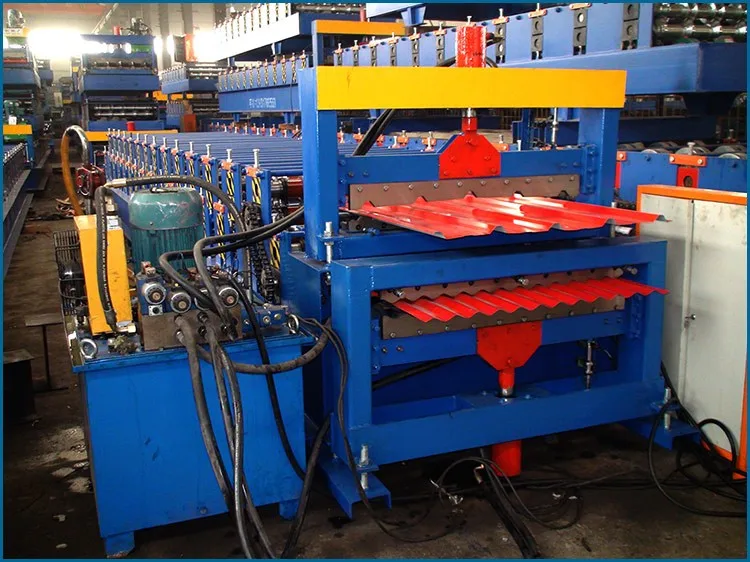

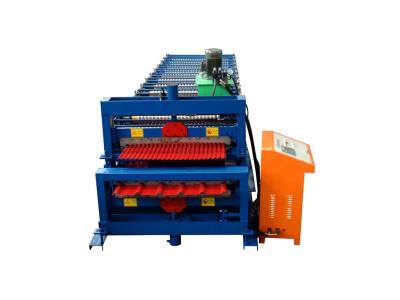

Double Layer Corrugated Metal Roofing Sheet Roll Forming Machine IBR Roofing panel double
Inquire NowDescription
The Double Layer Corrugated Metal Roofing Sheet Roll Forming Machine is designed for efficient production of IBR roofing panels. This advanced machine is capable of processing various materials, including color steel plates, galvanized sheets, and aluminum coils. With its dual-layer functionality, it allows for the simultaneous creation of different types of roofing sheets, enhancing productivity and versatility in manufacturing. This machine is an essential asset for businesses looking to streamline their roofing panel production process.
Specifications
| Parameter | Description |
|---|---|
| Suitable to process | Color steel plate, galvanized sheet, aluminum coils, etc. |
| Width of feeding material | 914-1250mm |
| Roller station | 11-18 rows or custom as customer’s requirements |
| Thickness of feeding material | 0.3-0.8mm |
| Productivity | 8-12m/min |
| Rollers’ material | 45# steel |
| Diameter of shaft | 70-80mm |
| Voltage | 380V 50Hz 3 phases |
| Wall thickness of main forming machine | 12-18mm steel plate |
| Main forming machine body | 300-400 mm H steel |
| Motor power | 4-7.5 kw |
| Weight | About 5-15T |
| Custom | According to customer’s requirements |
Additional Information
Guarantee: 12 months guarantee. If any part of the machine is broken, we will supply the best part, but if the damaged parts are due to operational error, the buyer will pay for the shipping fee.
After-sale service: We can send a technician to your country to fix the machine. The buyer should bear all costs including visa, round trip ticket, suitable accommodation, and a salary of $100 per day for the technician.
