double layer roll forming machine
Inquire NowDescription
The double layer roll forming machine is a cutting-edge solution designed for the efficient production of roof sheets. This versatile machine is capable of processing a variety of materials, including color steel plates, galvanized sheets, and aluminum coils. With its advanced welding technology, it ensures high-quality tile making, making it an ideal choice for manufacturers looking to enhance their production capabilities.

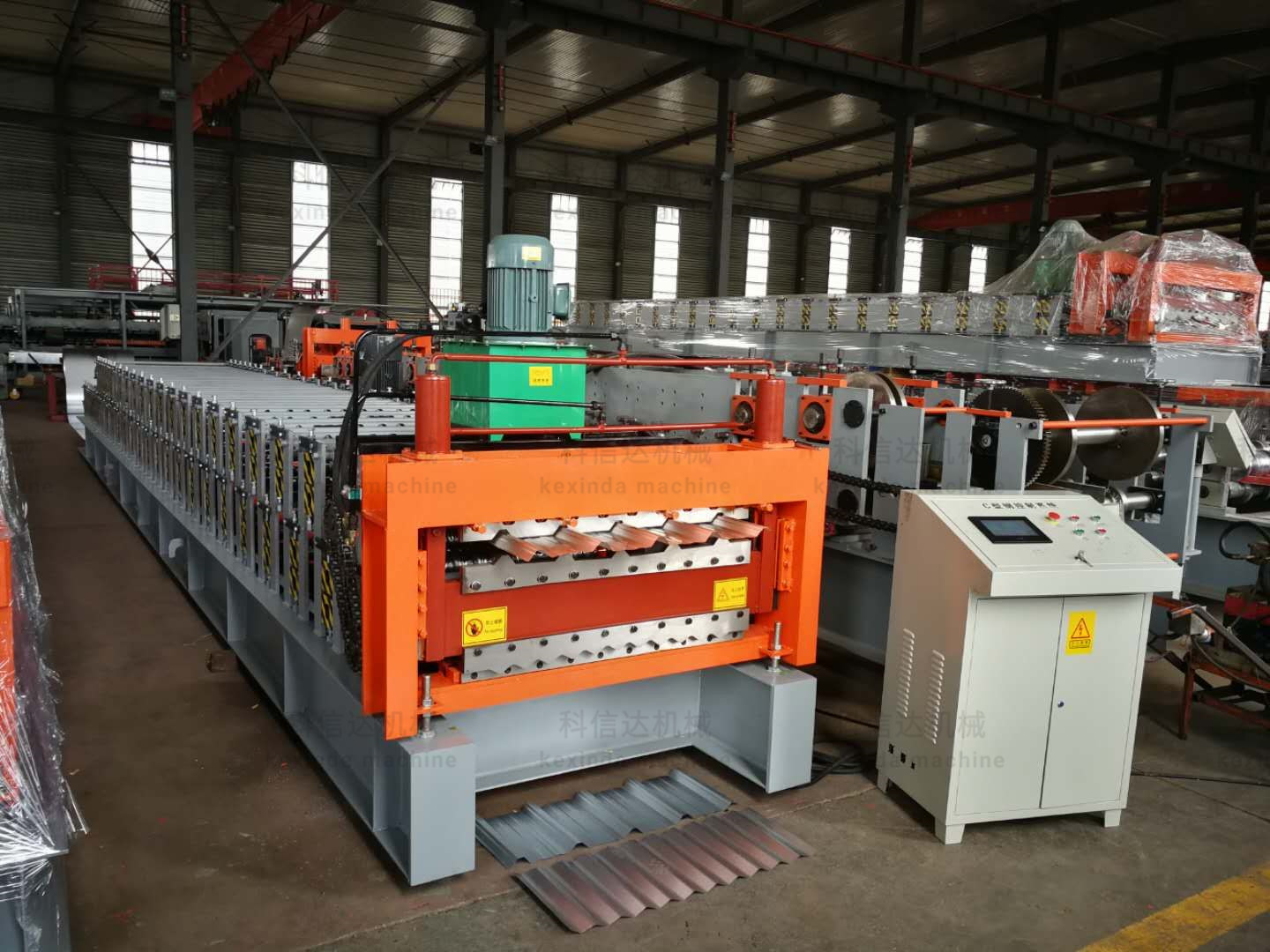

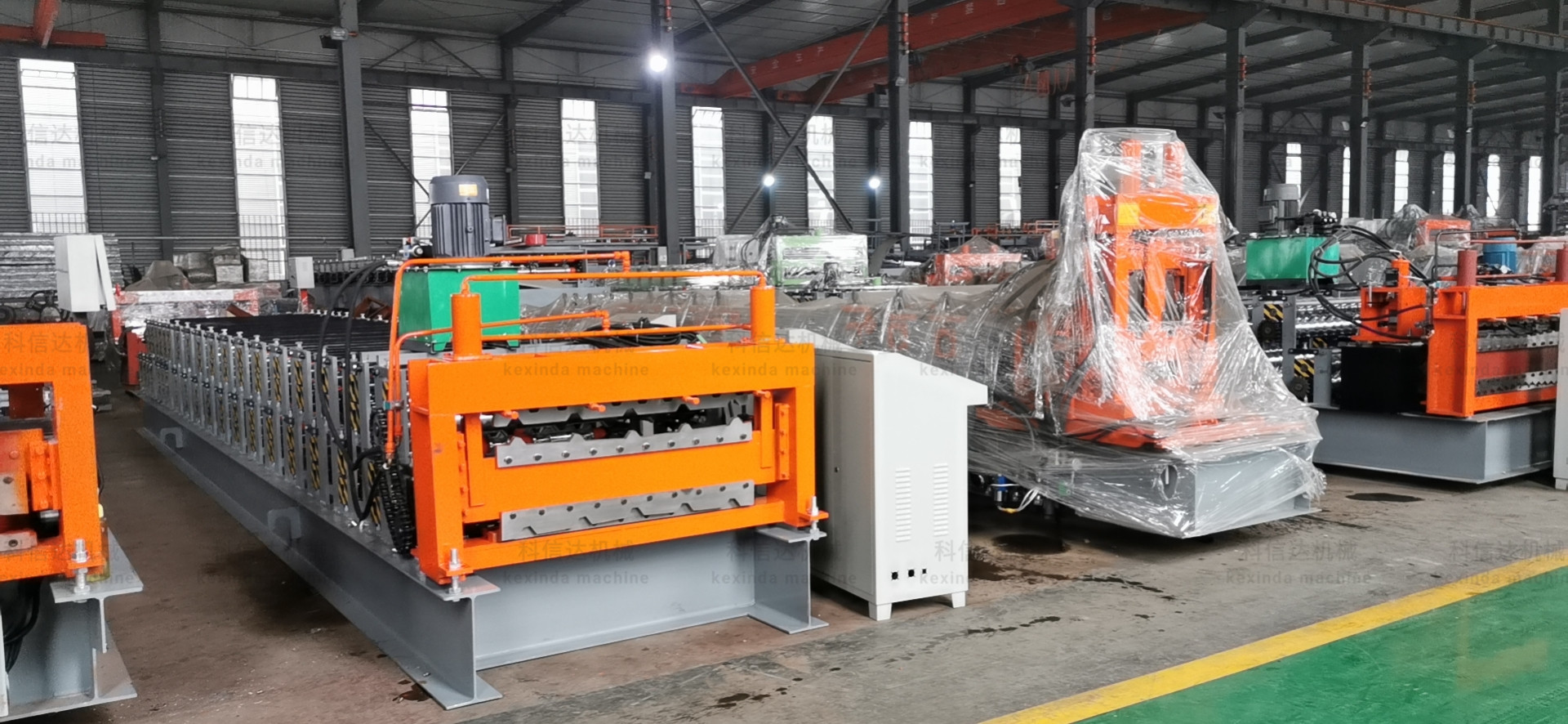

This specific model, the 836/840 double layer metal roofing sheet machine, combines the benefits of dual-layer processing with robust construction and reliability, making it a valuable addition to any production line.
Specifications
| Feature | Details |
|---|---|
| Suitable to process | Color steel plate, galvanized sheet, aluminum coils, etc. |
| Width of the feeding material | 914-1250mm |
| Roller station | 11-18 rows or custom as per customer’s requirements |
| Thickness of feeding material | 0.3-0.8mm |
| Productivity | 8-12m/min |
| Rollers’ material | 45# steel |
| Diameter of shaft | 70-80mm |
| Voltage | 380V 50Hz 3 phases |
| Wall thickness of main forming machine | 12-18mm steel plate |
| Main forming machine body | 300-400 mm H steel |
| Motor power | 4-7.5 kw |
| Weight | About 5-15T |
| Custom | According to customer’s requirements |
Additional Information
Guarantee: 12 Months guarantee. If any part of the machine is broken, we will supply the best part. However, if the damaged parts are due to operational error, the buyer will pay for the shipping fee.
After-sale service: We send a technician to your country to fix the machine. The buyer should bear all costs including visa, round-trip ticket, suitable accommodation, and a salary of 100 USD/day for the technician.

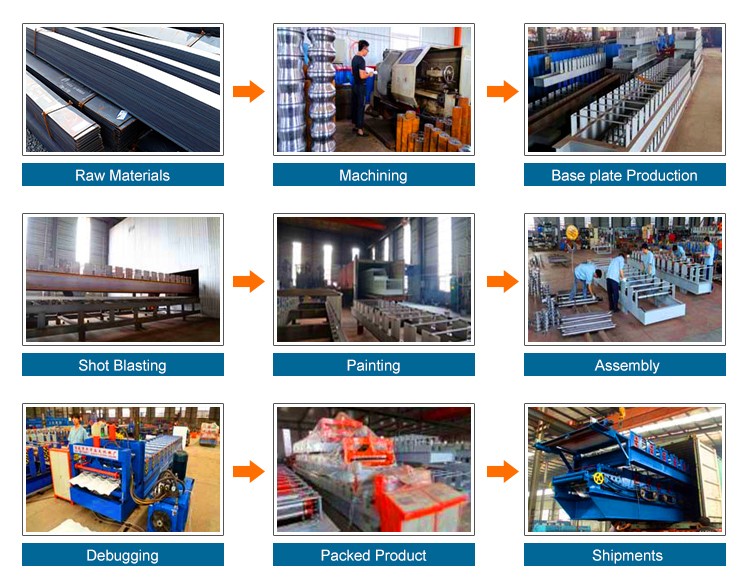

Production Process
Product Pictures
Packaging & Shipping
Our Services
Company Information
COMPANY PROFILE: Hebei Xinnuo Roll Forming Machine Co., Ltd. specializes in producing various types of professional roll forming machines and developing intelligent automatic roll forming production lines.
FAQ
