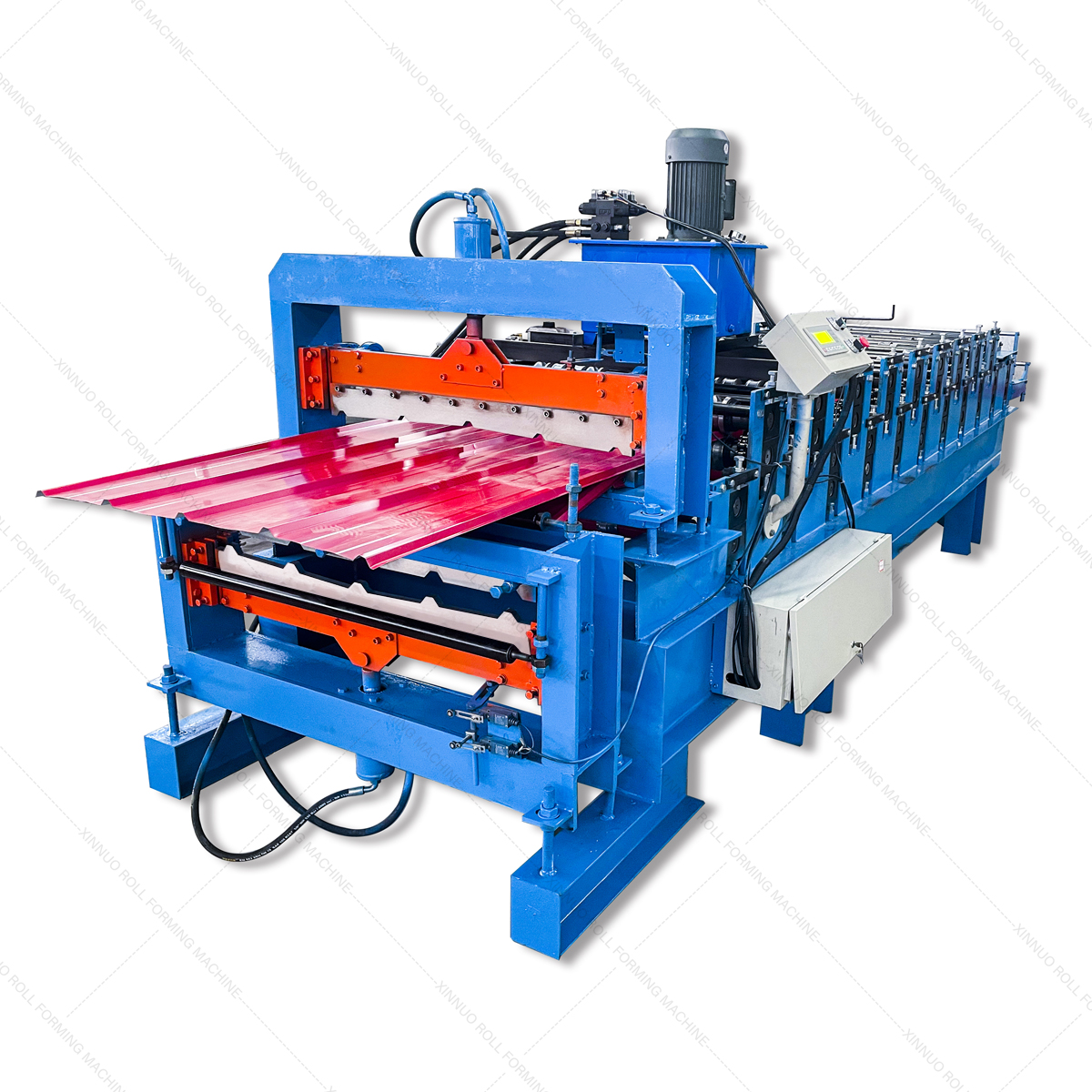

double layer roof panel double decker roll forming machine
Inquire NowDescription
The double layer roof panel double decker roll forming machine is designed for high-efficiency production of metal roofing sheets. This advanced machine can process various materials, including color steel plates, galvanized sheets, and aluminum coils. Its robust construction ensures durability and reliability, making it ideal for industrial applications. The machine features a dual-layer design, allowing for the simultaneous production of two different types of roofing panels, optimizing production rates and reducing waste.
Specifications
| Parameter | Description |
|---|---|
| Suitable to process | Color steel plate, galvanized sheet, aluminum coils, etc. |
| Width of the feeding material | 914-1250mm |
| Roller station | 11-18 rows or custom as customer’s requirements |
| Thickness of feeding material | 0.3-0.8mm |
| Productivity | 8-12m/min |
| Rollers’ material | 45# steel |
| Diameter of shaft | 70-80mm |
| Voltage | 380V 50Hz 3phases |
| Wall thickness of main forming machine | 12-18mm steel plate |
| Main forming machine body | 300-400 mm H steel |
| Motor power | 4-7.5 kw |
| Weight | About 5-15T |
| Custom | According to customer’s requirements |
Additional Information
Guarantee: 12 months guarantee. If any part of the machine is broken, the best part will be supplied. However, if the damaged parts are due to operational error, the buyer will pay for the shipping fee.
After-sale service: Technicians can be sent to your country to fix the machine. The buyer is responsible for all costs including visa, round-trip ticket, suitable accommodation, and a salary of $100/day.
