double layer roof panel double decker roll forming machine
Inquire NowDescription

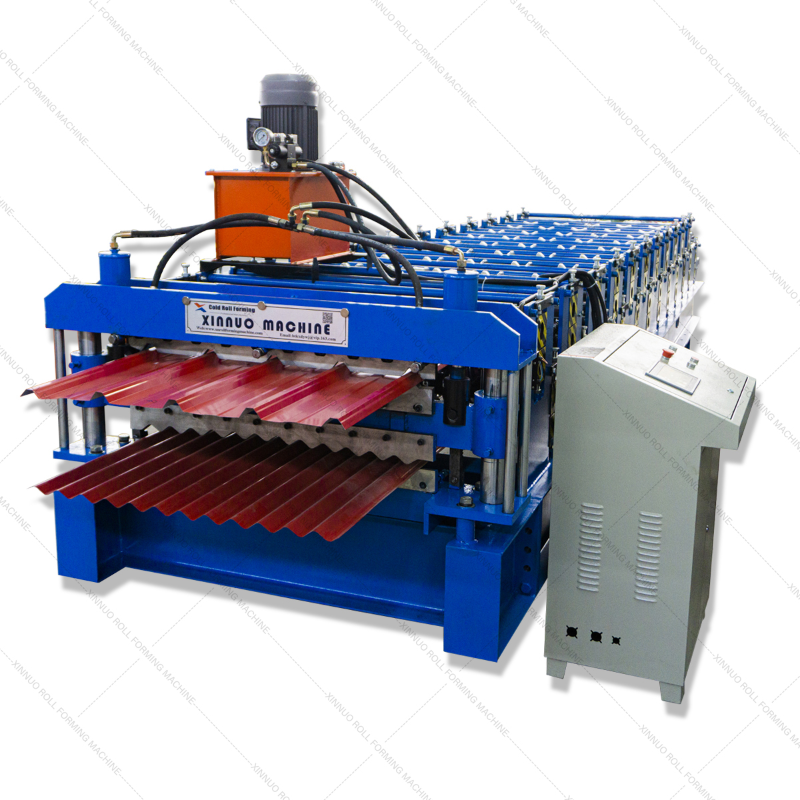

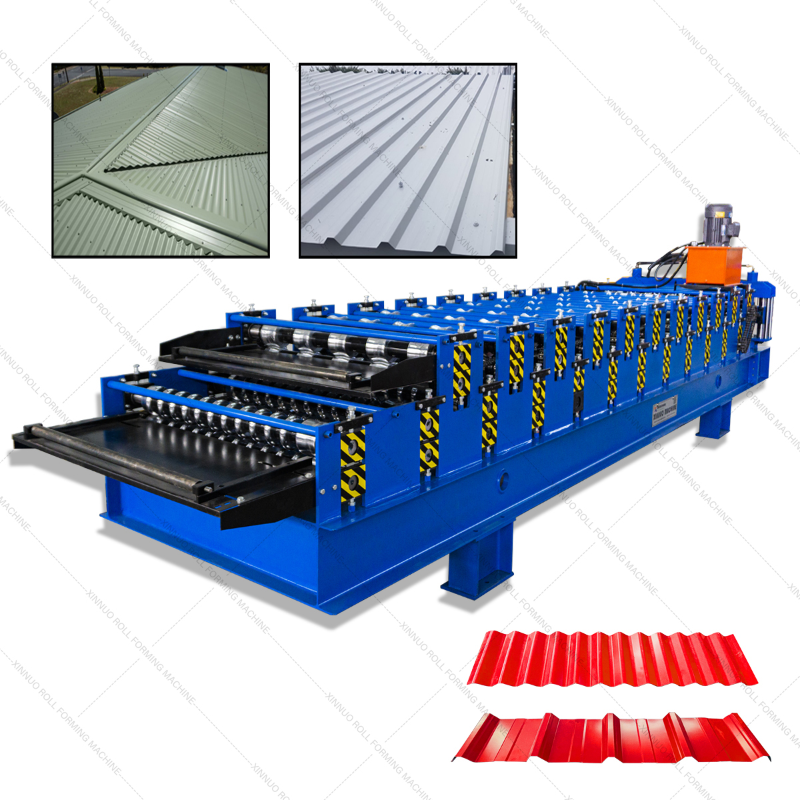

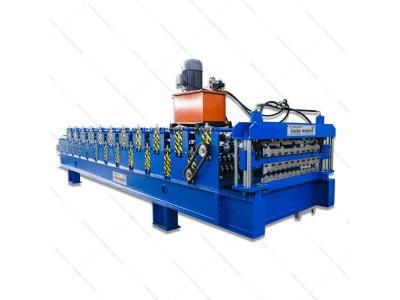

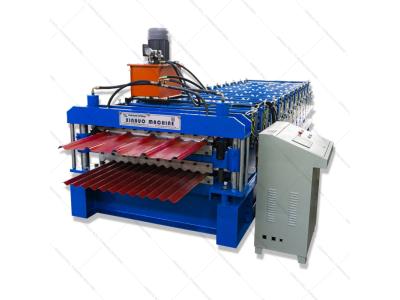

The double layer roof panel double decker roll forming machine is an advanced piece of equipment designed for the efficient production of metal roofing sheets. This versatile machine is capable of processing various materials including color steel plates, galvanized sheets, and aluminum coils. Its innovative design allows for the creation of two different profiles in a single pass, enhancing productivity while maintaining high quality.
With features such as customizable roller stations and a robust construction, this machine stands out in the market for its reliability and performance. The 836+840 model offers a width feeding range of 914-1250mm and a thickness range of 0.3-0.8mm, making it suitable for diverse applications in the roofing industry.
Specifications
| Attribute | Details |
|---|---|
| Suitable to process | Color steel plate, galvanized sheet, aluminum coils, etc. |
| Width of feeding material | 914-1250mm |
| Roller station | 11-18 rows or custom as customer’s requirements |
| Thickness of feeding material | 0.3-0.8mm |
| Productivity | 8-12m/min |
| Rollers’ material | 45# steel |
| Diameter of shaft | 70-80mm |
| Voltage | 380V 50Hz 3phases |
| Wall thickness of main forming machine | 12-18mm steel plate |
| Main forming machine body | 300-400 mm H steel |
| Motor power | 4-7.5 kw |
| Weight | About 5-15T |
| Custom specifications | According to customer’s requirements |
Additional Information
Guarantee: 12 Months guarantee. If any part of the machine is broken, we will supply the best part, but if the damaged parts are due to operational error, the buyer will pay for the shipping fee.
After-sale service: We send a technician to your country to fix the machine. The buyer should bear all costs, including visa, round-trip ticket, suitable accommodation, and a salary of 100 USD/day for the technician.
