double layer roof panel double decker roll forming machine
Inquire NowDescription
The double layer roof panel double decker roll forming machine is a state-of-the-art solution designed for producing high-quality metal roofing sheets. This advanced machine is capable of processing various materials, including color steel plates, galvanized sheets, and aluminum coils. With its dual-layer capability, it optimizes production efficiency while delivering precision and durability in every sheet produced. The machine is built to meet diverse industrial needs and is customizable according to customer specifications.
Specifications
| Parameter | Description |
|---|---|
| Suitable to process | Color steel plate, galvanized sheet, aluminum coils, etc. |
| Width of the feeding material | 914-1250mm |
| Roller station | 11-18 rows or custom as per customer’s requirements |
| Thickness of feeding material | 0.3-0.8mm |
| Productivity | 8-12m/min |
| Rollers’ material | 45# steel |
| Diameter of shaft | 70-80mm |
| Voltage | 380V 50Hz 3 phases |
| Wall thickness of main forming machine | 12-18mm steel plate |
| Main forming machine body | 300-400 mm H steel |
| Motor power | 4-7.5 kW |
| Weight | About 5-15T |
| Custom | According to customer’s requirements |
Additional Information
Guarantee: 12 months guarantee. If any part of the machine is broken, we will supply the best part. However, if the damaged parts are due to operational error, the buyer will pay for the shipping fee.
After-sale service: We send a technician to your country to fix the machine. The buyer should bear all costs, including visa, roundtrip ticket, suitable accommodation, and a salary of 100 USD/day for the technician.

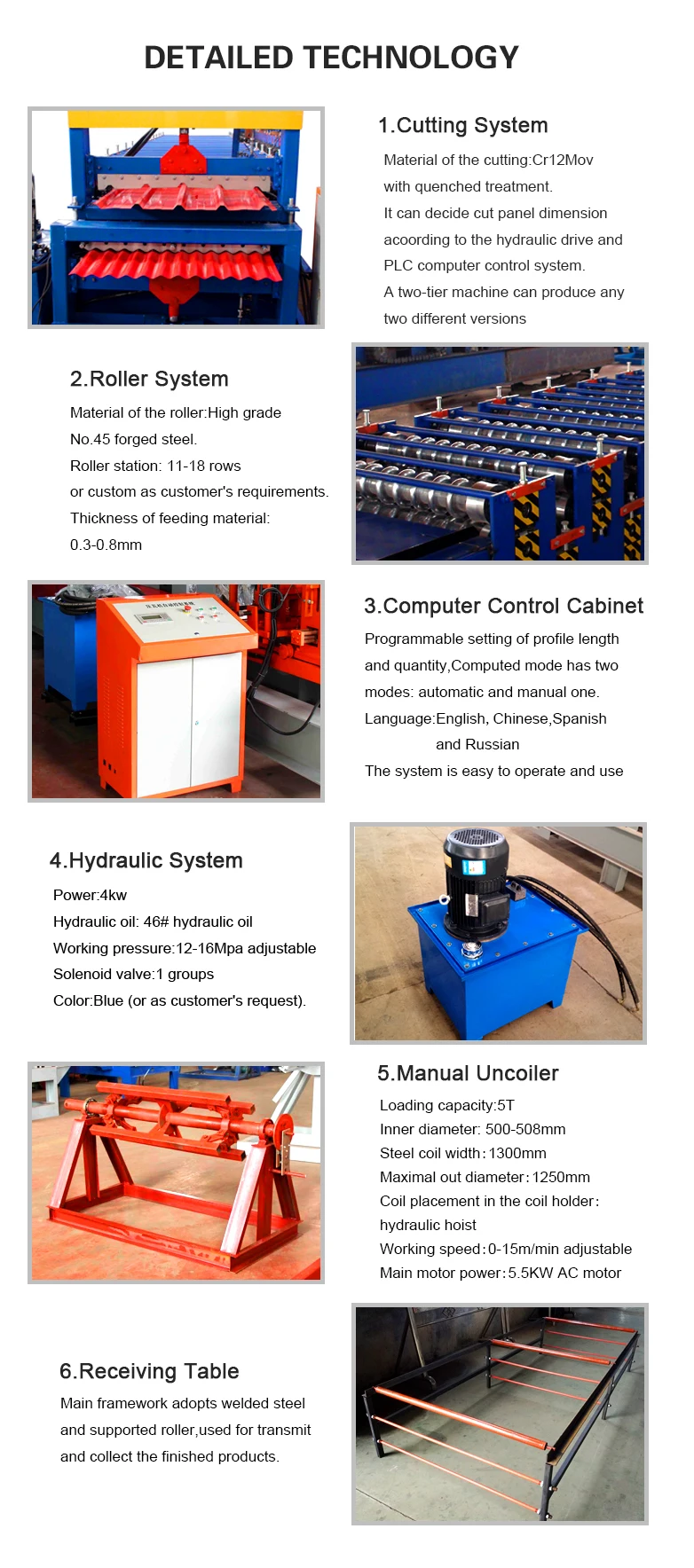

Product Pictures
