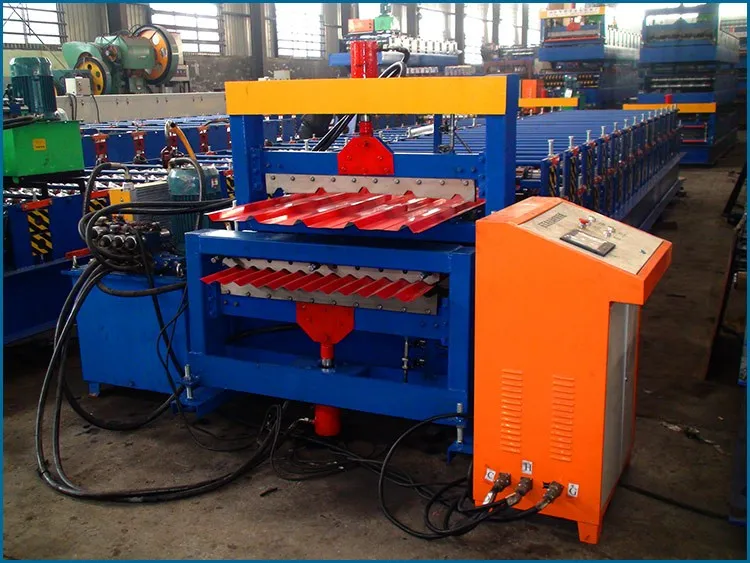

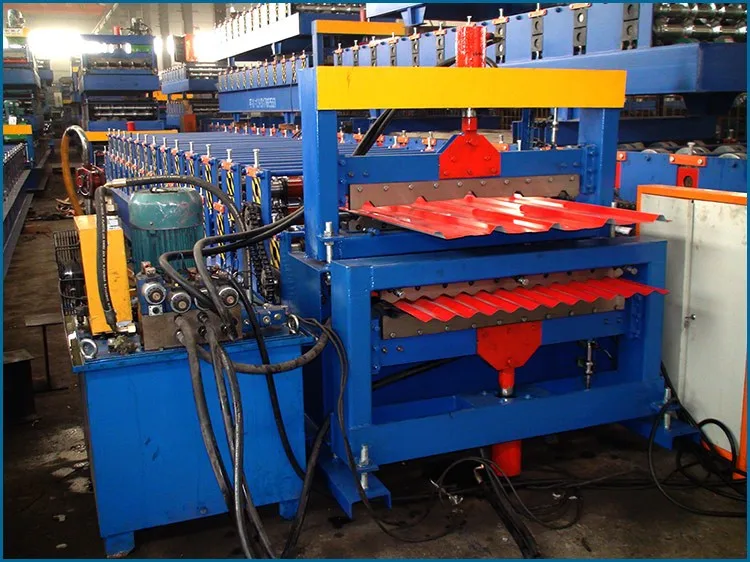

Double layerIBR Roof Profile with Metal Corrugated Roof Sheet Panel Line
Inquire NowDescription
The Double Layer IBR Roof Profile with Metal Corrugated Roof Sheet Panel Line is an advanced machinery solution designed for the efficient processing of various materials including color steel plates, galvanized sheets, and aluminum coils. This robust machine offers versatility and precision in producing high-quality roofing sheets, ensuring durability and aesthetic appeal for a variety of construction applications.
Equipped with 836+840 double layer functionality, it allows users to produce multiple profiles with ease, adapting to specific project requirements. The machine is engineered to deliver exceptional productivity rates of 8-12 meters per minute, making it an ideal choice for manufacturers seeking to enhance their operational efficiency.
Specifications
| Attribute | Details |
|---|---|
| Suitable to process | Color steel plate, galvanized sheet, aluminum coils, etc. |
| Width of the feeding material | 914-1250mm |
| Roller station | 11-18 rows or custom as customer’s requirements |
| Thickness of feeding material | 0.3-0.8mm |
| Productivity | 8-12m/min |
| Rollers’ material | 45# steel |
| Diameter of shaft | 70-80mm |
| Voltage | 380V 50Hz 3 phases |
| Wall thickness of main forming machine | 12-18mm steel plate |
| Main forming machine body | 300-400 mm H steel |
| Motor power | 4-7.5 kW |
| Weight | About 5-15T |
| Custom | According to customer’s requirements |
Additional Information
Guarantee: 12 months guarantee. If any part of the machine is broken, we will supply the best part. However, if the damaged parts are due to operational error, the buyer will pay for the shipping fee.
After-sale service: We send technicians to your country to fix the machine. The buyer should bear all costs including visa, round trip ticket, and suitable accommodation, along with a salary of $100 per day.
