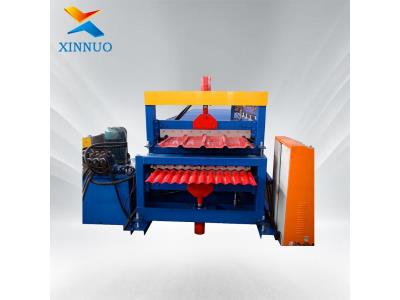

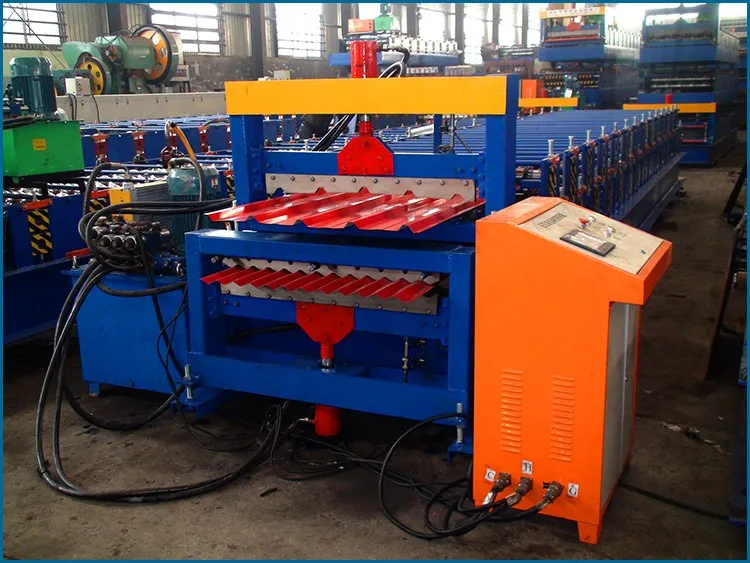

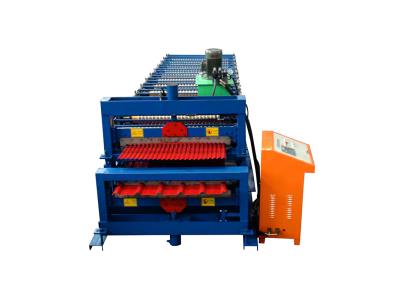

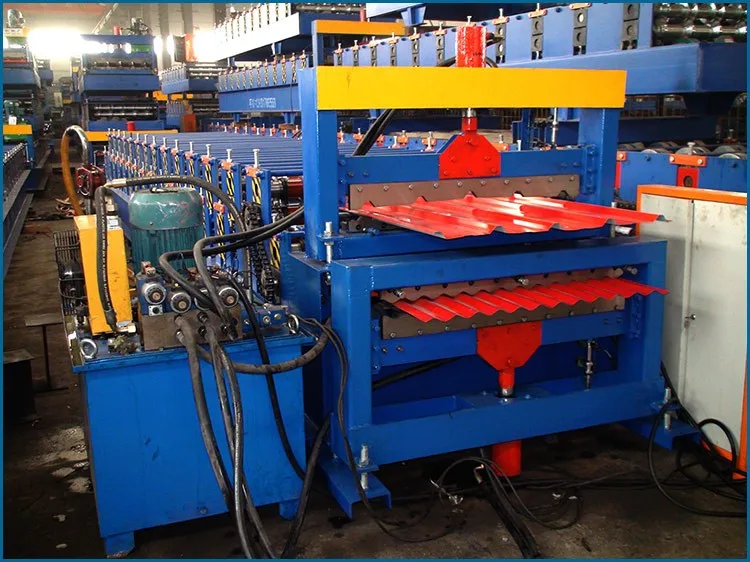

Double layerIBR Roof Profile with Metal Corrugated Roof Sheet Panel Line
Inquire NowDescription
The Double Layer IBR Roof Profile with Metal Corrugated Roof Sheet Panel Line is an advanced production system designed for creating high-quality metal roofing sheets. This machine is particularly suitable for processing materials such as color steel plates, galvanized sheets, and aluminum coils, making it a versatile addition to any manufacturing setup. With its robust construction and user-friendly design, this machine ensures efficient production while maintaining high standards of quality.
Specifications
| Parameter | Description |
|---|---|
| Suitable to process | Color steel plate, galvanized sheet, aluminum coils, etc. |
| Width of feeding material | 914-1250mm |
| Roller station | 11-18 rows or custom as customer’s requirements |
| Thickness of feeding material | 0.3-0.8mm |
| Productivity | 8-12m/min |
| Rollers’ material | 45# steel |
| Diameter of shaft | 70-80mm |
| Voltage | 380V 50Hz 3phases |
| Wall thickness of main forming machine | 12-18mm steel plate |
| Main forming machine body | 300-400 mm H steel |
| Motor power | 4-7.5 kw |
| Weight | About 5-15T |
| Custom | According to customer’s requirements |
Additional Information
Guarantee: 12 Months guarantee. If any part of the machine is broken, we will supply the best part. However, if the damage is due to operational error, the buyer will be responsible for the shipping fee.
After-sale service: We send a technician to your country to fix the machine. The buyer should cover all costs including visa, roundtrip ticket, suitable accommodation, and a salary of 100 USD/day.
