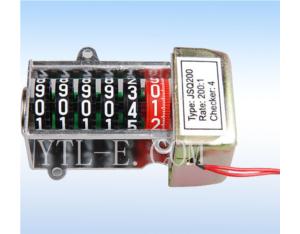

Double Shielding Counter
Inquire NowDescription
The Double Shielding Counter is a highly efficient device designed to operate within a working voltage range of 3V to 5.5V. It features advanced technology that ensures precise counting measurements, making it ideal for various applications. With a robust motor resistance of 450±50Ω and a remarkable output torque of 35-50μNM at 4.0V, this counter is engineered for reliability and performance. The device is capable of operating under a wide temperature range, from -25℃ to +55℃, and can withstand limited temperatures between -35℃ to +65℃, as well as storage conditions from -25℃ to +80℃. Designed for durability, it boasts over a billion operational times without breakdown, ensuring long-lasting functionality.
Specifications
| Attribute | Details |
|---|---|
| Model No. | JSQ200 |
| Working Voltage | 3V – 5.5V |
| Applicable Pulse Width | 80ms – 300ms |
| Motor Resistance | 450±50Ω |
| Output Torque | 35 – 50μNM at 4.0V |
| Operation Temperature | -25℃ to +55℃ |
| Limited Temperature | -35℃ to +65℃ |
| Storage Temperature | -25℃ to +80℃ |
| Working Times of No Breakdown | > 1 Billion Times |
| Figure Display | 5+1; 6+1 |
Additional Information
- Designed for high durability and reliability.
- Ideal for various counting applications.
