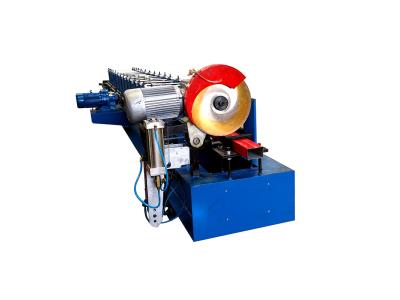

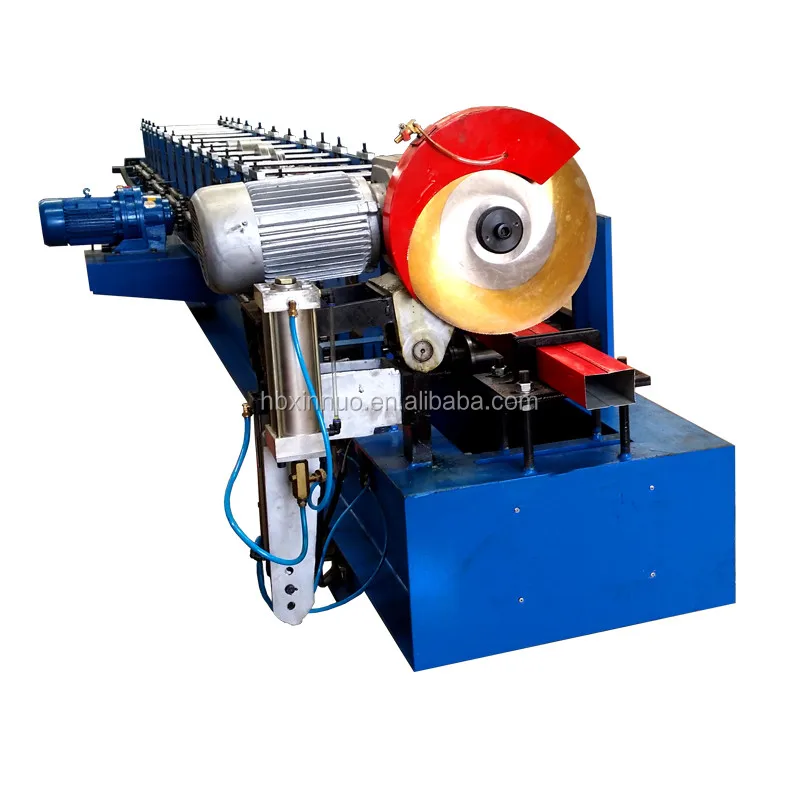

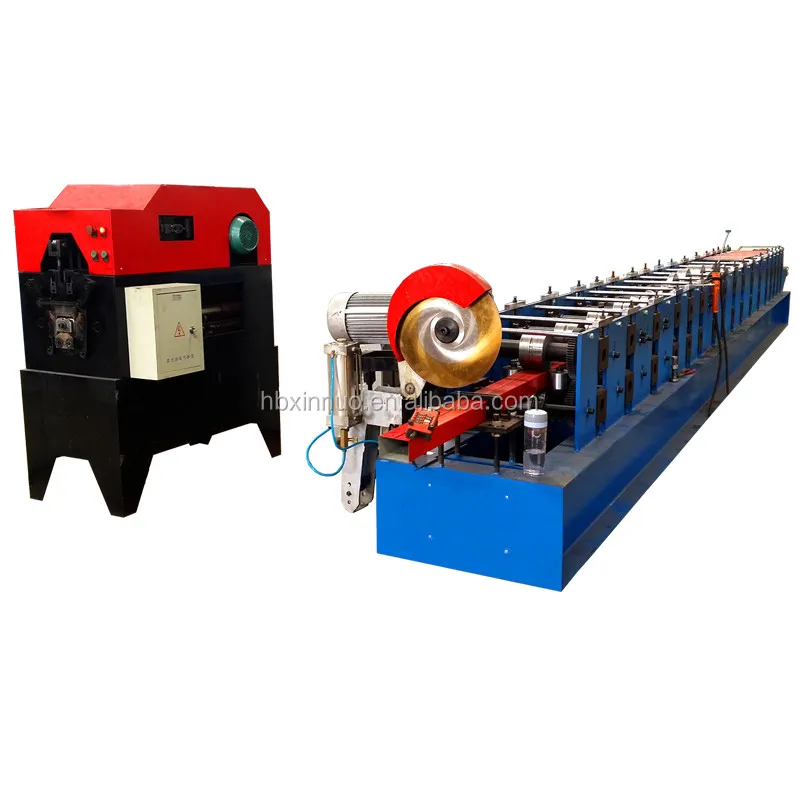

downpipe machine stainless steel iron sheet roll forming machine
Inquire NowDescription
The downpipe machine is a state-of-the-art stainless steel iron sheet roll forming machine designed for efficiency and precision. Ideal for processing color steel plates, this robust machine features a compact design that allows for easy integration into existing production lines. With a versatility in plate widths ranging from 200mm to 600mm, it accommodates various project requirements. The machine’s advanced roller system, consisting of 14-16 rows, ensures high-quality output while maintaining durability and longevity.
Specifications
| Attribute | Details |
|---|---|
| Suitable to process | Color steel plate |
| Width of the plate | 200-600mm |

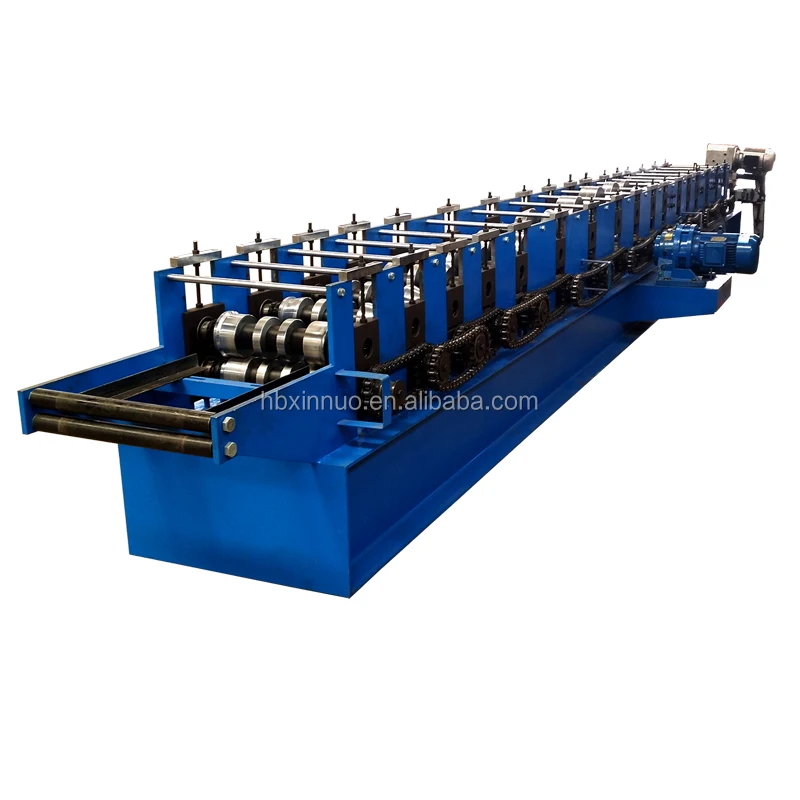

| Rollers | 14-16 rows |
| Dimensions | 8.6 * 0.8 * 1.2 m |
| Power | 4 + 3 kW |
| Thickness of the plate | 0.3-0.8 mm |
| Productivity | 8-12 m/min |
| Diameter of the roller | 52 mm |
| Weight | About 4.5 T |
| Voltage | 380V 50Hz 3 phases |
| Rolling material | Carbon Steel 45# |
| Material of the cutting plate | Cr12 |
| Processing precision | Within 1.00 mm |
| Control system | PLC control |
| Side panel of machine | 14 mm |
| Main structure of the machine | 300 H steel |
| Weight (Main Structure) | About 4.6 T |
Additional Information
Packing & Delivery:
| Packaging Details: | Main machine is nude, the computer control box is packed with wooden frame. |
| Delivery Detail: | 20 days |
