downpipe roll forming machine
Inquire NowDescription

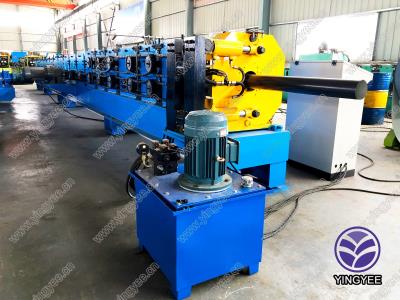

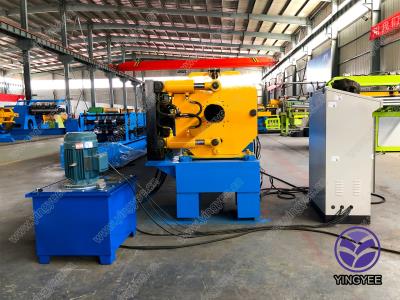

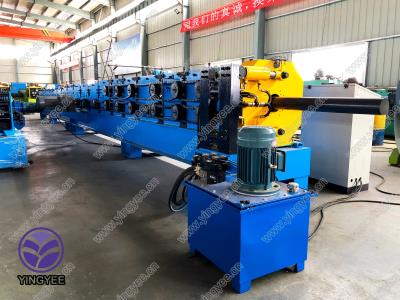

The Downpipe Roll Forming Machine is engineered to efficiently produce high-quality downpipes with precision and ease. This robust machine incorporates various components designed for effective operation, including a manual de-coiler, feeding guide system, main roll forming machine, hydraulic cutting system, and a PLC control system. With its ability to handle materials like GI, PPGI, and color steel, this machine serves as a vital asset for industries focused on metal fabrication.
Designed for versatility, it features adjustable input widths and achieves high forming speeds between 8 to 10 meters per minute. The advanced hydraulic system and PLC control ensure smooth operation and quick adjustments for custom lengths, making this machine user-friendly and efficient.
Specifications
| Component | Description |
|---|---|
| Manual De-coiler | Capacity: 3 tons, Diameter range: 300-450mm, Way of de-coiling: Passive |
| Feeding Guide System | Input width adjustable; guiding system consists of several rollers |
| Main Roll Forming System |
|
| Cutter | Material of cutter blade: Cr12 mould steel with quenched treatment, Length measuring: Automatic length measuring, Tolerance of length: +/- 1.5mm |
| Total Weight | About 5 tons |
| Machine Size | Approximate size: L*W*H 8m*1.0m*1.5m |
Additional Information
The Downpipe Roll Forming Machine is equipped with a powerful hydraulic system rated at 3KW and features a Panasonic PLC control system for precise operation. The system allows for both automatic and manual modes, facilitating easy adjustments and operation. Ideal for industrial use, this machine is crafted for longevity and reliability, ensuring optimal performance in metal forming tasks.
