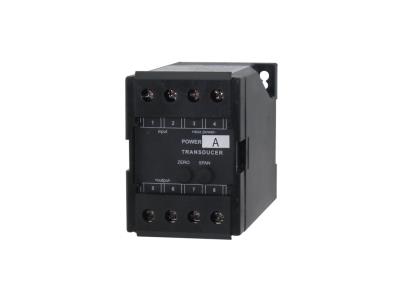

DPA Power Transducer
Inquire NowDescription
The DPA Power Transducer is a highly advanced device designed to convert AC/DC voltage or current inputs into a load-independent output signal. Featuring exceptional temperature characteristics and remarkable stability, this transducer utilizes root mean square (RMS) measurement to accurately process distorted waveforms. Meeting the standards of IEC 60688, it also complies with insulation requirements outlined in IEC 60255-5 and successfully passes high-frequency disturbance tests per IEC 60255-22 for Class III test voltage.
With enhancements in circuit design, materials, and structure, the DPA Power Transducer offers significantly improved measurement accuracy and stability compared to earlier models. It is an ideal solution for various applications, including medium and low voltage systems, ensuring reliable metering of distribution feeders, transformers, and motors.
Features
- 2/0.5 measurement accuracy
- Support customized parameters
- RMS measurement and output
- 500ms response time
- 35mm Din rail mounting
- High load capacity and reliability
- Low ripple output
- A wide range of both D.C. current and voltage inputs are offered
Application
- Medium and low voltage systems
- Metering of distribution feeders, transformers, generators, capacitor banks, and motors
- Optional association of an instantaneous parameter to one of the analogue outputs (0…20 mA / 4…20 mA)
- Prevention of earth loops in connected measuring sources
- Motor control, panel power monitoring, and power distribution system management
Specifications
| Signal Inputs | |
|---|---|
| Input rating | DPA 4-20mA, 0-20mA |
| Overload | 1.2 times rated continuous; 5sec @ 10 times rated current; 1sec @ 2 times rated voltage |
| Burden | 0.5VA |
| Measurement Output | |
| Standard outputs | 4~20mA or 0~5V |
| (others on request) | 0~20mA; 5~10V; 0~10V |
| Ripple | <0.5% peak to peak |
| Load Resistance | Current output: 0<Lr<510Ω; |
| Voltage output: Lr>10KΩ | |
| Measurement Accuracy | |
| Reference IEC 60688 | 0.5% or 0.2% @ F.S. |
| Adjustment | Potentiometer “ZERO” and “SPAN” |
| Frequency influence | <0.02% per Hz |
| Load influence | <0.25% of F.S. for specific load range |
| Auxiliary Supply | |
| Rating | 85-265Vac/dc; Optional 12V, 24V, 48VDC |
| Consumption | <3VA |
| Galvanic isolation between I/O and AUX | |
| Test voltage | 2KV RMS 50Hz for 1 minute |
| Impulse | 4KV 1.2/50μsec waveform |
| Temperature requirements | |
| Operating | -10~55℃ |
| Storage | -40~70℃, 20~93%RH; Non-condensing |
