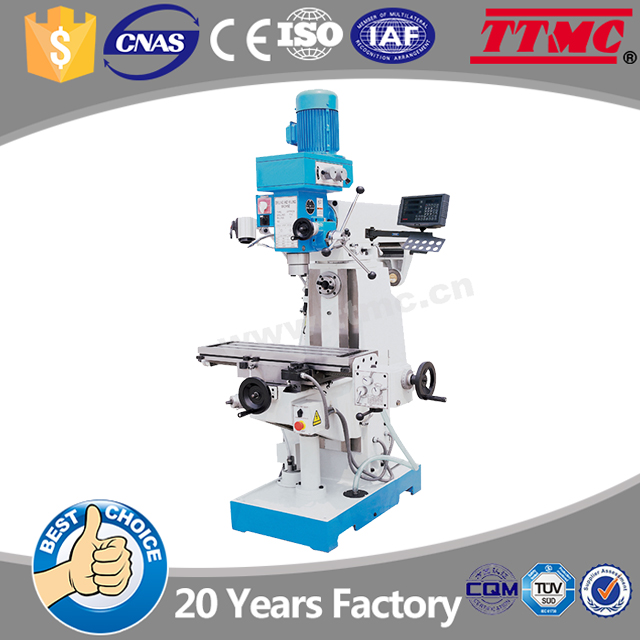

Drilling and Milling machine
Inquire NowDescription
The Drilling and Milling Machine is a versatile tool designed for precision engineering tasks, enabling both vertical and horizontal drilling as well as milling operations. Its robust construction and advanced features make it suitable for a variety of applications, from hobbyist projects to professional machining. This machine is equipped to handle a maximum drilling diameter of 50mm and can accommodate end milling up to 100mm, ensuring that it meets the demands of both small and large jobs. With additional features available, such as power feeds on the Y and Z axes and a digital readout (DRO), this machine can be customized to enhance its performance and usability.
Specifications
| Attribute | Details |
|---|---|
| Item No. | 383002 |
| Model | ZX7550CW |
| Max drilling dia | 50mm |
| Max end milling dia | 100mm |
| Max vertical milling dia | 25mm |
| Max tapping dia | M16 |
| Distance from spindle nose to table surface | 70-420 mm |
| Spindle speed range | 110-1760rpm (V) 38-1335 (H) |
| Spindle travel | 120 mm |
| Table size | 800X240 mm |
| Table travel | 400X230 mm |
| Motor power | 0.85/1.5kW (V) 2.2kW (H) |
| Overall dimension | 114X122X222 cm |
| N.W. / G.W. | 850/1050 kg |
Additional Information
Standard accessories include a cooling system, enhancing the machine’s efficiency during operation. Optional accessories like a digital readout (DRO) are available for those seeking additional precision in their machining tasks.
