Dry type power transformer
Inquire NowDescription

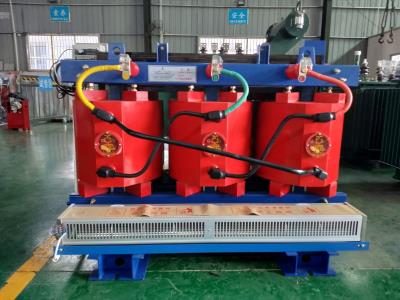

The SC(B) Series Dry Epoxy Resin Distribution Power Transformer is an innovative solution designed to meet the demands of modern electrical distribution systems. Featuring a compact and fireproof design, this transformer is ideal for indoor installation, allowing for direct placement in load centers. It boasts several benefits including low noise levels, minimal partial discharge, high mechanical strength, and exceptional resistance to short circuits and impacts. The SC(B)10, SC(B)11, and SC(B)13 models are specifically engineered for a variety of applications, making them suitable for hotels, high-rise buildings, business centers, residential communities, gymnasiums, petrochemical plants, airports, harbors, metros, mines, and drilling platforms.

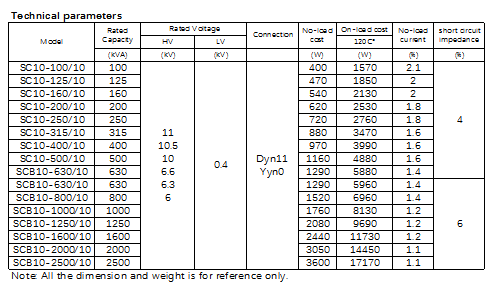

Specifications
| Standard | GB1094.11-2007, GB/T10228-2008, IEC60726 |
|---|---|
| Capacity | 50~2500 KVA |
| Voltage | 10 KV, 35 KV |
| Tapping Range | ±2×2.5% or ±5% |
| Voltage Regulating | No excitation or on-load voltage regulation |
| Frequency | 50 Hz or 60 Hz |
| Connection | Dyn11 or Yyn0 |
| Insulation Level | LI75AC35/AC5 |
| Partial Discharge | ≦10PC |
| Insulation Grade | F |
| Max Temperature Rise | 100K |
| Cooling Way | AN or AF |
| Protection Class | IP00, IP20 (indoor), IP23 (outdoor) |
| Working Environment | Ambient temperature ≦40℃, Altitude ≦1000M (contact for installations beyond normal use) |
Additional Information
For optimal performance, ensure the transformer is installed in compliance with environmental and operational guidelines. Regular maintenance checks are recommended to ensure longevity and reliability.
