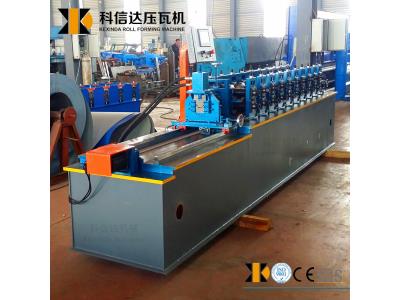

Drywall Galvanized Sheet Light Steel Profile Metal T Bar Stud/Track Roll Forming Machine
Inquire NowDescription
The Drywall Galvanized Sheet Light Steel Profile Metal T Bar Stud/Track Roll Forming Machine is engineered for precision and efficiency in the production of T-bar and track systems. This advanced machine features a comprehensive configuration, including a Manual Uncoiler, Guiding Platform, Coil Strip Leveler, and a robust Main Machine for roll forming. It is equipped with an Electro-Motor, Cutting Device, Hydraulic Station, and a PLC Control system, ensuring seamless operation and high-quality output. With its user-friendly design and reliable performance, this machine is ideal for manufacturers seeking to enhance their production capabilities.
Specifications
| Feature | Specification |
|---|---|
| Main Frame | 250mm H-Beam |
| Main Power | 3 kW |
| Power Supply | 380V, 3-Phase, 50Hz |
| Forming Speed | 15-25 m/min |
| Roller Diameter | 80mm |
| Hydraulic Pressure | 10-12 MPa |
| Forming Size | 840mm |
| Feeding Thickness | 0.3-0.8mm |
| Feeding Width | 1000mm |
| Backboard Thickness | 14mm |
| Chain Size | 20mm |
| Cutter Standard | Cr12 |
| Roller Standard | Cr12 |
| Cr-Plating Size | 0.05mm |
| Overall Size | 6500 × 1500 × 1800mm |
Additional Information
Configurations include a Manual Uncoiler, Guiding Platform, Coil Strip Leveler, Main Machine Of Roll Forming, Electro-Motor, Cutting Device, Hydraulic Station, PLC Control, and Supporter Table for enhanced productivity.
