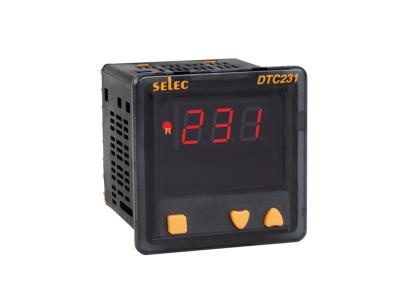

DTC231-ON-OFF Control, (J,K) Sensor Input, 72X72 mm
Inquire NowDescription
The DTC231-ON-OFF Control is a versatile temperature controller designed for precise temperature management in various applications, including industrial, commercial, and domestic settings. With its robust capabilities, it monitors environmental temperatures and adjusts them according to a preset range, ensuring optimal comfort and safety. The device features a 3-digit single display and supports J and K thermocouple sensor inputs, making it an excellent choice for those seeking reliability and accuracy in temperature control.
Features
- 3 digit single display temperature controller
- Thermocouple: J, K sensor input
- ON-OFF control
- Single set point
- 10A relay control
- Dimensions: 72 mm x 72 mm
- Supply Voltage: 90 to 270V AC/DC
Specifications
| Display Type | 7 Segment LED Dual Display |
|---|---|
| Display Configuration | 3 Digits |
| Type of Input | Thermocouple (J,K) |
| Resolution | Fixed 1° |
| Accuracy | 0.25% of F.S ±1°C (20 min warm up time) |
| Control Output | RELAY |
| Supply Voltage | 90 to 270V AC/DC |
| Size | 72 x 72 mm |
| Mounting Type | Panel Mount |
Dimension
