Dummy Load bank 500kw
Inquire NowDescription

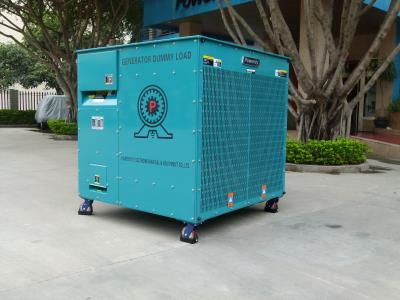

The Dummy Load Bank 500kW is a highly efficient, mobile testing solution designed for generator, electrical, and marine load testing. Featuring a unique design that minimizes heat production, this load bank utilizes a high-voltage heating element, allowing for continuous operation even within assembly plants. Its innovative U-type heating element is equipped with cooling fins to ensure optimal performance.
This unit provides a versatile resistive load that adjusts from 0 to its maximum capacity, making it user-friendly and easy to operate with its step load and variable adjustment functionalities. The integrated digital meter offers precise readings of line voltage, line amperage, frequency, and optional power factor and power measurements. The Dummy Load Bank is built to support year-round operation, even in ambient temperatures of up to 55°C, and is suitable for both indoor and outdoor use with its robust NEMA 1 enclosure.
Specifications
| Attribute | Details |
|---|---|
| Case | A heavy duty NEMA 1 enclosure with intake and exhaust protection louver, featuring safety instructions and warning labels. Equipped with four swivel caster wheels for easy transportation. Can be forklifted or lifted using top-mounted lifting eyes. |
| Cooling | Horizontal force air cooling with a heavy-duty three-phase industrial fan blower powered by the test load or an external supply. |
| Other AC Voltage | Test voltage can be applied up to ±15% from rated AC voltage at both 50Hz and 60Hz. |
| Controls | 8 step load switches: 9 (Variac), 18, 27, 54, 105, 105, 105, 105 kW. Features a digital multi-meter. |
| Resistor Elements | Metal sheathed elements made from high-grade nickel resistance wire in a U-type form with cooling fins. |
| Digital Metering | Power monitoring meter displaying amperage, voltage, KVA, KW, with data logging functionality, PC connectivity, and printing options. |
| Input Connections | Terminal blocks provided for wiring connections. |
| Dimension | 1580 x 1600 x 1470 mm |
| Weight | 1200 kg |
Additional Information
- Designed for both indoor and outdoor usage.
- Supports year-round operation in various conditions.
