DYP 8000 Center pivot UMC gearbox Senninge IWOB sprinkler
Inquire NowDescription

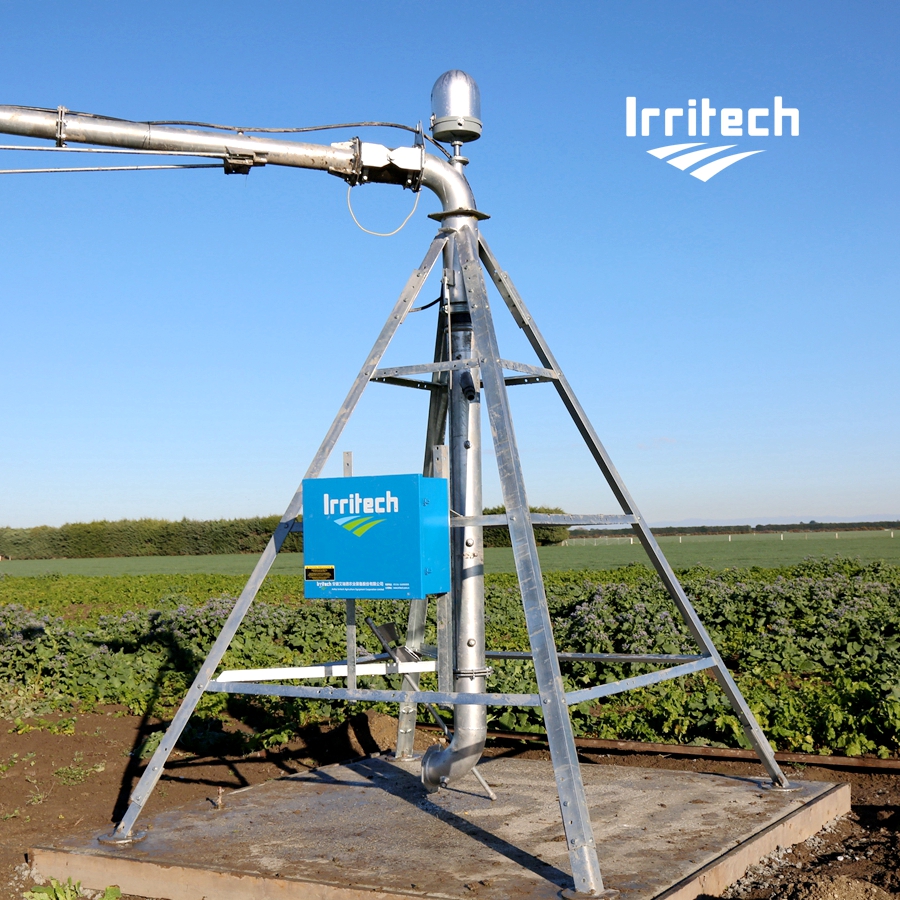

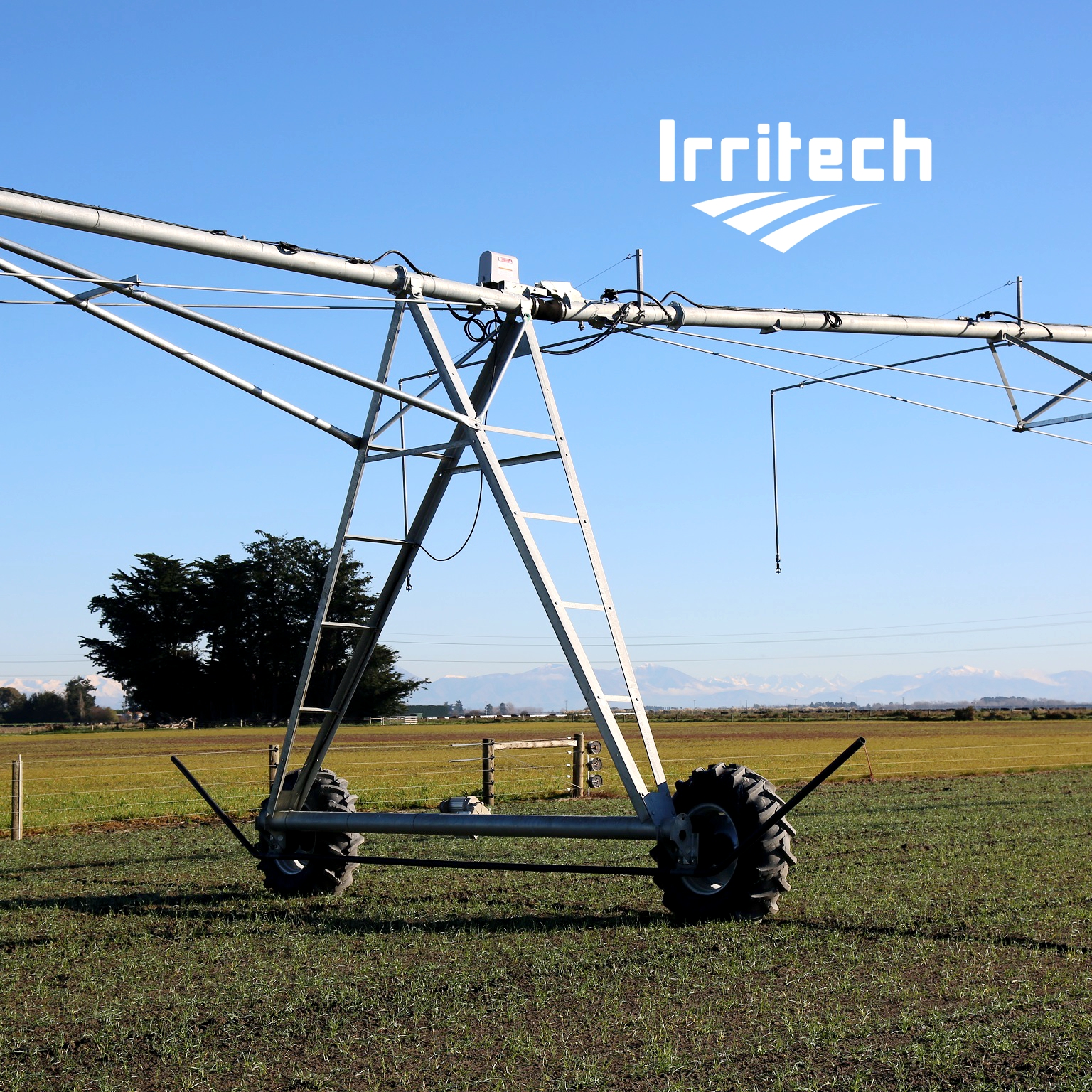

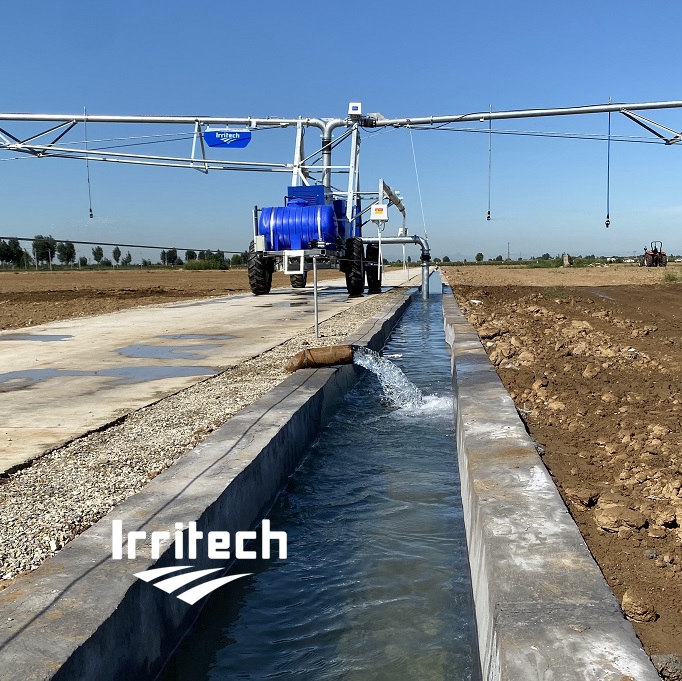

The DYP 8000 Center Pivot UMC gearbox Senninge IWOB sprinkler is a state-of-the-art irrigation solution designed for large-scale agriculture. Ideal for crops like corn, wheat, alfalfa, potatoes, vegetables, sugarcane, and fruit trees, this pivot system can efficiently cover extensive fields of up to 1200 acres. Its automatic operation not only saves time but also enhances productivity, allowing a single operator to manage up to 10,000 acres.
This innovative system achieves significant water savings of 30% to 50%, with uniform spray coverage reaching 90%. The DYP 8000 is designed to adapt to various agricultural machinery, integrating irrigation, seeding, and fertilizing into one seamless process. Built with genuine UMC motors, gearboxes, and high-quality components, it ensures durability and reliability in the field.
Specifications
| No. | Item | Span Specification |
|---|---|---|
| 1 | Center Pivot | 6 5/8”(168mm) or 8 5/8”(219mm) |
| 2 | Pipe Spec. | 5”(127mm); 6 5/8”(168mm) or 8”(203mm) |
| 3 | Span Length | 37.5m; 43.3m; 49.1m; 54.9m; or 60.7m |
| 4 | Tire Spec. | 14.9-24 or 11.2-24; including vacuum and inner tube |
| 5 | Cable Spec. | Armored cable, passed UL certification |

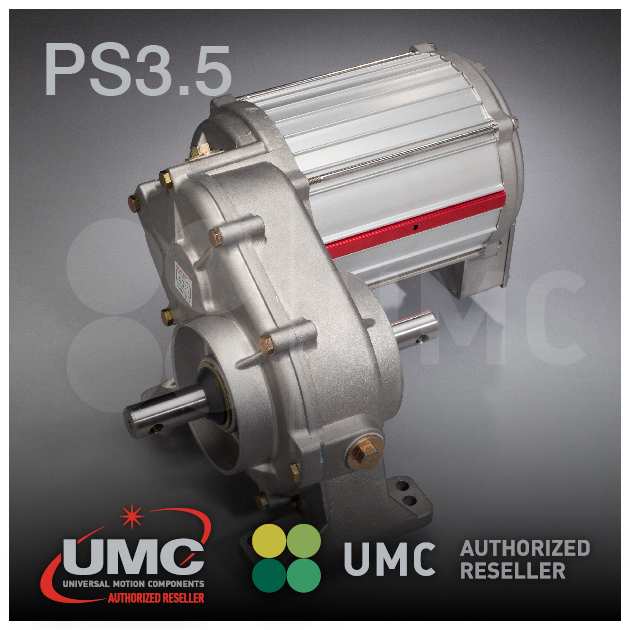

| 6 | Motor | UMC25.5:1 (1.5hp) or UMC40:1 (0.75hp) |

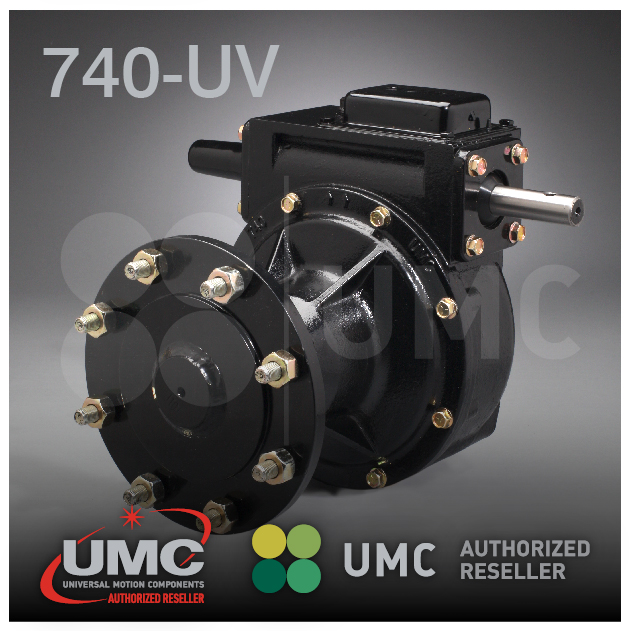

| 7 | Gear Box | UMC50:1 or UMC52:1 |
| 8 | Length of OH | 2.7m, 5.5m, 8.2m, 11m, 16.5m, 19.5m or 25m |
Additional Information
The DYP 8000 Center Pivot is equipped with Honeywell micro switches, Schneider contactors, and UL recognized terminal blocks. An innovative indicator light under the tower box provides instant visual alerts for safety, while a customizable stainless steel control panel enhances operational convenience. The system also allows QR code scanning for troubleshooting resources.
Packaging includes standard exporting wooden boxes, ensuring safe transport in 40 HQ containers via reputable shipping lines. The company offers comprehensive services, including design support, installation, and after-sales service, ensuring customer satisfaction and system performance.
