DYP 8120 Center pivot irrigatiom and lateral move irrigaiton with UMC gearbox
Inquire NowDescription

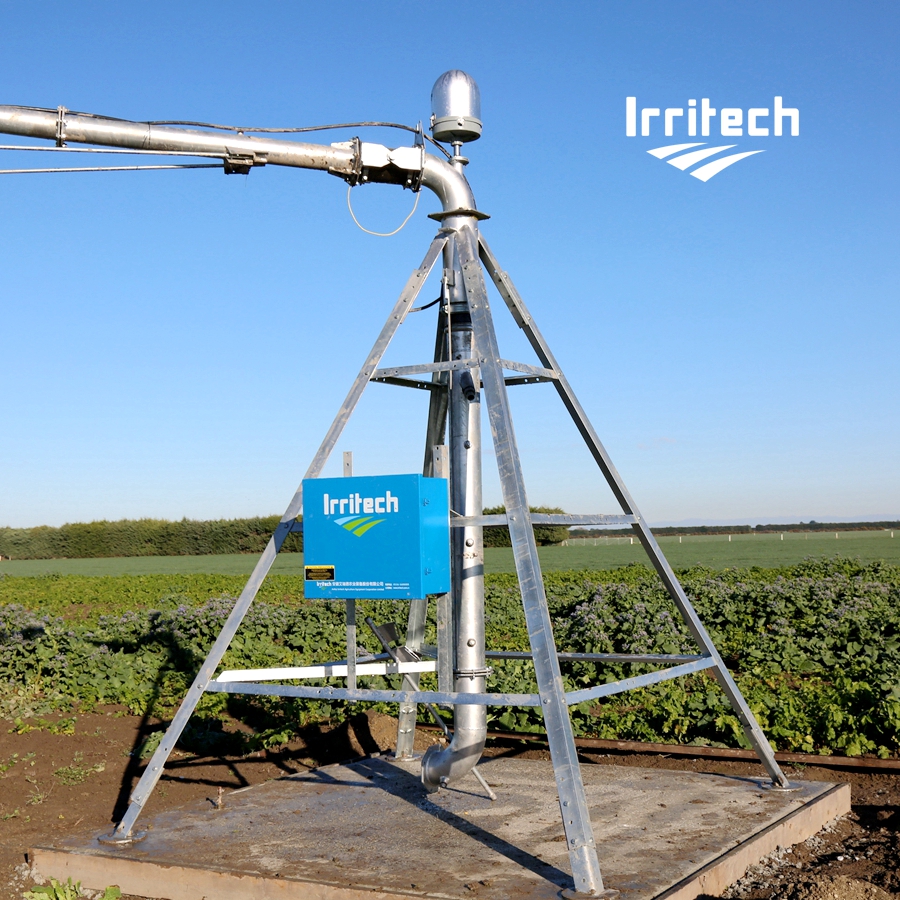

The DYP 8120 Center Pivot Irrigation system is a versatile solution designed for efficient irrigation across large agricultural fields. This advanced system, featuring a UMC gearbox, operates automatically, making it ideal for crops such as corn, wheat, alfalfa, and a variety of vegetables and fruit trees. With the ability to cover up to 1200 acres swiftly, the pivot reduces the need for extensive earthwork, relying solely on available water resources like wells or surface water.
Key benefits include:
- Maximum Coverage: Efficiently irrigates vast areas without extensive digging.
- Labor Efficiency: One operator can manage up to 10,000 acres, greatly enhancing productivity.
- Water Conservation: Reduces water consumption by 30% to 50% with a spray uniformity of 90%.
- Integrated Solutions: Can be equipped with additional agricultural machinery for seeding, fertilizing, and harvesting.
Specifications
| No. | Item | Span Specification |
|---|---|---|
| 1 | Center Pivot | 6 5/8”(168mm) or 8 5/8”(219mm) |
| 2 | Pipe Spec. | 5”(127mm); 6 5/8”(168mm) or 8”(203mm) |
| 3 | Span Length | 37.5m; 43.3; 49.1; 54.9; or 60.7 |
| 4 | Tire Spec. | 14.9-24 or 11.2-24; including Vacuum and inner tube |
| 5 | Cable Spec. | Armored Cable, passed UL certification |
| 6 | Motor | UMC25.5:1(1.5hp) or UMC40:1(0.75hp) |
| 7 | Gear Box | UMC50:1 or UMC 52:1 |
| 8 | Length of OH | 2.7m, 5.5m, 8.2m, 11m, 16.5m, 19.5m or 25m |
| Notice: 8 5/8”(219mm) pipes only suit spans in 43.3m and 49.1m | ||
Additional Information

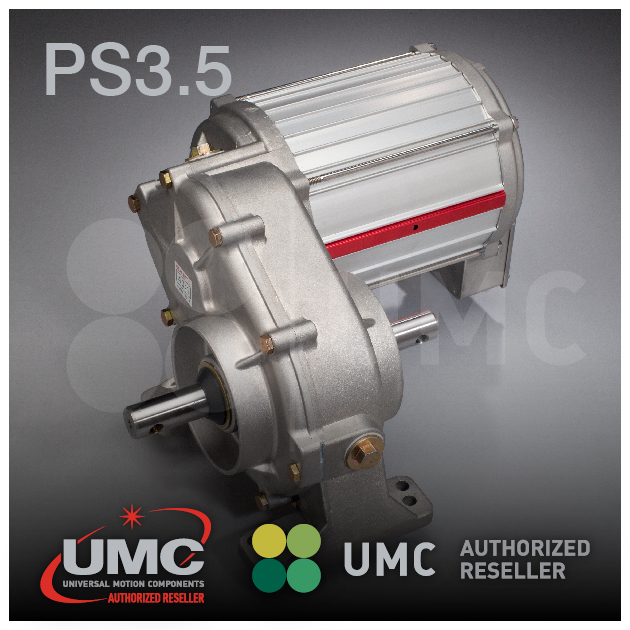

We utilize genuine UMC motors, gearboxes, couplers, and collector rings. Our systems are compatible with Komet and Senninger sprinklers and end guns. Safety features include an indicator light for circuit breaks and a customizable stainless steel control panel with an LED light for nighttime operation. Users can access troubleshooting videos via QR codes on the equipment.
Packaging & Shipping
The irrigation accessories will be securely packed in standard exporting wooden boxes and loaded into a 40 HQ container for shipping worldwide through renowned shipping lines.
Our Services
We offer professional irrigation design consultations, careful installation support, and robust after-sales service, ensuring high-quality production and the option for OEM production for prestigious irrigation brands.
