Easy-E4 Nano Programmable Logic Controllers
Inquire NowDescription

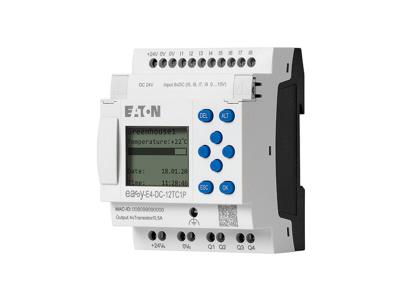

The Easy-E4 Nano Programmable Logic Controller is designed for efficient and flexible control systems in industrial and building applications. This compact controller is significantly smaller than its predecessors, the easy500, easy700, and easy800 Series, yet it offers remarkable functionality. With the capability to expand up to 11 modules and a maximum of 188 inputs/outputs, the Easy-E4 adapts to a wide range of requirements. It supports various voltage types and features an intuitive programming environment with four programming languages, including function block diagram (FBD) and structured text (ST). Enhanced with helpful function blocks, such as automatic e-mail notifications, the Easy-E4 simplifies programming for users of all skill levels.
Specifications
| Devices | Digital I/O screw terminal |
|---|---|
| Inputs Digital | 8 |
| Analog Digital | 0 |
| Outputs Transistor | 8 |
| Relay (8 A) | 0 |
| Display | without Display |
| Power Supply | 12 Vdc; 24 Vdc; 24 Vac |
| Dimensions | 2.81 x 3.54 x 2.28 inches (71.5 x 90 x 58 mm) |
| Voltage rating | 24 V |
| Terminals | Screw |
