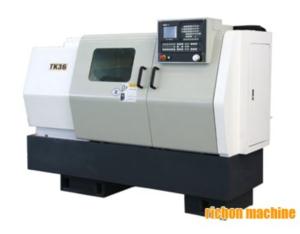

Economic Horizontal CNC lathe TK36
Inquire NowDescription
The Economic Horizontal CNC Lathe TK36 is a versatile and efficient machine designed for precision work in batch production. Controlled by advanced Guangzhou NC or KND 1000T systems, this lathe operates with two controllable axes, allowing for a wide range of operations including internal and external turning, taper turning, circular surface turning, and both inch and metric threading. With a robust 4-station turret, it can meet various cutting requirements. Safety is prioritized through features like a sliding door and multiple caution plates, making it suitable for complex contour jobs with varying specifications.
Specifications
| Item | UNIT | TK36 |
|---|---|---|
| Capacity | Max. swing over bed | Φ360 mm |
| Max. swing over slide | Φ180 mm | |
| Max. turning dia. over bed | Φ320 mm | |
| Distance between centers | 750 mm | |
| Max. turning length | 650 mm | |
| Spindle | Spindle thru hole | Φ57 mm |
| Spindle nose | D type No.6 | |
| Spindle speed | 140-3000 (stepless) r/min | |
| Chuck dia. | Φ200 mm | |
| Main motor power | 5.5 (inverter) kw | |
| Tailstock | Quill dia./movement | Φ55/120 mm |
| Taper of center | MT No.4 | |
| Carriage | X/Z-axis travel | 200/660 mm |
| Rapid traverse rate | 10/12 m/min | |
| Turret | Number of stations/type | 4/vertical |
| Tool size | 20X20 mm | |
| Power source | 12 kVA | |
| Dimension (L×W×H) | 2305X1258X1655 mm | |
| Gross weight | 1700 kg |
Additional Information
- Ideal for batch production of multi-specification work.
- Perfect for precision tasks involving complex contours.
- Safety features include a sliding door and caution plates.
