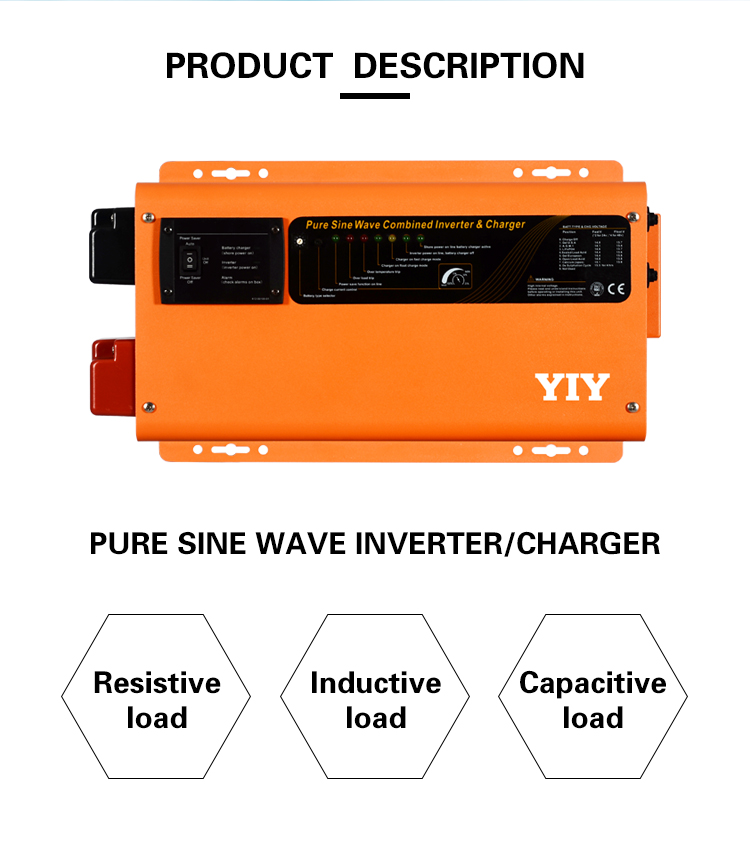

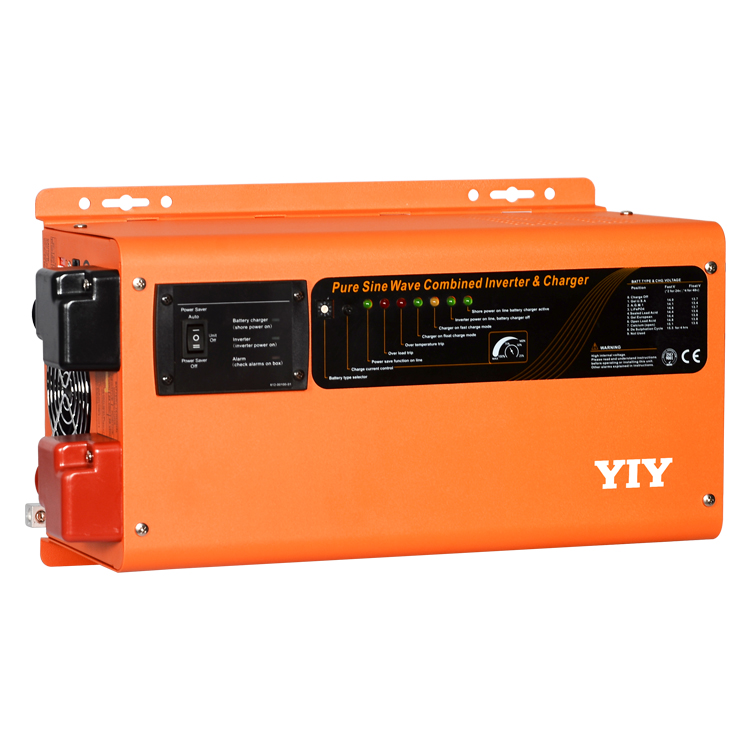

Description

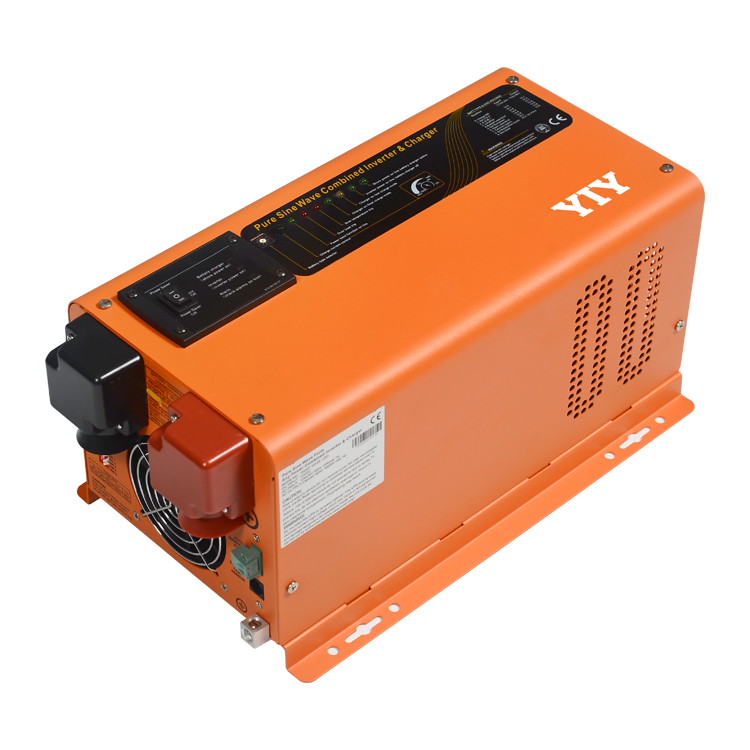

The Economic type PSW7 series inverter with AC charger, ranging from 1kW to 6kW, is engineered to provide exceptional performance and reliability. Equipped with a high overload capacity of up to 300% rated power for 20 seconds, this inverter is suitable for demanding environments. The PSW7 inverter features a pure sine wave output, ensuring compatibility with sensitive electronics and reducing power consumption through its low quiescent current and power saver mode. With an innovative design that includes multiple battery protection features, users can confidently extract maximum power from various battery types.

This inverter supports a customizable low voltage trip setting and utilizes power factor correction (PFC) to minimize energy waste. It boasts a rapid 10ms transfer time between battery and AC power, ensuring uninterrupted operation. Additional highlights include a 15-second delay before transfer upon AC resumption, a powerful charge rate of up to 90 Amp, and a 3-step intelligent battery charging system. Designed for ease of use, the PSW7 includes an LCD display, USB communication port, and a battery/AC priority switch, along with 17 alarms and warnings for troubleshooting assistance.

Specifications

Additional Information

• Power saver mode available for reduced energy use.
• Delay of 15 seconds before transfer when AC resumes.
• Allows start-up with depleted batteries.
• Supports AC loads with selectable voltage for versatility.
• Note: Specifications may vary depending on the model.
