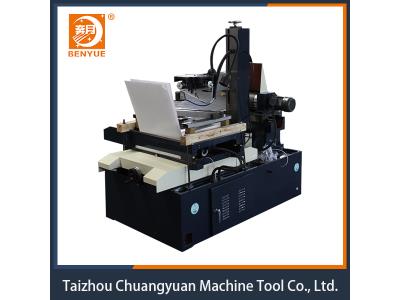

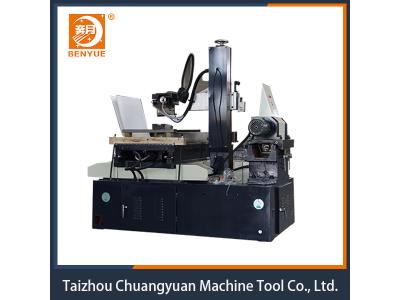

EDM wire cutting machine
Inquire NowDescription
Introducing the EDM Wire Cutting Machine, a cutting-edge solution designed for precision machining. This advanced CNC wire cut EDM machine boasts a robust construction featuring a special supporting design that ensures high strength and heavy loading capacity. The unique V-shape long span guiding rail structure lined with steel guarantees superior stability during operation, allowing for intricate and precise cuts.
The machine is equipped with a noise-reducing gearwheel driving system in the feeding wire part, which not only enhances operational efficiency but also prolongs its lifespan. With a maximum molybdenum wire diameter of ≤ 0.25 mm, the durable chroming material of the wire tube offers excellent wear resistance.
Accuracy is paramount in machining, and this EDM machine stands out with a cutting precision of less than 0.01 mm, facilitated by a high precision ball screw that ensures efficient transmission, exceptional positioning accuracy, and synchronized performance. Testing with the renowned Renishaw Laser Test System from Great Britain further reinforces the reliability of this machine.
The machine features innovative design elements, such as a beakless soft reversing mechanism that significantly extends the service life of the reversing key. The inclusion of high precision guide wheels enhances cutting accuracy, while a user-friendly control panel simplifies operation, making it accessible for operators of all skill levels.
Whether you’re tackling complex geometries or aiming for flawless finishes, the EDM Wire Cutting Machine adapts effortlessly to your needs, making it an invaluable asset in any machining environment.
Specifications
| Model | Working Table Size | Travel of Working Table | Maximum Cutting Thickness | Taper Machining | Maximum Load Weight | Optimum Surface Roughness |
|---|---|---|---|---|---|---|
| DK7725 | 400x579mm | 250x320mm | 300mm | 3-6°/80mm | 300kg | Ra<2.5um |
| DK7732 | 680x440mm | 320x400mm | 400-500mm | 3-6°/80mm | 400kg | Ra<2.5um |
| DK7735 | 740x470mm | 350x450mm | 500mm | 3-6°/80mm | 450kg | Ra<2.5um |
| DK7740 | 760x540mm | 400x500mm | 400-500mm | 3-6°/80mm | 600kg | Ra<2.5um |
| DK7745 | 920x540mm | 450x630mm | 400-500mm | 3-6°/80mm | 750kg | Ra<2.5um |
| DK7750 | 1147x655mm | 500x800mm | 600-800mm | 3-6°/80mm | 800kg | Ra<1.0um |
| DK7763 | 1380x800mm | 630x1000mm | 600-800mm | 3-6°/80mm | 2000kg | Ra<2.5um |
| DK7780 | 1600x1000mm | 800x1200mm | 400-800mm | 3-6°/80mm | 1500kg | Ra<2.5um |
| DK77100 | 1820x1180mm | 1000x1400mm | 1000mm | 3-6°/80mm | 4000kg | Ra<2.5um |
| DK77120 | 1340x2000mm | 1200x1600mm | 600-1000mm | 3-6°/80mm | 7000kg | Ra<2.5um |
Additional Information
- Taper Cutting Appliance: Optional taper cutting device offering adjustments of ±3°, ±30°.
- Control Panel: Simple and user-friendly design for easy operation.
- Movement System: Features a stainless steel surface for durability and long service life.
- Workbench: Flexible processing auxiliary equipment compatible with various shapes.
- Electric System: High-quality parts ensure low failure rates and reliable performance.
