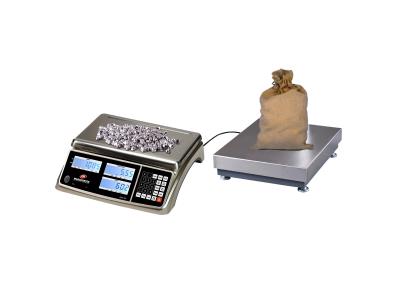

EHC-CF Counting Scale (Cap: 6kg×0.2g-60kg×2g)
Inquire NowDescription
The EHC-CF Counting Scale is a versatile and robust solution for light industrial applications, parts counting, and warehousing. With a capacity range from 6kg to 60kg, this scale offers precise weighing with a resolution of up to 0.2g. It features a user-friendly interface with 25 keys for various functions including weighing, counting, and preset tare, making it an essential tool for any organization that requires accurate inventory management. The scale boasts 256 memory slots to save piece weight and tare weight, and it allows for connectivity to an external printer for label printing. Built with a removable stainless steel weighing platter for easy cleaning and a rugged ABS housing for durability, the EHC-CF Counting Scale is designed for long-lasting performance.
Specifications
| Item | Parameters |
|---|---|
| Model | EHC-CF-6, EHC-CF-15, EHC-CF-30, EHC-CF-60 |
| Capacity (1/30,000) | 6kg x 0.2g, 15kg x 0.5g, 30kg x 1g, 60kg x 2g |
| Capacity (1/60,000) | 6kg x 0.1g, 15kg x 0.2g, 30kg x 0.5g, 50kg x 1g |
| Units of Measure | kg, lb |
| Display | 3 windows, 6 digits/window, 0.73″ (18.5mm) high, 7 segments backlit LCD display |
| Power | 12V DC 500mA adapter or 6V 4Ah lead-acid rechargeable battery |
| Serial Port | RS232, USB |
| Operation Temp | -10℃ to 40℃ (14℉ to 104℉) |
| Platform size | 335x225mm / 13.19″x8.86″ |
| Packing size | 950x450x520mm / 4pcs |
| Shipping Weight | G.W.: 25kg, N.W.: 23kg |
| Approvals | CE and WEEE directive, UL/CE/BS/VI energy approved power adapter |
| Options | RS232 cable, USB cable, ARGOX OS-2130D printer |
Additional Information
This scale is equipped with adjustable feet and a leveling bubble for quick setup and stability, making it ideal for various environments. The heavy-duty X-shaped cast aluminum load cell bracket ensures durability, while the Haigh Precision Single Aluminum load cell guarantees accuracy.
