EK6 12kV High voltage switchgear electronic earth switch grounding switch
Inquire NowDescription
The EK6 12kV High Voltage Switchgear Electronic Earth Switch is an essential component for enhancing safety in high voltage electrical systems. Designed with a focus on reliability and performance, this indoor earthing switch utilizes resin insulators to support live parts made of high-quality silver-plated electrolytic copper (99.9%). The blades are directly connected to the drive shaft, ensuring seamless operation and excellent responsiveness.
Engineered to meet stringent requirements, the contact elements of the EK6 are overdimensioned, guaranteeing high contact pressure between blades and contacts. This design minimizes ohmic resistance at the contact surface while significantly reducing metal wear-off throughout the product’s lifecycle. Built to endure thermal and mechanical stresses during short-circuit conditions, this grounding switch promises robust performance and longevity.

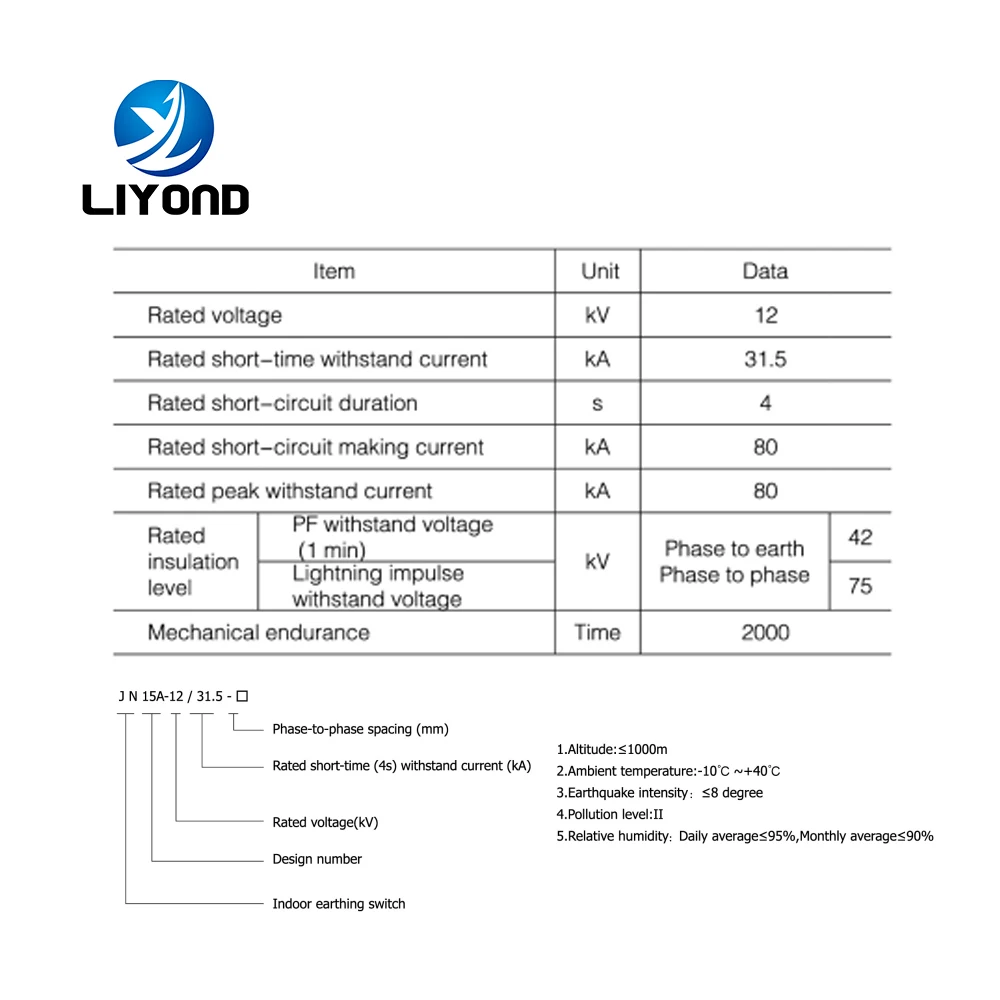

Specifications
| Parameter | Details |
|---|---|
| Model | JN15A-12/31.5 |
| Voltage Rating | 12 kV |
| Insulator Material | Resin |
| Live Parts Material | Silver-plated electrolytic copper (99.9%) |
| Design | Directly connected blades to drive shaft |
| Contact Elements | Overdimensioned for reduced ohmic resistance |
| Application | Indoor high voltage switchgear |
Additional Information
- Robust design to withstand short-circuit conditions
- Minimized maintenance requirements due to reduced metal wear-off
- Ideal for enhancing safety in high voltage electrical systems
