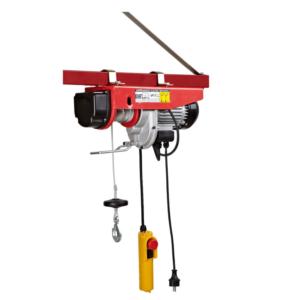

Electric cable hoist with GS CE RoHS certifications
Inquire NowDescription
The Electric Cable Hoist is a versatile lifting solution designed for various applications, including factories, workshops, homes, warehouses, restaurants, stores, and even for decorative purposes. This powerful hoist operates on a 220V supply and allows you to lift or lower loads effortlessly with just the push of a button. Engineered with an automatic brake feature and double limit for enhanced safety, it ensures reliable performance every time.
Specifications
| Attribute | Details |
|---|---|
| Rated Voltage | 220V, 50Hz |
| Rated Capacity | 400kg (single line); 800kg (double lines) |
| Lifting Height | 12m (single line); 6m (double lines) |
| Lifting Speed | 8m/min (single line); 4m/min (double lines) |
| Power | 1350W |
| Cable Length | 12.3m |
| Cable Diameter | 5.0mm (anti-torsion) |
| Duty Circle | S3 20% 10min |
| Resister Cable | ≥2000kg |
Additional Information
- GS CE RoHS certifications ensure compliance with safety and environmental standards.
