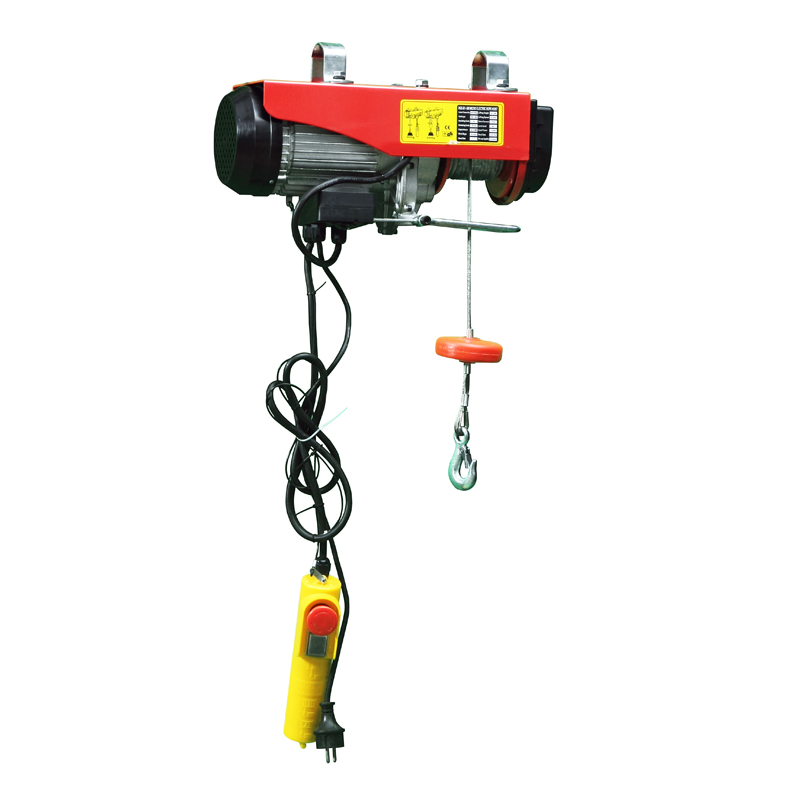

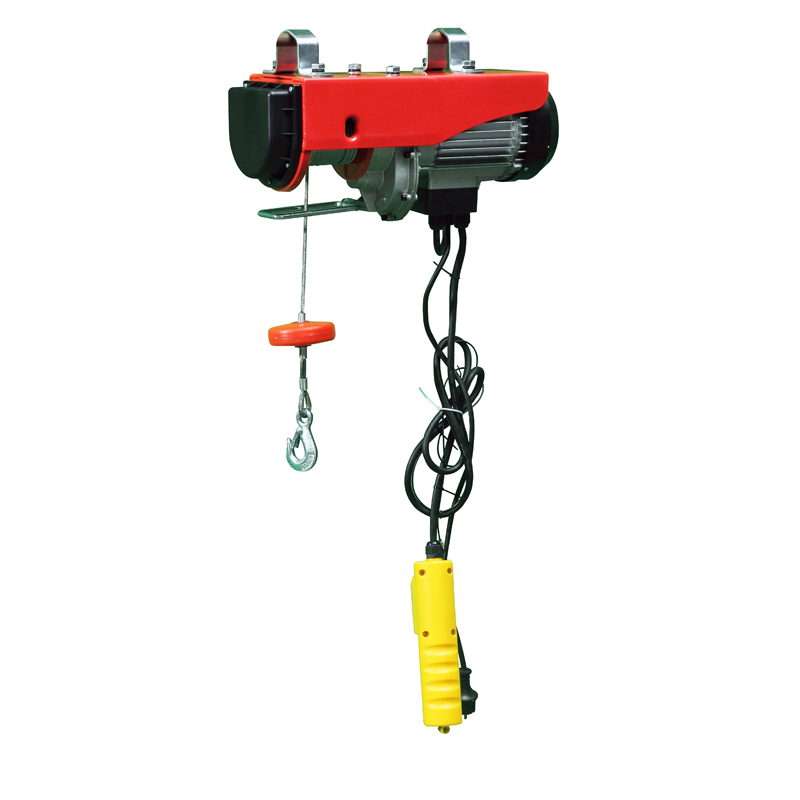

electric hoist 500kgs with up and down limit device
Inquire NowDescription
The electric hoist is a robust and reliable lifting solution with a remarkable capacity of 500 kg. Designed with user safety and efficiency in mind, it incorporates an up and down limit device that ensures precise control during operation. With features such as an emergency stop switch and a reinforced breaking switch, this hoist guarantees safe lifting under various conditions. The protection class reaches IP54, providing dust and water resistance, while the integrated thermal protection device safeguards against overheating. This hoist is compliant with CE, GS, EMC, and RoHS standards, making it a trustworthy choice for both industrial and personal applications.
Specifications
| Model | Usage Mode | Rated Voltage (V) | Input Power (W) | Rated Capacity (kg) | Lifting Speed (m/min) | Lifting Height (m) | Qty/CTN | Packing Size (mm) | G.W./N.W (kg) |
|---|---|---|---|---|---|---|---|---|---|
| HGS-B1-500D | Single Hook | AC220/230/240V 50/60Hz | 1020 | 500 | 5 | 6 | 1 | 520 x 475 x 165 | 36 / 34 |
Additional Information
- Emergency stop switch for enhanced safety.
- Reinforced breaking switch with position limit for secure operation.
- Thermal protection device to prevent overheating.
- Protected against dust and water (IP54 rating).
