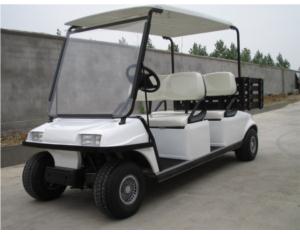

OEM ODM Electric Sightseeing Vehicle /GLT1061(with rear box)
Complete the form below to receive a response within 24 hours.
Description
The Electric Sightseeing Vehicle GLT1061 is an innovative and eco-friendly transportation solution, crafted to offer comfort and convenience for up to six passengers. Designed with a spacious interior and robust construction, this vehicle is perfect for sightseeing tours, shuttles, and other outdoor activities. It features an aluminum framework combined with a fiberglass body, ensuring durability while maintaining a lightweight profile.
Equipped with a powerful 3kW motor and a reliable Trojan battery, this vehicle promises an impressive distance of up to 80km on a single charge, making it ideal for extended use. Comfort is prioritized with high elasticity waterproof seats, complemented by anti-skip rubber flooring for safety. The GLT1061 combines performance and style, ensuring an enjoyable ride for passengers and drivers alike.
Specifications
| Attribute | Details |
|---|---|
| Rated Passengers | 6 persons |
| Dimensions (L x W x H) | 3,450 x 1,220 x 1,820 mm |
| Wheelbase | 2,460 mm |
| Ground Clearance | 160 mm |
| Net Weight | 670 kg |
| Distance per Charge (Full Load) | 80 km |
| Brake Distance | 4.5 m |
| Max. Running Speed | 25 km/h |
| Min. Turning Diameter | 9.6 m |
| Max. Climbing Capability (Full Load) | 20% |
| Body Material | Aluminium framework + Fiberglass body |
| Storage Battery | Trojan battery 48V, 225Ah |
| Motor | 3 kW, 48V |
| Charger | 48V, 25A |
| Controller | Curtis |
| Steering System | Self compensating single reduction, rack and pinion |
| Wheel Size | Kenda hole-in-1 18×8.5-8 |
| Seats | High elasticity waterproof big seats |
| Floor | Anti-skip rubber flooring |
| Conveyance (Qty/40′ FCL) | 6 units |
| Conveyance (Qty/40′ HQ) | 6 units |
Additional Information
- Perfect for tourism, parks, and university campuses.
- Environmentally friendly and low noise operation.
