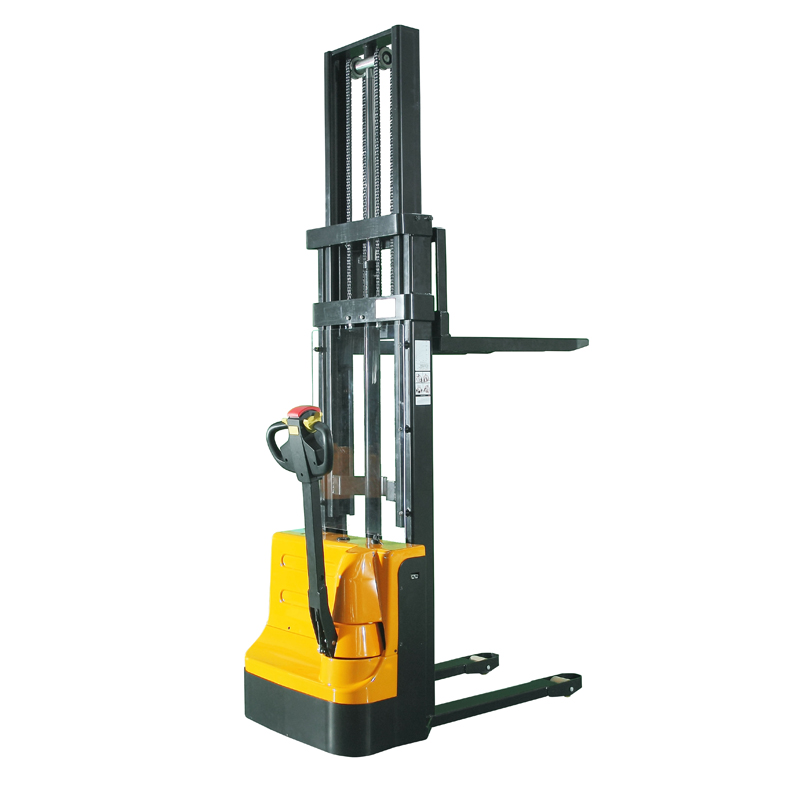

The Electric Stacker with a capacity of 1600kg is designed for efficiency and versatility in material handling. This robust stacker features a multi-function controller handle equipped with a speed control button, lifting/lowering switch, alarm, and an anti-collision button for enhanced safety. Powered by two 12V lead-acid batteries, it promises long working hours, making it ideal for busy environments.
Safety is paramount with the inclusion of an emergency button and anti-collision features, ensuring secure operation for the user. Its compact design boasts a turning radius of just 1360mm, enabling easy navigation in tight spaces. The stacker is user-friendly and requires minimal maintenance, making it a reliable choice for any warehouse or industrial setting.
Specifications
Item/Model
Unit
KX-CDD-B-10
KX-CDD-B-16
Rated Load (Q)
kg
1000
1600
Load Center (C)
mm
1600/2000/2500/3000
Mast Lowest Height (h1)
mm
2060/2560/3060/3560
Fork Lowest Height (h3)
mm
1755
Fork Length (L1)
mm
1160
Overall Width (B)
mm
516
Front Wheels Track (B2)
mm
695
Turning Radius (Wa)
mm
4.5/4.0
Lifting Speed No-load/Full-load
mm/s
130/150
Lifting Motor
V/A
2*12/85
Driving Control Mode
{
