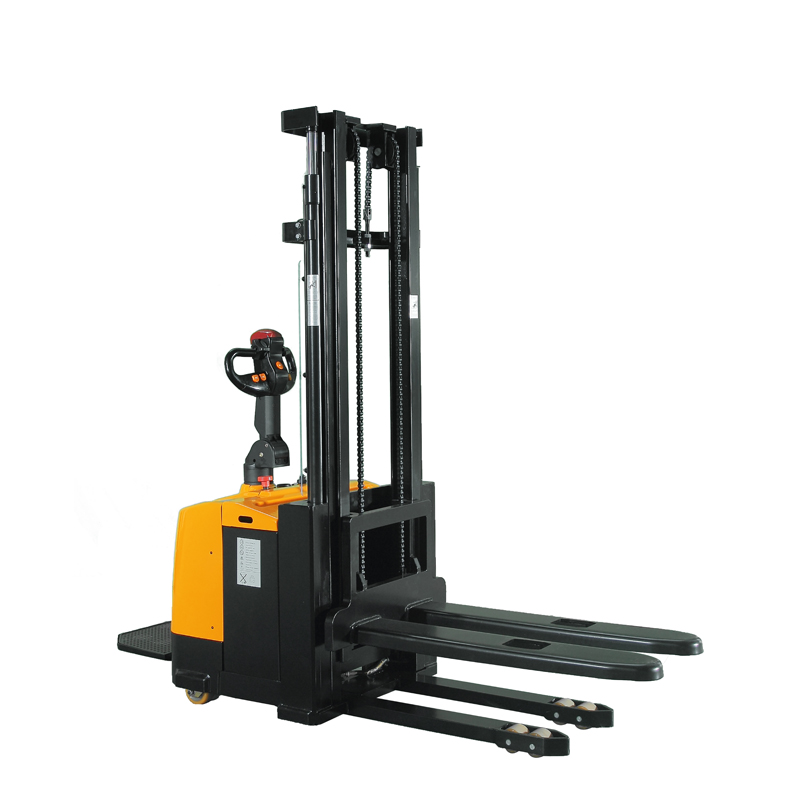

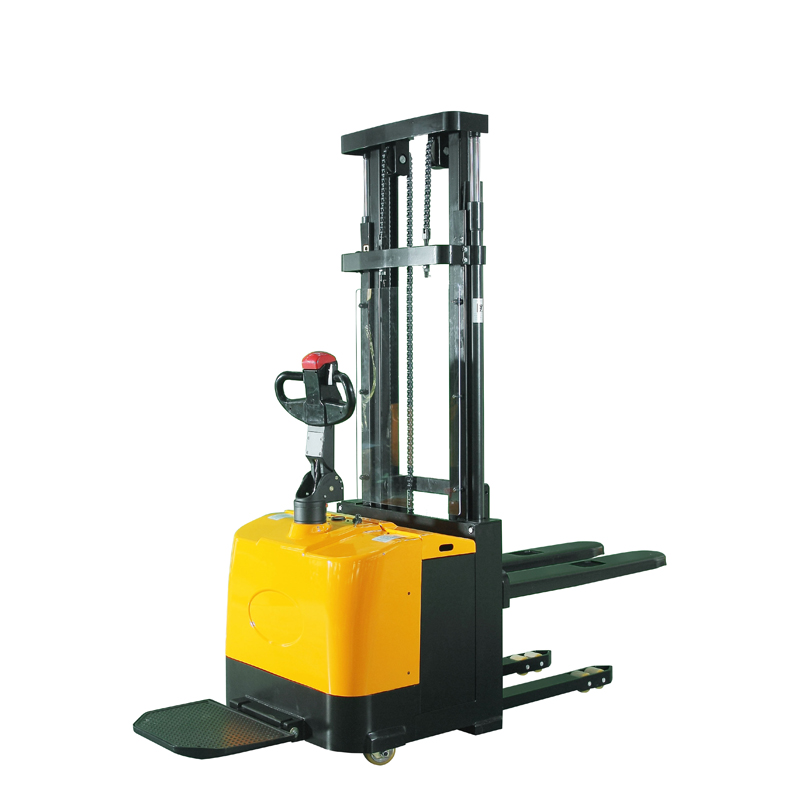

Electric Stacker 2000kg
Inquire NowDescription
The Electric Stacker 2000kg is a robust and versatile material handling solution designed for efficiency and safety in warehouse operations. Equipped with a multi-function controller handle, it offers a speed control button, lifting/lowering switch, alarm, and an anti-collision button, ensuring seamless operation. The stacker is powered by two durable 24V/210Ah lead-acid batteries, providing extended working hours. With a high torque 1.2 kW driving motor and a powerful 2.2 kW lifting motor, it can effortlessly lift loads up to 2000 kg. Safety features include a polycarbonate board to protect the user from lift chains, an emergency button, and an anti-collision button, making it a reliable choice for operators. Additionally, its compact turning radius of 1588 mm allows for maneuverability in tight spaces.
Specifications
| Characteristic | Unit | KX-CDD-H-20 | KX-CDD-H-25 |
|---|---|---|---|
| Rated load Q | kg | 2000 | 2500 |
| Load center C | mm | 500 | 500 |
| Lifting height h | Mm | 1600/2000/2500/3000 | 1600/2000/2500/3000 |
| Mast lowest height h1 | Mm | 2068/1568/1818/2068 | 2068/1568/1818/2068 |
| Mast max. height h2 | Mm | 2068/2568/3068/3568 | 2068/2568/3068/3568 |
| Fork length L | Mm | 1150 | 1150 |
| Fork width B1 | Mm | 550/685 | 550/685 |
| Overall width B | Mm | 845 | 845 |
| Overall length (include pedal) L1 | Mm | 2480 | 2480 |
| Turning radius Wa | Mm | 1588 | 1588 |
| Wheel material | PU | PU | |
| Front wheel | mm | φ80*70 | φ80*70 |
| Rear wheel | mm | φ100*50 | φ100*50 |
| Driving wheel | mm | φ250*75 | φ250*75 |
Additional Information
- Driving speed (no-load/full-load): 4.5/3.5 km/h
- Lifting speed (no-load/full-load): 120/100 mm/s
- Lowering speed (no-load/full-load): 130/150 mm/s
- Climbing gradient (no-load/full-load): 7/5%
- Brake mode: Electromagnetic brake
