electrique shutter door making machine roller shutter door slide machine

Inquire Now
Product Description

The electric shutter door making machine is an advanced roller shutter door slide machine designed for efficient and precise production of metal roller shutters. This robust roll forming machine is engineered to handle metal and iron sheets with ease, ensuring high-quality output with every cycle. Equipped with a powerful main motor and hydraulic system, it guarantees efficiency and reliability in manufacturing.

Machine Components of Garage Door Roll Forming Machine

Specifications

Parameter Details
Main Motor Power 3kw, 3 phase
Hydraulic Motor Power 3kw
Hydraulic Pressure 10-12MPa
Voltage 380V /3phase/ 50 HZ (or as your requirement)
Control System PLC Delta Inverter
Main Frame 300mm H-Beam
Backboard Thickness 14mm
Chain Size 20mm
Feeding Material Color steel coils
Feeding Thickness 0.3-1.2mm
Productivity 8-12m/min
Roll Station 11
Roller Diameter 70mm
Roller Material 45# steel
Cutter Material Cr12, quenched
Cr-Plating Size 0.05mm
Overall Size 3000×800×1000mm
Total Weight 2T
Components Manual Uncoiler, Guiding Platform, Coil Strip Leveler, Main Machine of Roll Forming, Electric-Motor, Cutting Device, Hydraulic Station, PLC Control, Supporter Table
Additional Information

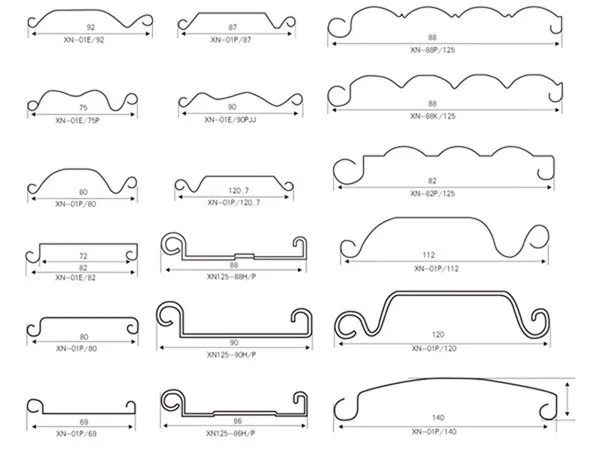

Some pictures of the garage door roll forming machine for your reference:

Electric Shutter Door Making Machine
