electrique shutter door making machine roller shutter door slide machine

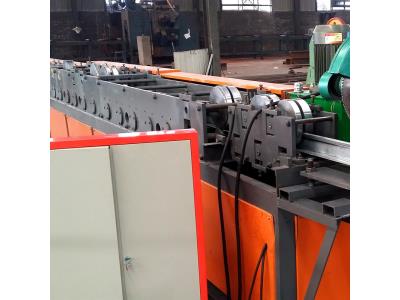

Inquire NowThe electric shutter door making machine is a state-of-the-art roller shutter door slide machine designed for producing high-quality metal and iron sheet doors. This innovative roll forming machine combines efficiency and precision, making it an essential tool for manufacturers in the garage door industry. With robust construction and advanced technology, it ensures durability and long-term performance. The machine features a user-friendly interface and is equipped with a PLC Delta inverter control system, allowing for seamless operation and superior output.
| Attribute | Details |
|---|---|
| Main Motor Power | 3kw, 3 phase |
| Hydraulic Motor Power | 3kw |
| Hydraulic Pressure | 10-12MPa |
| Voltage | 380V /3phase/ 50 HZ (customizable) |
| Control System | PLC Delta Inverter |
| Main Frame | 300mm H-Beam |
| Backboard Thickness | 14mm |
| Chain Size | 20mm |
| Feeding Material | Color steel coils |
| Feeding Thickness | 0.3-1.2mm |
| Productivity | 8-12m/min |
| Roll Station | 11 |
| Roller Diameter | 70mm |
| Roller Material | 45# steel |
| Cutter Material | Cr12, quenched |
| Cr-Plating Size | 0.05mm |
| Overall Size | 3000×800×1000mm |
| Total Weight | 2T |
| Components |
Manual Uncoiler: 1 set Guiding Platform: 1 set Coil Strip Leveler: 1 set Main Machine of Roll Forming: 1 set Electric-Motor: 1 set Cutting Device: 1 set Hydraulic Station: 1 set PLC Control: 1 set Supporter Table: 1 set |
For optimal performance, ensure regular maintenance of the machine and follow operational guidelines as provided in the manual. This ensures longevity and efficient production capabilities.
