Description

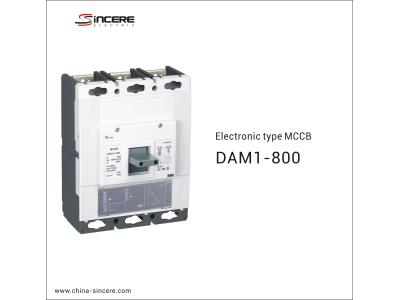

The DAM1 series electronic type Moulded Case Circuit Breaker (MCCB) is designed for reliable performance at 400V/415V. Unlike traditional thermal-magnetic breakers, this high-quality MCCB employs an electronic over-current release mechanism, which enhances its precision and responsiveness. This advanced design ensures that the breaker can effectively manage overcurrent conditions while safeguarding electrical systems.

Utilizing a microprocessor for control, the MCCB guarantees effective operation even under adverse conditions. It allows for wide-ranging customization, including rated and instant opening current adjustments, providing flexibility for various applications. Importantly, this electronic circuit breaker remains unaffected by ambient temperature variations, ensuring consistent performance.

Key Advantages:

• Wide current range from 100A to 1600A (AC)
• Compact dimensions for versatile installation
• Adjustable thermal setting (40-100%)
• Adjustable magnetic setting (1.5-12 times)
• Includes a push-to-trip button and separate main and arcing contacts
• Compatible with a wide range of accessories

Specifications

Photo	Model	Code	Icu (KA)	Ics (KA)	Rated Current -In	Ui(V)	Ue(V)	Pole	Uimp(V)
	DAM1-250	N	35	26.25	100-125 – 160(180) – 200(225) – 250(320)A	750V	400/415V	3P /4P	8000
		S	50	37.5
		H	65	48.75
		G	85	51
	DAM1-630(400)	N	35	26.25	250 – 315 (350)- 400 – 500 – 630A	750V	400/415V	3P /4P	8000
		S	50	37.5
		H	70	52.5
		G	85	52.5
	DAM1-800	N	35	35	400 – 500 – 630 (700)- 800 -1000A	750V	400/415V	3P /4P	8000
		S	50	37.5
		H	70	52.5
		G	85	52.5
	DAM1-1600	S	65	50	800 -1000 – 1250 – 1600A	750V	400V	3P / 4P	8000
		H	85	50
		G	100	50

Additional Information

Working Principle: The MCCB operates through manual or electric closing of the main contact, which is then locked into position by a free release mechanism. The overcurrent trip coil and thermal trip element are connected in series with the main circuit for effective overload protection.

Auxiliary Devices:

• Power circuit breaker
• Mounting panel (base) for plug-in/draw-out option
• Side panels for draw-out option
• Phase separators
• Connecting busbars
• Plug-in contacts
• Blocking unit
• Terminal cover
• Casing cover
• Top cover
• Rotary handle operating mechanism
• Electrical operating mechanism
• Shunt release/under voltage release
• Auxiliary/Alarm contacts
