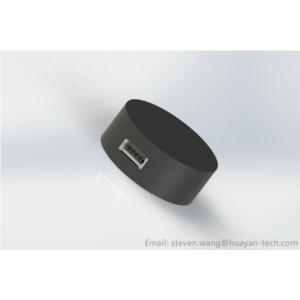

EN36 Magnetic Incremental Encoder
Inquire NowDescription
The EN36 Magnetic Incremental Encoder is a precision instrument designed to provide reliable position feedback in various applications. It features both single and dual channel outputs, making it versatile for different setups. With output pulses of 8 and 12 PPR, this encoder ensures accurate motion tracking. The device operates on a supply voltage of 5V and is capable of functioning in a wide temperature range from -20°C to 80°C, making it suitable for harsh environments. Its straightforward pin connection system allows for easy installation and integration into existing systems.
Specifications
| Attribute | Details |
|---|---|
| Number of Channels | Single/Dual Channels |
| Output Pulses | 8, 12 PPR |
| Supply Voltage (Vcc) | 5V |
| Operating Temperature Range | -20°C to 80°C |
| Connections | PIN1: Vcc PIN2: GND PIN3: Channel A Output PIN4: Channel B Output PIN5: EMPTY |
Additional Information
For further inquiries, please reach out to the sales manager.
